What is the Mitsubishi Electric FX1N-422-BD?

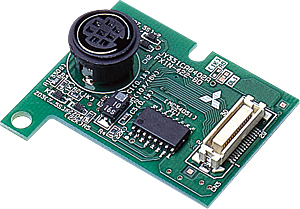

The Mitsubishi Electric FX1N-422-BD is a data link/Communication in the MELSEC-F (FX) Series. Peripheral equipment communication. Mitsubishi Electric has discontinued it (2015/12 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-F (FX) Series
CategoryData link/Communication
Sales status2015/12 Discontinued (Mitsubishi Electric)
OutlinePeripheral equipment communication

Specifications

Applicable PLCFX1S, FX1N
Number of occupied I/O points0 point (This number is not related to the maximum number of input/output points of the PLC.)
Communication methodHalf-duplex, bidirectional communication
Communication speed9600/19200 (bps) (Only the FX1N supports 19200 bps)
Communication formatProgramming communication
Transmission standardConforming to RS-422
Transmission distance50 m maximum
Connection method8-pin MINI-DIN (female)
Isolation methodNot insulated

Power supply specifications

Power supply5 V DC 60 mA (internal power supply from PLC main unit)

Specifications

Ambient temperature0 to 55°C (32 to 131 °F) when operating and -20 to 70°C (-4 to 158 °F) when stored
Ambient humidity35 to 85%RH (no condensation) when operating
Vibration resistance: Installed on DIN rail: Frequency: 10 to 57 HzHalf amplitude: 0.035 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Installed on DIN rail: Frequency: 57 to 150 HzAcceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 10 to 57 HzHalf amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 57 to 150 HzAcceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Shock resistance147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z
Noise resistanceBy noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz
Dielectric withstand voltageNon-isolated between communication line and PLC main unit (Do not perform a withstand voltage test.)
Insulation resistanceNon-isolated between communication line and PLC main unit (Do not perform an insulation resistance test.)
Working atmosphereFree from corrosive or flammable gas and excessive conductive dusts
Working altitude2000 m or less The PLC cannot be used at a pressure higher than the atmospheric pressure to avoid damage.
