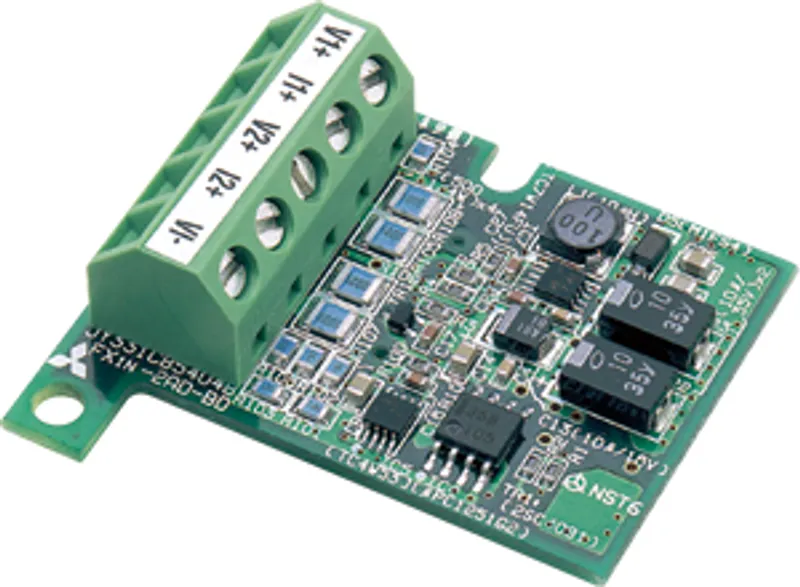

FX1N-2AD-BD Mitsubishi MELSEC-F (FX) Series Analog

MPN: FX1N-2AD-BD · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original FX1N-2AD-BD (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC-F (FX) Series – Analog
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the FX1N-2AD-BD now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the FX1N-2AD-BD, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can FX1N-2AD-BD be shipped?

FX1N-2AD-BD is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX1N-2AD-BD in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX1N-2AD-BD and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX1N-2AD-BD, subject to availability and destination.

The Mitsubishi Electric FX1N-2AD-BD is a analog in the MELSEC-F (FX) Series. Analog input: 2 ch. Mitsubishi Electric has discontinued it (2015/12 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-F (FX) Series
Category	Analog
Sales status	2015/12 Discontinued (Mitsubishi Electric)
Outline	Analog input: 2 ch

Specifications

Applicable PLC	FX1S (V2.0 or later), FX1N (V2.0 or later)
Number of occupied I/O points	0 point (This number is not related to the maximum number of input/output points of the PLC.)
Analog input: Analog input range: Voltage input	0 V to 10 V DC(Input resistance 300 kΩ)
Analog input: Analog input range: Current input	4 mA to 20 mA DC (Input resistance 250 Ω)
Analog input: Number of input channels	2 channels
Analog input: Absolute maximum input: Voltage input	-0.5 V, +15 V
Analog input: Absolute maximum input: Current input	-2 mA +60 mA
Analog input: Input characteristics	• Voltage input and current input can be used together. • The input characteristics cannot be adjusted.
Analog input: Digital output: Voltage input	12 bits, binary
Analog input: Digital output: Current input	11 bits, binary
Analog input: Resolution: Voltage input	2.5 mV (10 V × 1/4000)
Analog input: Resolution: Current input	8 μA (16 mA × 1/2000)
Analog input: Total accuracy: Voltage input	±1% (±0.1 V) for 10 V full scale
Analog input: Total accuracy: Current input	±1% (±0.16 mA) for 16 mA full scale
Analog input: A/D conversion time	Approx. 30 ms (15 ms × 2 channels) The D8112 or D8113 current value is updated with the END instruction. The channel 1 conversion starts with the END instruction and ends in approx. 15 ms. When the next END instruction is issued, the D8112 or D8113 current value is updated and the A/D conversion of the other channel starts. The A/D conversion of each channel is conducted alternately. The digital v
Analog input: Isolation method	The channels between the analog input area and PLC are non-isolation.

Power supply specifications

Power supply

PLC internal power

Specifications

Ambient temperature	0 to 55°C (32 to 131 °F) when operating and -20 to 70°C (-4 to 158 °F) when stored
Ambient humidity	35 to 85%RH (no condensation) when operating
Vibration resistance: Installed on DIN rail: Frequency: 10 to 57 Hz	Half amplitude: 0.035 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Installed on DIN rail: Frequency: 57 to 150 Hz	Acceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 10 to 57 Hz	Half amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 57 to 150 Hz	Acceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Shock resistance	147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z
Noise resistance	By noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz
Dielectric withstand voltage	The analog input area is not insulated from the PLC. (Do not perform a withstand voltage test.)
Insulation resistance	The analog input area is not insulated from the PLC. (Do not perform an insulation resistance test.)
Working atmosphere	Free from corrosive or flammable gas and excessive conductive dusts
Working altitude	2000 m or less The PLC cannot be used at a pressure higher than the atmospheric pressure to avoid damage.
