FX-485PC-IF-SET Mitsubishi MELSEC-F (FX) Series Data link/Communication

MPN: FX-485PC-IF-SET · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original FX-485PC-IF-SET (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC-F (FX) Series – Data link/Communication
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the FX-485PC-IF-SET now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the FX-485PC-IF-SET, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can FX-485PC-IF-SET be shipped?

FX-485PC-IF-SET is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX-485PC-IF-SET in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX-485PC-IF-SET and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX-485PC-IF-SET, subject to availability and destination.

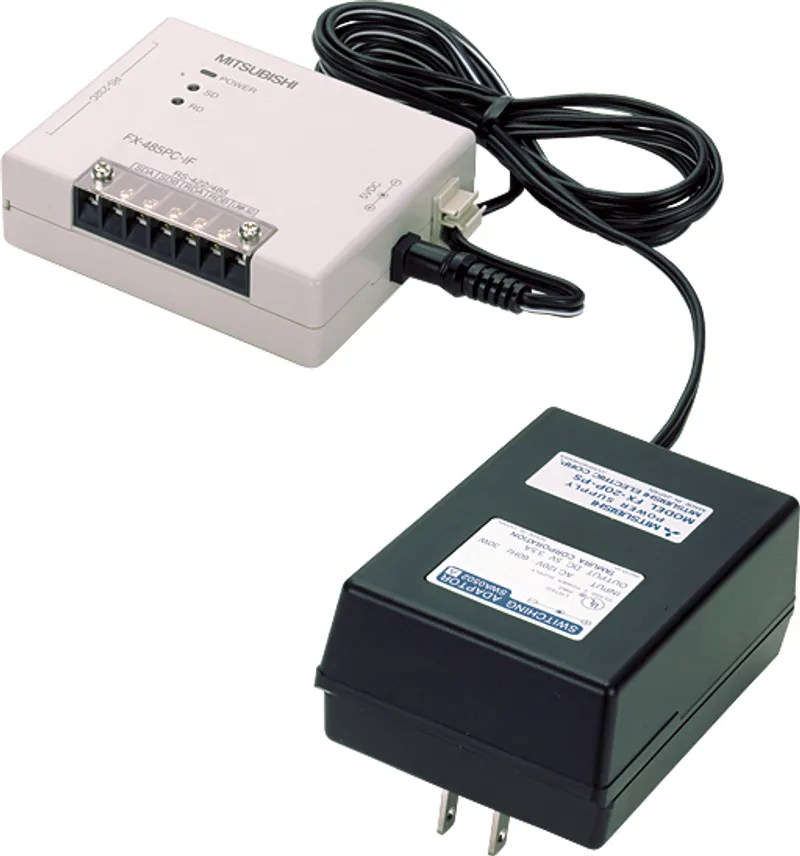

The Mitsubishi Electric FX-485PC-IF-SET is a data link/Communication in the MELSEC-F (FX) Series. RS-485 communication. Mitsubishi Electric has discontinued it (2020/03 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-F (FX) Series
Category	Data link/Communication
Sales status	2020/03 Discontinued (Mitsubishi Electric)
Outline	RS-485 communication

Specifications

Applicable PLC	FX1S, FX3S, FX1N, FX3G, FX2N, FX3U, FX1NC, FX3GC, FX2NC, FX3UC
Number of occupied I/O points	0 point (This number is not related to the maximum number of input/output points of the PLC.)
Mass (weight)	0.3 kg
Communication method	Corrected to full-duplex communication method
Communication speed: Computer link	300/600/1200/2400/4800/9600/19200 (bps)
Communication format	Computer link (Dedicated protocol formats 1, Dedicated protocol formats 4)
Transmission standard	Conforming to RS-485/RS-422
Transmission distance: RS-232C	15 m maximum
Transmission distance: RS-485, RS-422	Total extension distance: 500 m or less
Connection method: RS-232C interface	25-pin D-SUB connector (male)
Connection method: RS-485/422 interface	5-pole terminal block
LED	RD, SD, POWER
Isolation method	Photocoupler insulation and transformer insulation between computer and communication signal

Power supply specifications

Power supply

5 V DC ±5%, max. 260 mA (power supplied from FX-20P-PS)

Specifications

Ambient temperature	0 to 55°C (32 to 131°F) when operating and -20 to 70°C (-4 to 158°F) when stored
Ambient humidity	35 to 85%RH (no condensation) when operating
Vibration resistance: Installed on DIN rail: Frequency: 10 to 57 Hz	Half amplitude: 0.035 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction) *The above values are the vibration resistance for the connected PLC.
Vibration resistance: Installed on DIN rail: Frequency: 57 to 150 Hz	Acceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction) *The above values are the vibration resistance for the connected PLC.
Vibration resistance: Direct installing: Frequency: 10 to 57 Hz	Half amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction) * The above values are the vibration resistance for the connected PLC.
Vibration resistance: Direct installing: Frequency: 57 to 150 Hz	Acceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction) *The above values are the vibration resistance for the connected PLC.
Shock resistance	147 m/s 2 Acceleration, Action time: 11ms, 3 times by half-sine pulse in each direction X, Y, and Z *The above values are the impact resistance for the connected PLC.
Noise resistance	By noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz
Dielectric withstand voltage	Between batch of all terminals and case: 500 V AC for 1 min
Insulation resistance	Between batch of all terminals and case: 5 MΩ or higher by 500 V DC insulation resistance tester
Grounding	Class D grounding (grounding resistance: 100 Ω or less) (Common grounding with a heavy electrical system is not allowed) Ground the PLC independently or jointly.
Working atmosphere	Free from corrosive or flammable gas and excessive conductive dusts
Working altitude	2000 m or less Do not use the PLC under pressure higher than the atmospheric pressure. Doing so may damage the PLC.
