Mitsubishi Electric FX-16EX-A1-TB

Mitsubishi MELSEC iQ-F Series Option

MPN
FX-16EX-A1-TB
Price and lead time confirmed within 1 business day

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original FX-16EX-A1-TB (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

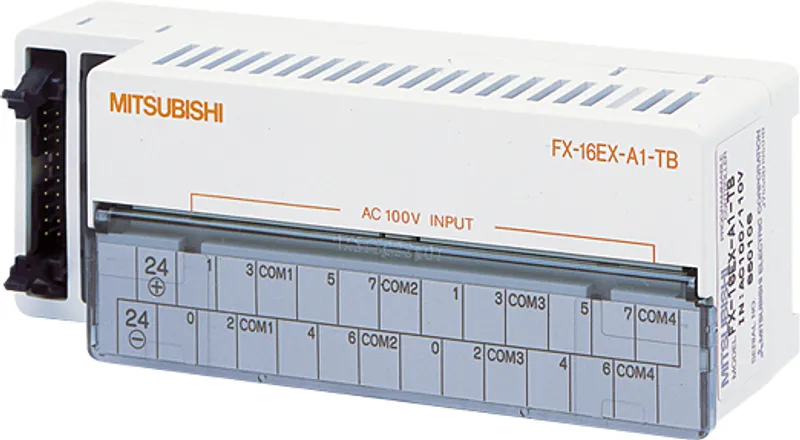

What is the Mitsubishi Electric FX-16EX-A1-TB?

The Mitsubishi Electric FX-16EX-A1-TB is a option in the MELSEC iQ-F Series. Input: 16 points (for connector→terminal block convert) AC input signal type. Mitsubishi Electric has discontinued it (2026/09 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-F Series
CategoryOption
Sales status2026/09 Discontinued (Mitsubishi Electric)
OutlineInput: 16 points (for connector→terminal block convert) AC input signal type

Specifications

Input specifications: Connection formTerminal block (M3.5 screws) Connect to the PLC with a connector.
Input specifications: input typeAC Input
Input specifications: Input signal voltage100 to 120 V AC +10%-15% 50/60 Hz
Input specifications: Input signal current4.7 mA/100 V DC 50 Hz 6.2 mA/110 V DC 60 Hz
Input specifications: Input impedanceApprox. 21 kΩ/50 Hz Approx. 18 kΩ/60 Hz
Input specifications: Input sensitivity: ON3.8 mA/80 V AC or more
Input specifications: Input sensitivity: OFF1.7 mA/30 V AC or less
Input specifications: Response time30 ms or less This response time does not include the response delay at the PLC.
Input specifications: Input signal formVoltage contact
Input specifications: Insulation of circuitPhotocoupler insulation
Input specifications: Indication of input operationNo input LEDs (equipped with 24 V power supply LED indicator)
Input specifications: Power consumption1.2 W (48 mA 24 V DC) 3.9 W (160 mA, 24 V DC) is required when connected to the FX2N-16EX-C.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

FX-16EX-A1-TB: frequently asked questions

Can I still buy the FX-16EX-A1-TB now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the FX-16EX-A1-TB, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can FX-16EX-A1-TB be shipped?

FX-16EX-A1-TB is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX-16EX-A1-TB in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX-16EX-A1-TB and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX-16EX-A1-TB, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

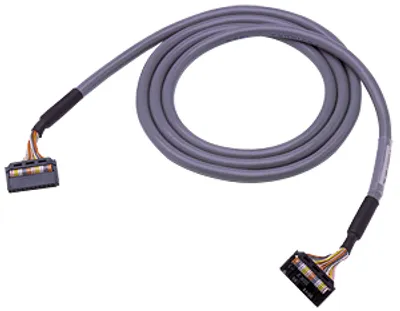

Mitsubishi Electric FX-16E-500CAB-R – Mitsubishi MELSEC-F (FX) Series Option/Training
Mitsubishi Electric
FX-16E-500CAB-R

Mitsubishi MELSEC-F (FX) Series Option/Training

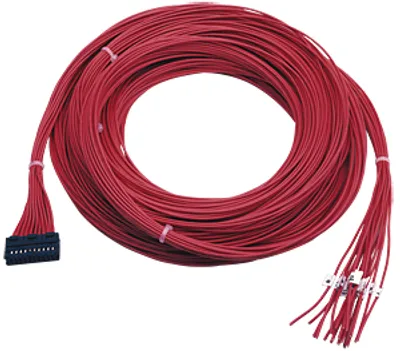

Mitsubishi Electric FX-16E-500CAB-S – Mitsubishi MELSEC-F (FX) Series Option/Training
