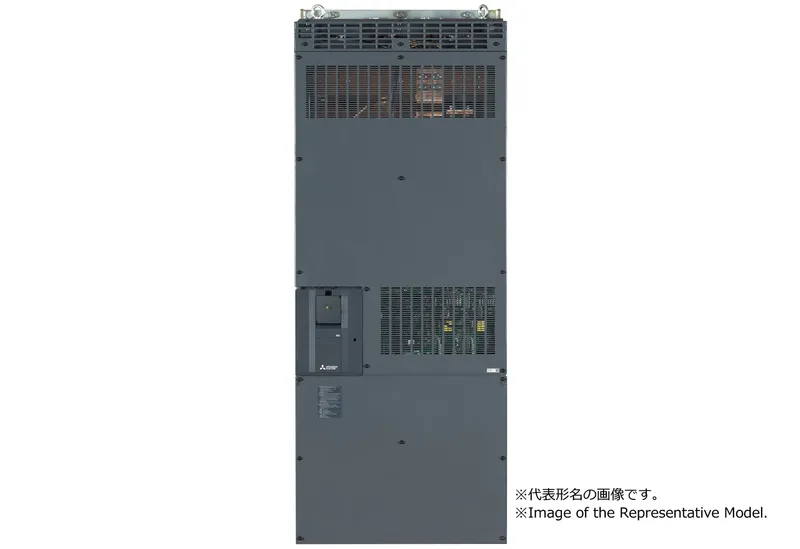

FR-CC2-C355K-60 Mitsubishi FREQROL inverter Converter unit

MPN: FR-CC2-C355K-60 · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi FREQROL inverter – Option
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can FR-CC2-C355K-60 be shipped?

FR-CC2-C355K-60 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FR-CC2-C355K-60 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FR-CC2-C355K-60 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FR-CC2-C355K-60, subject to availability and destination.

The Mitsubishi Electric FR-CC2-C355K-60 is a converter unit in the FREQROL inverter. Converter unit FR-CC2 Series. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	FREQROL inverter
Category	Converter unit
Outline	Converter unit FR-CC2 Series

Specifications

Series	Option
Category	Converter unit
Type	Three-phase 600V class Standard type
Model name	FR-CC2-C355K-60
Applicable motor capacity (kW)	355.0
Output: Overload current rating 1 5: SLD	110 % 60 s, 120 % 3 s (inverse-time characteristics) at surrounding air temperature 40 °C
Output: Overload current rating 1 5: LD	120 % 60 s, 150 % 3 s (inverse-time characteristics) at surrounding air temperature 50 °C
Output: Overload current rating 1 5: ND	150 % 60 s, 200 % 3 s (inverse-time characteristics) at surrounding air temperature 50 °C
Output: Overload current rating 1 5: HD	200 % 60 s, 250 % 3 s, 280 % 0.5 s (inverse-time characteristics) at surrounding air temperature 40 °C
Output: Rated voltage *2	618 to 933 V *4
Power supply: Rated input AC voltage/ frequency	Three-phase 525 to 600 V 60 Hz
Power supply: Permissible AC voltage fluctuation	472 to 660 V 60 Hz
Power supply: Permissible frequency fluctuation	±5 %
Power supply: Rated input current (A) *5: SLD	545.0
Power supply: Rated input current (A) *5: LD	496.0
Power supply: Rated input current (A) *5: ND	402.0
Power supply: Rated input current (A) *5: HD	304.0
Power supply: Power supply capacity (kVA) 3 5: SLD	543.0
Power supply: Power supply capacity (kVA) 3 5: LD	494.0
Power supply: Power supply capacity (kVA) 3 5: ND	400.0
Power supply: Power supply capacity (kVA) 3 5: HD	303.0
Protective structure: IEC 60529	IP00
Cooling system	Forced air cooling
DC reactor	Built-in
Approx. mass (kg)	205.0
Input signal: Number of input signal (Contact input)	3
Input signal: Input terminal function selectable signal	External thermal relay input, Converter reset The input signal can be changed using Pr. 178, Pr. 187, and Pr. 189 (input terminal function selection).
Operational function	Thermal protection, DC injection brake, automatic restart after instantaneous power failure, retry function, RS-485 communication, life diagnosis, maintenance timer, 24 V power supply input for control circuit
Output signal: Number of output signal (Open collector output)	5
Output signal: Number of output signal (Relay output)	1
Output signal: Output terminal function selectable signal	Inverter operation enable (NO contact) (positive logic, negative logic), Instantaneous power failure/undervoltage, Inverter reset, Fan fault output, Fault The signal to be output can be changed using Pr. 190 to Pr. 195 (Output terminal function selection).
Protective/warning function: Protective function	Overvoltage trip, Converter overload trip (electronic thermal relay function), Heatsink overheat, Instantaneous power failure, Undervoltage, Input phase loss 8 , External thermal relay operation, PU disconnection 8 , Retry count excess *8 , Parameter storage device fault, CPU fault, 24 VDC power fault, Inrush current limit circuit fault, Communication fault (inverter), Option fault, Operation pa
Protective/warning function: Warning function	Fan alarm, Electronic thermal relay function pre-alarm, Maintenance timer 1 to 3 8 , Password locked 8 , Parameter write error, Copy operation error, 24 V external power supply operation
Environment: Surrounding air temperature	When the inverter rating is the LD or ND rating : -10 to +50 °C (non-freezing), When the inverter rating is the SLD or HD rating : -10 to +40 °C (non-freezing)
Environment: Surrounding air humidity	With circuit board coating (conforming to IEC60721-3-3 3C2/3S2) : 95 % RH or less (non-condensing)
Environment: Storage temperature *6	-20 °C to +65 °C
Environment: Ambience	Indoors (without corrosive gas, flammable gas, oil mist, dust and dirt, etc.)
Environment: Altitude/vibration	Maximum 1000 m above sea level, 2.9 m/s 2 or less *7 at 10 to 55 Hz (directions of X, Y, Z axes)
