What is the Mitsubishi Electric CL2AD4-B?

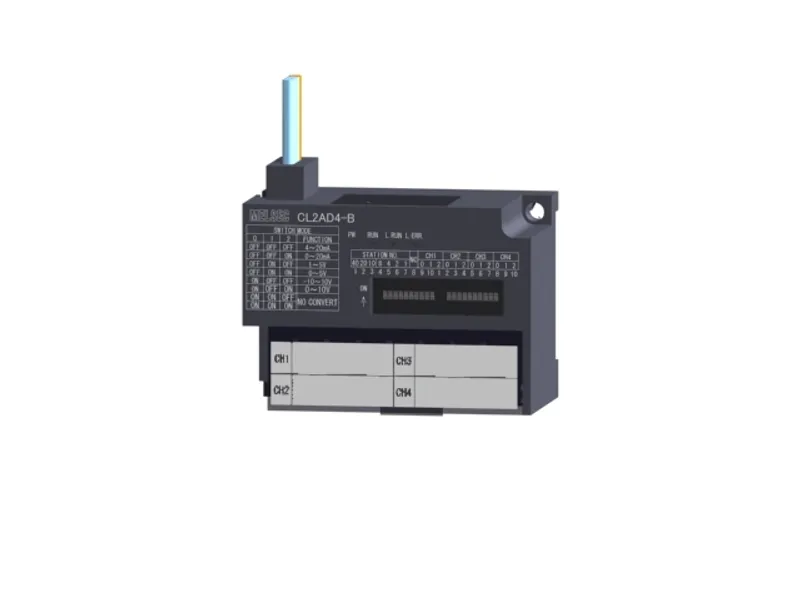

The Mitsubishi Electric CL2AD4-B is a remote I/O in the MELSEC network modules. 4 channels, input: -10...10 V DC, 0...20 mA DC, output (resolution): 0...4000, -4000...4000, conversion speed: 200 μs/4 channels, terminal block type, number of occupied stations: 4 stations in 16-point mode. Mitsubishi Electric has discontinued it (2025/03 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC network modules
CategoryRemote I/O
TypeAnalog I/O
SubtypeAnalog input
Sales status2025/03 Discontinued (Mitsubishi Electric)
Outline4 channels, input: -10...10 V DC, 0...20 mA DC, output (resolution): 0...4000, -4000...4000, conversion speed: 200 μs/4 channels, terminal block type, number of occupied stations: 4 stations in 16-point mode

Specifications

Number of analog input points4 points (4 channels)
Analog input: Voltage-10...+10 V DC (input resistance 1 MΩ)
Analog input: Current0...20 mA DC (input resistance 250 Ω)
Digital output-4096...+4095
I/O characteristics, resolution: Input rangeDigital output value (maximum resolution)
I/O characteristics, resolution: Voltage input: 0...10 V0...4000 (2.5 mV)
I/O characteristics, resolution: Voltage input: 0...5 V0...4000 (1.25 mV)
I/O characteristics, resolution: Voltage input: 1...5 V0...4000 (1.0 mV)
I/O characteristics, resolution: Voltage input: -10...10 V-4000...4000 (2.5 mV)
I/O characteristics, resolution: Current input: 0...20 mA0...4000 (5 µA)
I/O characteristics, resolution: Current input: 4...20 mA0...4000 (4 µA)
Accuracy (accuracy relative to maximum value of the digital output value): Ambient temperature: 25±5 ゚C±0.2 %
Accuracy (accuracy relative to maximum value of the digital output value): Ambient temperature: 0...55 ゚C±0.4 %
Accuracy (accuracy relative to maximum value of the digital output value): Temperature coefficient±80 ppm/˚C (0.0080 %/˚C)
A/D conversion speed200 µs/4 channels
Absolute maximum input: Voltage±15 V
Absolute maximum input: Current±30 mA
Isolation methodBetween communication system and analog inputs: Photocoupler, Transformer Between power supply system and analog inputs: Photocoupler, Transformer Between communication system and power supply system: Photocoupler, Transformer Between channels: Non-insulation
Dielectric withstand voltageBetween communication system and analog inputs, between power supply system and analog inputs, between communication system and power supply system: 500 V AC for 1 minute
Insulation resistanceBetween communication system and analog inputs, between power supply system and analog inputs, between communication system and power supply line: 500 V DC, 10 MΩ or higher
Protection degreeIP2X
Number of occupied stations4 stations in 16-point mode
Module power supply: Voltage24 V DC (20.4...28.8 V DC, ripple ratio: within 5 %)
Module power supply: Current70 mA
Module power supply: Current on startup570 mA
External interface14-point direct-mount terminal block (M3 screw)
Weight0.15 kg

Specifications

Operating ambient temperature0...55 ˚C
Storage ambient temperature-25...75 ˚C
Operating ambient humidity5...95 %RH, non-condensing
Storage ambient humidity5...95 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibrationFrequency: 5...8.4 Hz, Amplitude: 3.5 mm Frequency: 8.4...150 Hz, Acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibrationFrequency: 5...8.4 Hz, Amplitude: 1.75 mm Frequency: 8.4...150 Hz, Acceleration: 4.9 m/s 2
Shock resistanceCompliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z)
Operating atmosphereNo corrosive gases
Operating altitude0...2000 m
Installation locationInside a control panel
Overvoltage categoryII or less
Pollution degree2 or less
