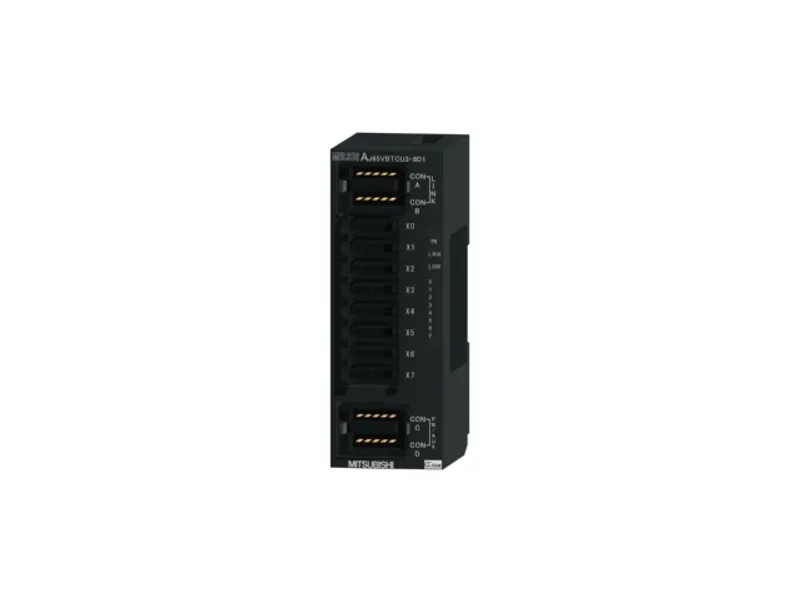

AJ65VBTCU3-8D1 Mitsubishi MELSEC network modules Remote I/O

MPN: AJ65VBTCU3-8D1 · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original AJ65VBTCU3-8D1 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC network modules – CC-Link
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the AJ65VBTCU3-8D1 now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the AJ65VBTCU3-8D1, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can AJ65VBTCU3-8D1 be shipped?

AJ65VBTCU3-8D1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up AJ65VBTCU3-8D1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for AJ65VBTCU3-8D1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AJ65VBTCU3-8D1, subject to availability and destination.

The Mitsubishi Electric AJ65VBTCU3-8D1 is a remote I/O in the MELSEC network modules. DC input: 8 points, 24 V DC 5 mA, response time: 0.2 ms, 8 points/common, positive common type, 3-wire one-touch connector type, number of occupied stations: 1 station. Mitsubishi Electric has discontinued it (2022/10 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Remote I/O
Type	I/O
Subtype	Input
Sales status	2022/10 Discontinued (Mitsubishi Electric)
Outline	DC input: 8 points, 24 V DC 5 mA, response time: 0.2 ms, 8 points/common, positive common type, 3-wire one-touch connector type, number of occupied stations: 1 station

Input specifications

Input type	DC input (positive common type)
Number of input points	8 points
Rated input voltage	24 V DC (ripple ratio: within 5 %) (allowable voltage range: 19.2...26.4 V DC)
Rated input current	Approx. 5 mA
Maximum number of simultaneous input points	100 %
ON voltage/ON current	15 V or more/3 mA or more
OFF voltage/OFF current	3 V or less/0.5 mA or less
Input resistance	Approx. 4.7 kΩ
Input response time: OFF to ON	0.2 ms or less (24 V DC)
Input response time: ON to OFF	0.2 ms or less (24 V DC)
Input common terminal arrangement	8 points/common (3-wire, one-touch connector type)
Input isolation method	Photocoupler

Common specifications

Dielectric withstand voltage	Between all DC external terminals and ground: 500 V AC for 1 minute
Insulation resistance	Between all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Protection degree	IP1XB
Station type	Remote I/O station
Number of occupied stations	1 station
Module power supply: Voltage	20.4...26.4 V DC (ripple ratio: within 5 %)
Module power supply: Current	35 mA or less (at 24 V DC, all points ON)
External interface	Communication part: One-touch connector for communication (sold separately) Module power supply part, I/O power supply part: One-touch connector for power supply and FG (sold separately) I/O part: One-touch connector for I/O (sold separately)
Communication cable	Ver.1.10 compatible CC-Link dedicated cable: FANC-110SBH, FA-CBL200PSBH, CS-110
External dimensions: Height	115 mm
External dimensions: Width	41 mm
External dimensions: Depth	62 mm
Weight	0.15 kg

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-20...75 ˚C
Operating ambient humidity	10...90 %RH, non-condensing
Storage ambient humidity	10...90 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007/JIS B 3502: 2011	Three shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphere	No corrosive gases
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

CC-Link System Compact Type Remote I/O Module User's Manual (SH-4007-AM)	PDF · 42.40MB
AJ65VBTCU3-8D1 CC-Link System Compact Type Remote I/O Module User's Manual (IB-0800159E-J)	PDF · 1.44MB
