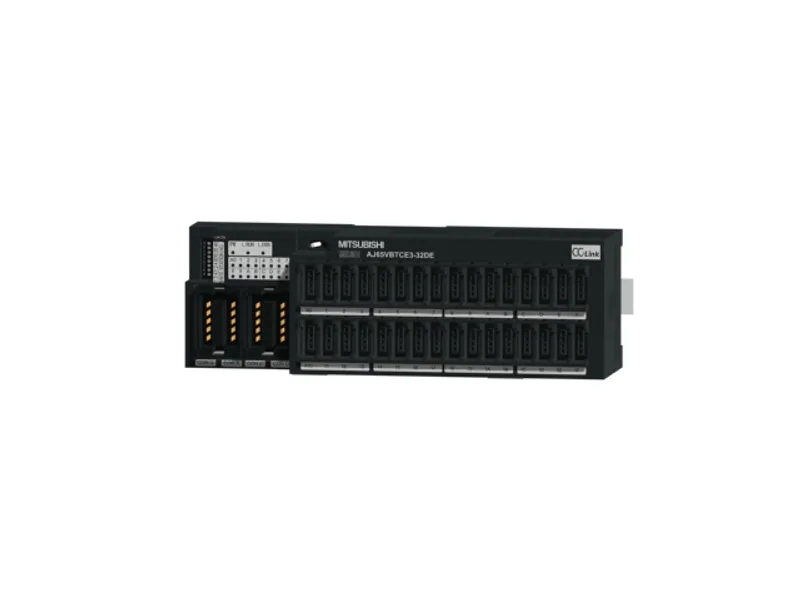

Mitsubishi Electric AJ65VBTCE3-32DE

Mitsubishi MELSEC network modules Remote I/O

MPN
AJ65VBTCE3-32DE
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric AJ65VBTCE3-32DE?

The Mitsubishi Electric AJ65VBTCE3-32DE is a remote I/O in the MELSEC network modules. DC input: 32 points, 24 V DC 5 mA, response time: 1.5 ms or less, 32 points/common, negative common type, 3-wire sensor connector (e-CON) type, number of occupied stations: 1 station. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC network modules
CategoryRemote I/O
TypeI/O
SubtypeInput
OutlineDC input: 32 points, 24 V DC 5 mA, response time: 1.5 ms or less, 32 points/common, negative common type, 3-wire sensor connector (e-CON) type, number of occupied stations: 1 station

Input specifications

Input typeDC input (negative common type)
Number of input points32 points
Rated input voltage24 V DC (ripple ratio: within 5 %) (allowable voltage range: 19.2...26.4 V DC)
Rated input currentApprox. 5 mA
Maximum number of simultaneous input points100 % (front mounting), when any installation method other than the front mounting is performed, refer to the derating chart.
ON voltage/ON current14 V or more/3.5 mA or more
OFF voltage/OFF current6 V or less/1.7 mA or less
Input resistanceApprox. 4.7 kΩ
Input response time: OFF to ON1.5 ms or less (24 V DC)
Input response time: ON to OFF1.5 ms or less (24 V DC)
Input common terminal arrangement32 points/common (3-wire, sensor connector (e-CON) type)
Input isolation methodPhotocoupler

Common specifications

Dielectric withstand voltageBetween all DC external terminals and ground: 500 V AC for 1 minute
Insulation resistanceBetween all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Protection degreeIP1XB
Station typeRemote I/O station
Number of occupied stations1 station
Module power supply: Voltage20.4...26.4 V DC (ripple ratio: within 5 %)
Module power supply: Current40 mA or less (at 24 V DC, all points ON)
External interfaceCommunication part: One-touch connector for communication (sold separately) Module power supply part, I/O power supply part: One-touch connector for power supply and FG (sold separately) I/O part: Sensor connector (e-CON) (sold separately)
Communication cableVer.1.10 compatible CC-Link dedicated cable: FANC-110SBH, FA-CBL200PSBH, CS-110
External dimensions: Height50 mm
External dimensions: Width155 mm
External dimensions: Depth45.5 mm
Weight0.16 kg

Specifications

Operating ambient temperature0...55 ˚C
Storage ambient temperature-20...75 ˚C
Operating ambient humidity10...90 %RH, non-condensing
Storage ambient humidity10...90 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under intermittent vibrationFrequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under continuous vibrationFrequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007/JIS B 3502: 2011Three shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphereNo corrosive gases
Operating altitude0...2000 m
Installation locationInside a control panel
Overvoltage categoryII or less
Pollution degree2 or less
