What is the Mitsubishi Electric AJ65SBTW4-16D?

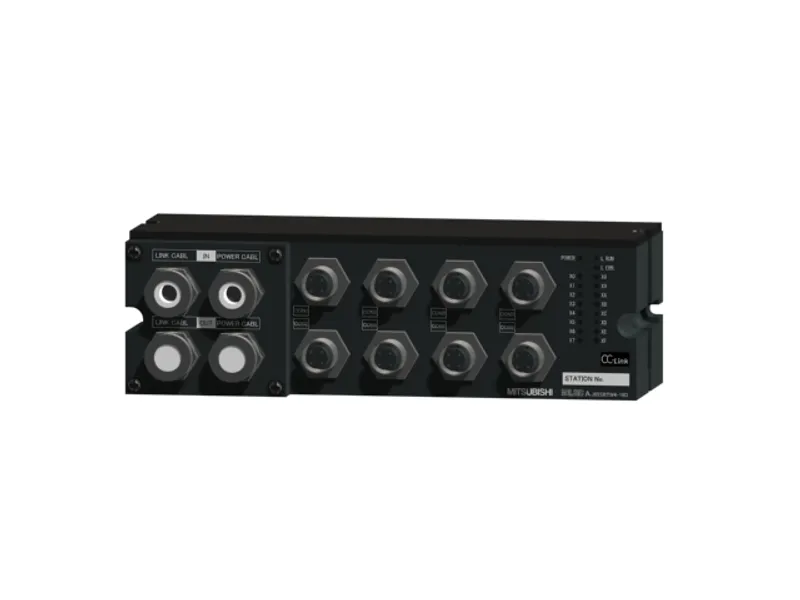

The Mitsubishi Electric AJ65SBTW4-16D is a remote I/O in the MELSEC network modules. DC input: 16 points, 24 V DC 5 mA, response time: 1.5 ms, 16 points/common, positive/negative common shared type, 4-wire waterproof type, number of occupied stations: 1 station. Mitsubishi Electric has discontinued it (2010/10 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC network modules
CategoryRemote I/O
TypeI/O
SubtypeInput
Sales status2010/10 Discontinued (Mitsubishi Electric)
OutlineDC input: 16 points, 24 V DC 5 mA, response time: 1.5 ms, 16 points/common, positive/negative common shared type, 4-wire waterproof type, number of occupied stations: 1 station

Input specifications

Input typeDC input (positive/negative shared common type)
Number of input points16 points
Rated input voltage24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...26.4 V DC)
Rated input currentApprox. 5 mA
Maximum number of simultaneous input points100 %
ON voltage/ON current14 V or more/3.5 mA or more
OFF voltage/OFF current6 V or less/1.7 mA or less
Input resistanceApprox. 4.7 kΩ
Input response time: OFF to ON1.5 ms or less (24 V DC)
Input response time: ON to OFF1.5 ms or less (24 V DC)
Input common terminal arrangement16 points/common (4-wire, waterproof connector type)
Input isolation methodPhotocoupler

Common specifications

Dielectric withstand voltageBetween all DC external terminals and ground: 500 V AC for 1 minute
Insulation resistanceBetween all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Protection degreeIP67
Station typeRemote I/O station
Number of occupied stations1 station
Module power supply: Voltage20.4...26.4 V DC (ripple ratio: within 5 %)
Module power supply: Current35 mA or less (at 24 V DC, all points ON)
External interfaceCommunication part, module power supply part, I/O power supply part: 7-point two-piece terminal block (M3 screw) I/O part: Waterproof connector [compliant with IEC 60947-5-2, M12, male, 4 pins, IP67] (sold separately)
External dimensions: Height57.9 mm
External dimensions: Width184.7 mm
External dimensions: Depth60 mm
Weight0.70 kg

Specifications

Operating ambient temperature0...45 ˚C
Storage ambient temperatureNot wired (individual product): -20...65 ˚C Wired (after cable installation): -10...55 ˚C
Operating ambient humidityCompliant with IP67
Storage ambient humidity10...90 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under intermittent vibrationFrequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under continuous vibrationFrequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007/JIS B 3502: 2011Three shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphereNo corrosive gases
Operating altitude0...2000 m
Installation locationInside a control panel (It can also be used in an environment other than on the control panel if the conditions such as usage ambient temperature and humidity are satisfied.)
Overvoltage categoryII or less
Pollution degree2 or less
