Mitsubishi Electric AJ65SBTC1-32T

Mitsubishi MELSEC network modules Remote I/O

MPN
AJ65SBTC1-32T
Price and lead time confirmed within 1 business day

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original AJ65SBTC1-32T (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

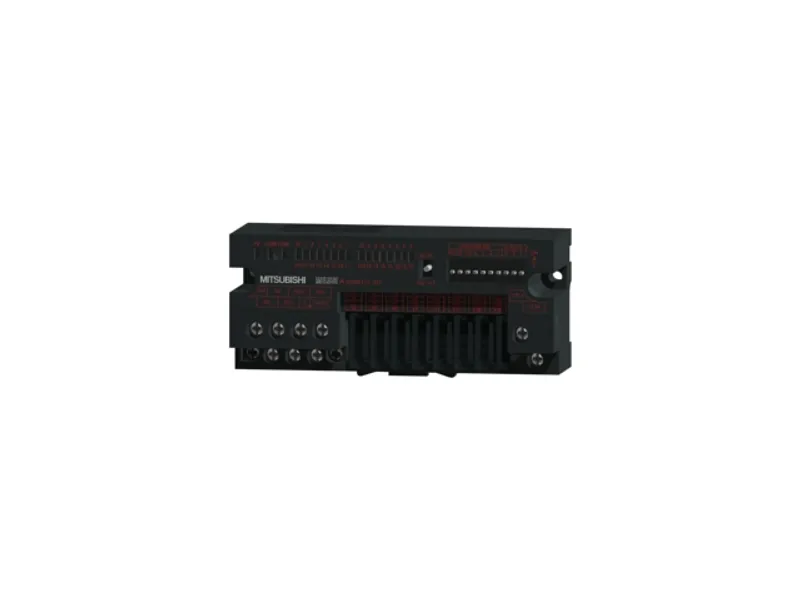

What is the Mitsubishi Electric AJ65SBTC1-32T?

The Mitsubishi Electric AJ65SBTC1-32T is a remote I/O in the MELSEC network modules. Transistor output: 32 points, 12/24 V DC, 0.1 A/point, 3.2 A/common, response time: 1.5 ms, 32 points/common, sink type, 1-wire one-touch connector type, number of occupied stations: 1 station. Mitsubishi Electric has discontinued it (2021/06 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC network modules
CategoryRemote I/O
TypeI/O
SubtypeOutput
Sales status2021/06 Discontinued (Mitsubishi Electric)
OutlineTransistor output: 32 points, 12/24 V DC, 0.1 A/point, 3.2 A/common, response time: 1.5 ms, 32 points/common, sink type, 1-wire one-touch connector type, number of occupied stations: 1 station

Output specifications

Output typeTransistor output (sink type)
Number of output points32 points
Rated load voltage12/24 V DC
Operating load voltage range10.2...26.4 V DC (ripple ratio: within 5 %)
Maximum load current0.1 A/point, 3.2 A/common
Maximum inrush current1.0 A, 10 ms or less
Leakage current at OFF0.25 mA or less
Maximum voltage drop at ON0.3 V DC or less (TYP.) 0.1 A, 0.6 V DC or less (MAX.) 0.1 A
Output response time: OFF to ON0.5 ms or less
Output response time: ON to OFF1.5 ms or less (resistive load)
Surge suppressorZener diode
Protection functionOverload protection, overvoltage protection, overheat protection
External power supply for output part: Voltage10.2...26.4 V DC (ripple ratio: within 5 %)
External power supply for output part: Current50 mA or less (TYP. 24 V DC/common), excluding external load current
Output common terminal arrangement32 points/common (1-wire, one-touch connector type)
Output isolation methodPhotocoupler

Common specifications

Dielectric withstand voltageBetween all DC external terminals and ground: 500 V AC for 1 minute
Insulation resistanceBetween all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Protection degreeIP2X
Station typeRemote I/O station
Number of occupied stations1 station
Module power supply: Voltage20.4...26.4 V DC (ripple ratio: within 5 %)
Module power supply: Current60 mA or less (at 24 V DC, all points ON)
External interfaceCommunication part, module power supply part: 7-point two-piece terminal block (M3 screw) I/O power supply part: 2-point direct-mount terminal block (M3 screw) I/O part: Dedicated one-touch connector (sold separately)
External dimensions: Height50 mm
External dimensions: Width118 mm
External dimensions: Depth40 mm
Weight0.16 kg

Specifications

Operating ambient temperature0...55 ˚C
Storage ambient temperature-20...75 ˚C
Operating ambient humidity10...90 %RH, non-condensing
Storage ambient humidity10...90 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under intermittent vibrationFrequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under continuous vibrationFrequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007/JIS B 3502: 2011Three shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphereNo corrosive gases
Operating altitude0...2000 m
Installation locationInside a control panel
Overvoltage categoryII or less
Pollution degree2 or less

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

AJ65SBTC1-32T: frequently asked questions

Can I still buy the AJ65SBTC1-32T now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the AJ65SBTC1-32T, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can AJ65SBTC1-32T be shipped?

AJ65SBTC1-32T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up AJ65SBTC1-32T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for AJ65SBTC1-32T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AJ65SBTC1-32T, subject to availability and destination.
