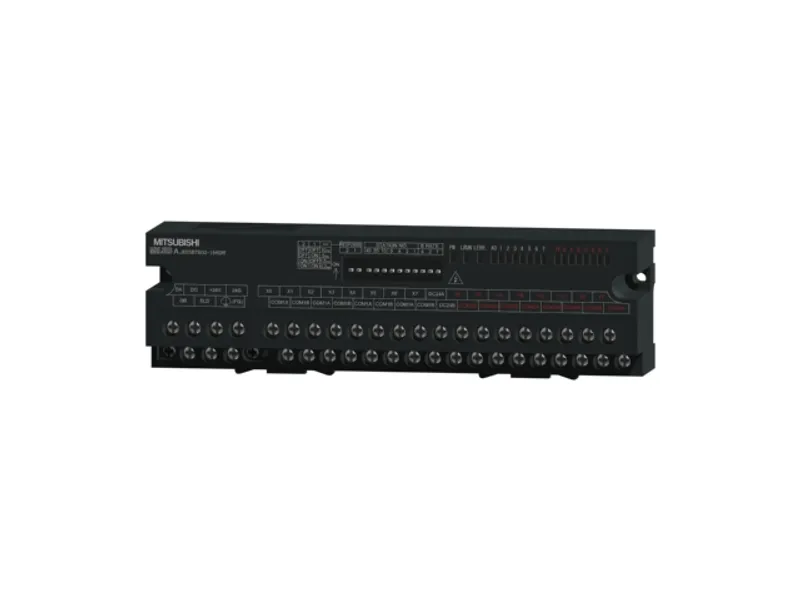

AJ65SBTB32-16KDR Mitsubishi MELSEC network modules Remote I/O
Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original AJ65SBTB32-16KDR (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mitsubishi MELSEC network modules – CC-Link |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
Can I still buy the AJ65SBTB32-16KDR now that it is discontinued?
Yes. Mitsubishi Electric (Factory Automation) has discontinued the AJ65SBTB32-16KDR, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can AJ65SBTB32-16KDR be shipped?
AJ65SBTB32-16KDR is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up AJ65SBTB32-16KDR in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for AJ65SBTB32-16KDR and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AJ65SBTB32-16KDR, subject to availability and destination.
The Mitsubishi Electric AJ65SBTB32-16KDR is a remote I/O in the MELSEC network modules. DC input: 8 points, 24 V DC, 7 mA, response time: 0.2/1.5/5/10 ms, 8 points/common, positive/negative common shared type, 3-wire, contact output: 8 points, 24 V DC/240 V AC, 2 A/point, 4 A/common, response time: 12 ms, 4 points/common, 2-wire terminal block type, number of occupied stations: 1 station. Mitsubishi Electric has discontinued it (2026/03 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC network modules |
| Category | Remote I/O |
| Type | I/O |
| Subtype | I/O |
| Sales status | 2026/03 Discontinued (Mitsubishi Electric) |
| Outline | DC input: 8 points, 24 V DC, 7 mA, response time: 0.2/1.5/5/10 ms, 8 points/common, positive/negative common shared type, 3-wire, contact output: 8 points, 24 V DC/240 V AC, 2 A/point, 4 A/common, response time: 12 ms, 4 points/common, 2-wire terminal block type, number of occupied stations: 1 station |
Input specifications
| Input type | DC input (positive/negative shared common type) |
| Number of input points | 8 points |
| Rated input voltage | 24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC) |
| Rated input current | Approx. 7 mA |
| Maximum number of simultaneous input points | 100 % |
| ON voltage/ON current | 14 V or more/4 mA or more |
| OFF voltage/OFF current | 5.5 V or less/1.7 mA or less |
| Input resistance | Approx. 3.0 kΩ |
| Input response time: Response time setting | 0.2 ms, 1.5 ms, 5 ms, 10 ms |
| Input response time: OFF to ON | 0.2 ms or less, 1.5 ms or less, 5 ms or less, 10 ms or less, |
| Input response time: ON to OFF | 0.2 ms or less, 1.5 ms or less, 5 ms or less, 10 ms or less, |
| Input common terminal arrangement | 8 points/common (3-wire, terminal block type) |
| Input isolation method | Photocoupler |
Output specifications
| Number of output points | 8 points |
| Rated switching voltage, current | 24 V DC 2 A (resistive load)/point, 240 V AC 2 A (cosø=1)/point, 4 A/common |
| Number of simultaneous ON points | All points |
| Minimum switching load | 5 V DC, 1 mA |
| Maximum switching voltage | 264 V AC, 125 V DC |
| Life: Mechanical | 20 million times or more |
| Life: Electrical | Rated switching voltage/current load: More than 100 thousand times 200 V AC 1.5 A, 240 V AC 1 A (COSø=0.7): 100 thousand times 200 V AC 1 A, 240 V AC 0.5 A (COSø=0.35): 100 thousand times 24 V DC 1 A, 100 V DC 0.1 A (L/R=7 ms): 100 thousand times |
| Maximum switching frequency | 3600 times/hour |
| Output response time: OFF to ON | 10 ms or less |
| Output response time: ON to OFF | 12 ms or less |
| Surge suppressor | None |
| Output common terminal arrangement | 4 points/common (2-wire, terminal block type) |
| Output isolation method | Relay |
Common specifications
| Dielectric withstand voltage | Between all AC external terminals and ground: 2830 V AC rms/3 cycles (altitude 2000 m) Between all DC external terminals and ground: 500 V AC for 1 minute |
| Insulation resistance | Between all AC external terminals and ground, between all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester |
| Protection degree | IP1X |
| Station type | Remote I/O station |
| Number of occupied stations | 1 station |
| Module power supply: Voltage | 20.4...26.4 V DC (ripple ratio: within 5 %) |
| Module power supply: Current | 100 mA or less (at 24 V DC, all points ON) |
| External interface | Communication part, module power supply part: 7-point two-piece terminal block (M3 screw) I/O power supply part, I/O part: 34-point direct-mount terminal block (M3 screw) |
| External dimensions: Height | 50 mm |
| External dimensions: Width | 179 mm |
| External dimensions: Depth | 40 mm |
| Weight | 0.29 kg |
Specifications
| Operating ambient temperature | 0...55 ˚C |
| Storage ambient temperature | -20...75 ˚C |
| Operating ambient humidity | 10...90 %RH, non-condensing |
| Storage ambient humidity | 10...90 %RH, non-condensing |
| Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under intermittent vibration | Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions |
| Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under continuous vibration | Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2 |
| Shock resistance: IEC 61131-2: 2007/JIS B 3502: 2011 | Three shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks) |
| Operating atmosphere | No corrosive gases |
| Operating altitude | 0...2000 m |
| Installation location | Inside a control panel |
| Overvoltage category | II or less |
| Pollution degree | 2 or less |
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
Data sheets & manuals
| CC-Link System Compact Type Remote I/O Module User's Manual (SH-4007-AM) | PDF · 42.40MB |
| AJ65SBTB32-16KDR CC-Link System Compact Type Remote I/O Module User's Manual (IB-0800400E-F) | PDF · 1.65MB |
More Mitsubishi Electric (Factory Automation) parts
Available on requestAJ65SBTB32 Mitsubishi MELSEC Network / communication module

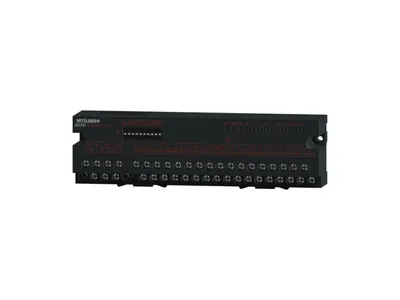

Available on requestAJ65SBTB32-16DR Mitsubishi MELSEC network modules Remote I/O

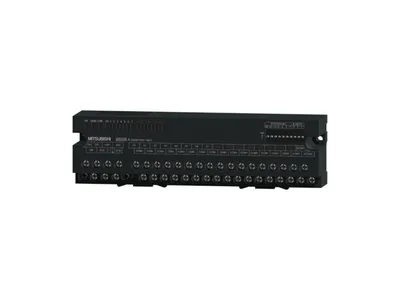

Available on requestAJ65SBTB32-16DT Mitsubishi MELSEC network modules Remote I/O
Available on requestAJ65SBTB32-16DT2 Mitsubishi MELSEC network modules Remote I/O

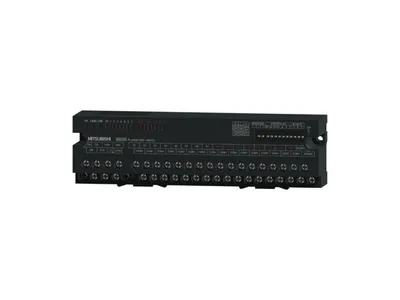

Available on requestAJ65SBTB32-16KDT2 Mitsubishi MELSEC network modules Remote I/O
Available on requestAJ65SBTB32-16KDT8 Mitsubishi MELSEC network modules Remote I/O

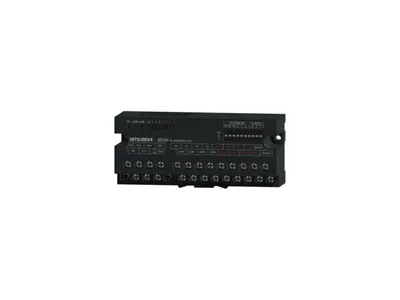

Available on requestAJ65SBTB32-8DT Mitsubishi MELSEC network modules Remote I/O

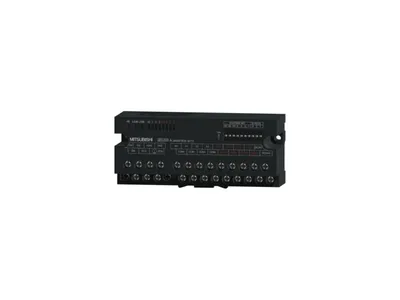

Available on requestAJ65SBTB32-8DT2 Mitsubishi MELSEC network modules Remote I/O
