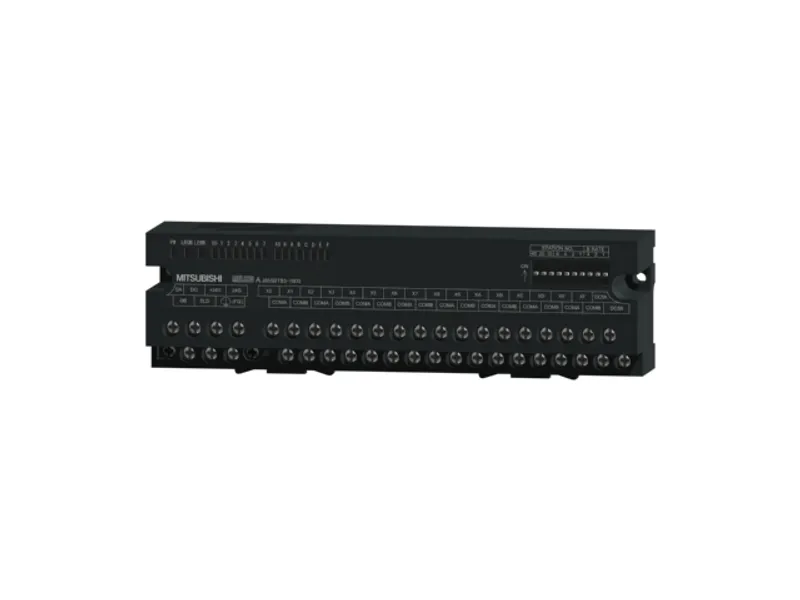

The Mitsubishi Electric AJ65SBTB3-16D5 is a remote I/O in the MELSEC network modules. DC input: 16 points, 5 V DC 4 mA, response time: 1.5 ms, 16 points/common, positive/negative common shared type, 3-wire terminal block type, number of occupied stations: 1 station. Mitsubishi Electric has discontinued it (2020/06 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Remote I/O
Type	I/O
Subtype	Input
Sales status	2020/06 Discontinued (Mitsubishi Electric)
Outline	DC input: 16 points, 5 V DC 4 mA, response time: 1.5 ms, 16 points/common, positive/negative common shared type, 3-wire terminal block type, number of occupied stations: 1 station

Input specifications

Input type	DC input (positive/negative shared common type)
Number of input points	16 points
Rated input voltage	5 V DC (ripple ratio: within 5 %) (allowable voltage range: 4.25...6 V DC)
Rated input current	Approx. 4 mA
Maximum number of simultaneous input points	100 %
ON voltage/ON current	3.5 V or more/2 mA or more
OFF voltage/OFF current	1.5 V or less/1 mA or less
Input resistance	Approx. 1.0 kΩ
Input response time: OFF to ON	1.5 ms or less (5 V DC)
Input response time: ON to OFF	1.5 ms or less (5 V DC)
Input common terminal arrangement	16 points/common (3-wire, terminal block type)
Input isolation method	Photocoupler

Common specifications

Dielectric withstand voltage	Between all DC external terminals and ground: 500 V AC for 1 minute
Insulation resistance	Between all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Protection degree	IP2X
Station type	Remote I/O station
Number of occupied stations	1 station
Module power supply: Voltage	20.4...26.4 V DC (ripple ratio: within 5 %)
Module power supply: Current	30 mA or less (at 24 V DC, all points ON)
External interface	Communication part, module power supply part: 7-point two-piece terminal block (M3 screw) I/O power supply part, I/O part: 34-point direct-mount terminal block (M3 screw)
External dimensions: Height	50 mm
External dimensions: Width	179 mm
External dimensions: Depth	40 mm
Weight	0.25 kg

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-20...75 ˚C
Operating ambient humidity	10...90 %RH, non-condensing
Storage ambient humidity	10...90 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007/JIS B 3502: 2011	Three shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphere	No corrosive gases
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less
