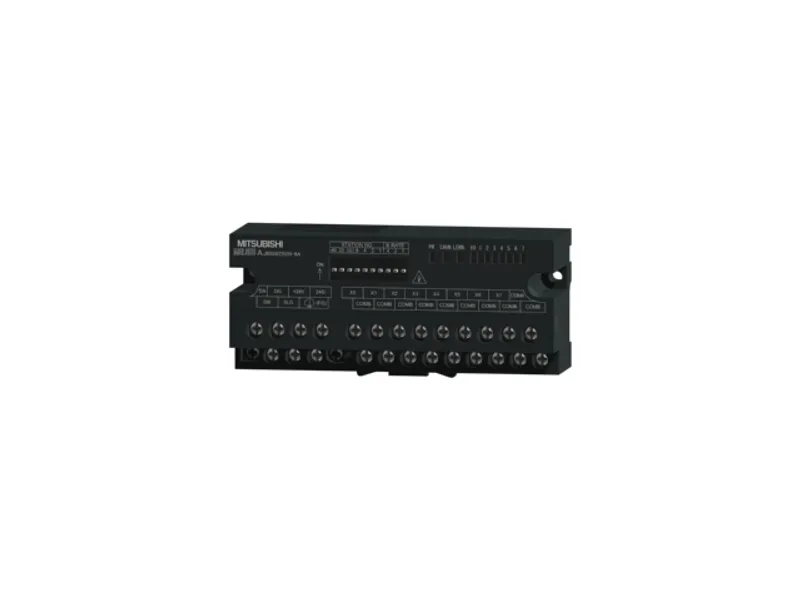

AJ65SBTB2N-8A Mitsubishi MELSEC network modules Remote I/O

MPN: AJ65SBTB2N-8A · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC I/OLINK, MELSECNET & A-Series Network Modules
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can AJ65SBTB2N-8A be shipped?

AJ65SBTB2N-8A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up AJ65SBTB2N-8A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for AJ65SBTB2N-8A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AJ65SBTB2N-8A, subject to availability and destination.

The Mitsubishi Electric AJ65SBTB2N-8A is a remote I/O in the MELSEC network modules. AC input: 8 points, 100...120 V AC 7 mA, response time: 20 ms, 8 points/common, 2-wire terminal block type, number of occupied stations: 1 station. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Remote I/O
Type	I/O
Subtype	Input
Outline	AC input: 8 points, 100...120 V AC 7 mA, response time: 20 ms, 8 points/common, 2-wire terminal block type, number of occupied stations: 1 station

Input specifications

Input type	AC input
Number of input points	8 points
Rated input voltage, frequency	100...120 V AC (+10/-15 %), 50/60 Hz (±3 Hz)
Input voltage distortion	Within 5 %
Rated input current	Approx. 7 mA (100 V AC, 60 Hz)
Maximum number of simultaneous input points	100 % (at 110 V AC) 60 % (at 132 V AC)
Inrush current	Maximum 200 mA, within 1 ms (at 132 V AC)
ON voltage/ON current	80 V AC or more/3.5 mA or more
OFF voltage/OFF current	30 V AC or less/1.7 mA or less
Input impedance	Approx. 15 kΩ (60 Hz), approx. 18 kΩ (50 Hz)
Input response time: OFF to ON	20 ms or less (100 V AC, 60 Hz)
Input response time: ON to OFF	20 ms or less (100 V AC, 60 Hz)
Input common terminal arrangement	8 points/common (2-wire, terminal block type)
Input isolation method	Photocoupler

Common specifications

Dielectric withstand voltage	Between all AC external terminals and ground: 1780 V AC rms/3 cycles (altitude 2000 m) Between all DC external terminals and ground: 500 V AC for 1 minute
Insulation resistance	Between all AC external terminals and ground, between all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Station type	Remote I/O station
Number of occupied stations	1 station
Module power supply: Voltage	20.4...26.4 V DC (ripple ratio: within 5 %)
Module power supply: Current	35 mA or less (at 24 V DC, all points ON)
External interface	Communication part, module power supply part: 7-point two-piece terminal block (M3 screw) I/O power supply part, I/O part: 18-point direct-mount terminal block (M3 screw)
External dimensions: Height	50 mm
External dimensions: Width	118 mm
External dimensions: Depth	40 mm
Weight	0.2 kg

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-20...75 ˚C
Operating ambient humidity	10...90 %RH, non-condensing
Storage ambient humidity	10...90 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007/JIS B 3502: 2011	Three shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphere	No corrosive gases
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

CC-Link System Compact Type Remote I/O Module User's Manual (SH-4007-AM)	PDF · 42.40MB
AJ65SBTB2N-8A CC-Link System Compact Type Remote I/O Module User's Manual (IB-0800124E-K)	PDF · 1.62MB

12-month warrantyon all new stock

3-month warrantyon used & refurbished parts

30-day returnsno restocking fee on unused parts

Global shippingFast, tracked delivery worldwide
