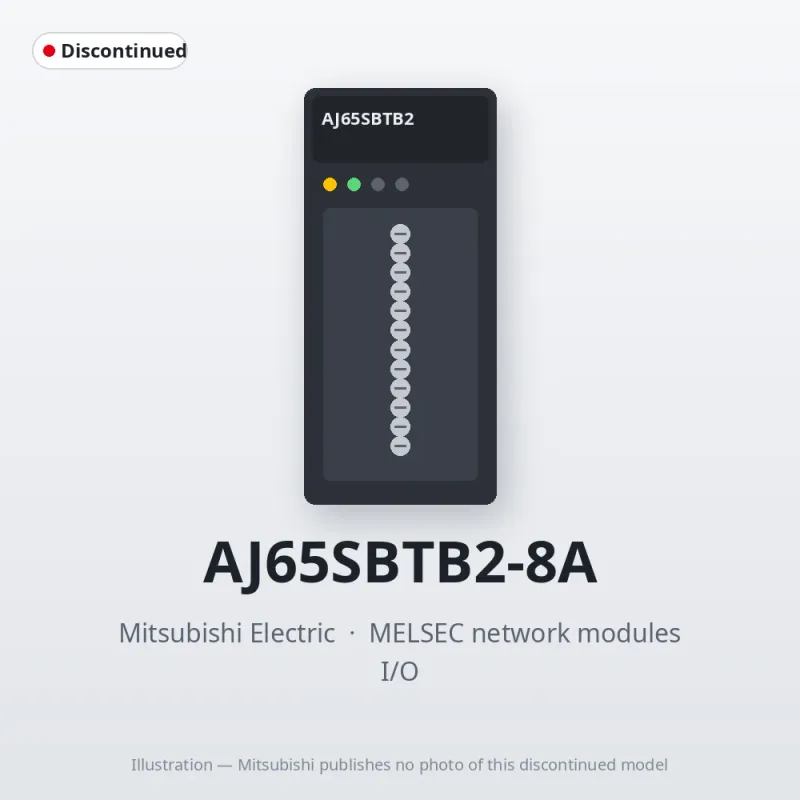

Mitsubishi Electric AJ65SBTB2-8A

Mitsubishi MELSEC network modules Remote I/O

MPN
AJ65SBTB2-8A
Price and lead time confirmed within 1 business day

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original AJ65SBTB2-8A (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric AJ65SBTB2-8A?

The Mitsubishi Electric AJ65SBTB2-8A is a remote I/O in the MELSEC network modules. AC input: 8 points, 100...120 V AC 7 mA, response time: 20 ms, 8 points/common, 1-wire terminal block type, number of occupied stations: 1 station. Mitsubishi Electric has discontinued it (2000/10 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC network modules
CategoryRemote I/O
TypeI/O
SubtypeInput
Sales status2000/10 Discontinued (Mitsubishi Electric)
OutlineAC input: 8 points, 100...120 V AC 7 mA, response time: 20 ms, 8 points/common, 1-wire terminal block type, number of occupied stations: 1 station

Input specifications

Input typeAC input
Number of input points8 points
Rated input voltage, frequency100...120 V AC (+10/-15 %), 50/60 Hz (±3 Hz)
Input voltage distortionWithin 5 %
Rated input currentApprox. 7 mA (100 V AC, 60 Hz)
Maximum number of simultaneous input points100 % (at 110 V AC) 60 % (at 132 V AC)
Inrush currentMaximum 200 mA, within 1 ms (at 132 V AC)
ON voltage/ON current80 V AC or more/5 mA or more
OFF voltage/OFF current30 V AC or less/1 mA or less
Input impedanceApprox. 15 kΩ (60 Hz), approx. 18 kΩ (50 Hz)
Input response time: OFF to ON20 ms or less (100 V AC, 60 Hz)
Input response time: ON to OFF20 ms or less (100 V AC, 60 Hz)
Input common terminal arrangement8 points/common (1-wire, terminal block type)
Input isolation methodPhotocoupler

Common specifications

Dielectric withstand voltageBetween all AC external terminals and ground: 1780 V AC rms/3 cycles (altitude 2000 m) Between all DC external terminals and ground: 500 V AC for 1 minute
Insulation resistanceBetween all AC external terminals and ground, between all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Station typeRemote I/O station
Number of occupied stations1 station
Module power supply: Voltage20.4...26.4 V DC (ripple ratio: within 5 %)
Module power supply: Current35 mA or less (at 24 V DC, all points ON)
External interfaceCommunication part, module power supply part: 7-point two-piece terminal block (M3 screw) I/O power supply part, I/O part: 18-point direct-mount terminal block (M3 screw)
External dimensions: Height50 mm
External dimensions: Width118 mm
External dimensions: Depth40 mm
Weight0.2 kg

Specifications

Operating ambient temperature0...55 ˚C
Storage ambient temperature-20...75 ˚C
Operating ambient humidity10...90 %RH, non-condensing
Storage ambient humidity10...90 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibrationFrequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibrationFrequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistanceCompliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z)
Operating atmosphereNo corrosive gases
Operating altitude0...2000 m
Installation locationInside a control panel
Overvoltage categoryII or less
Pollution degree2 or less

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

AJ65SBTB2-8A: frequently asked questions

Can I still buy the AJ65SBTB2-8A now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the AJ65SBTB2-8A, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can AJ65SBTB2-8A be shipped?

AJ65SBTB2-8A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up AJ65SBTB2-8A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for AJ65SBTB2-8A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AJ65SBTB2-8A, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

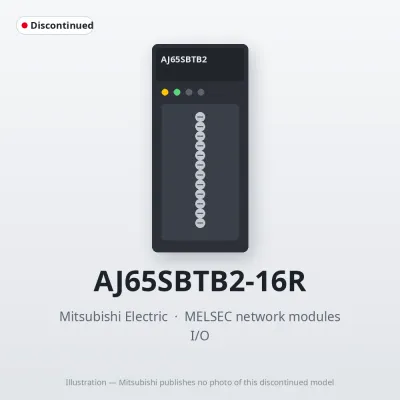

Mitsubishi Electric AJ65SBTB2-16R – Mitsubishi MELSEC network modules Remote I/O
