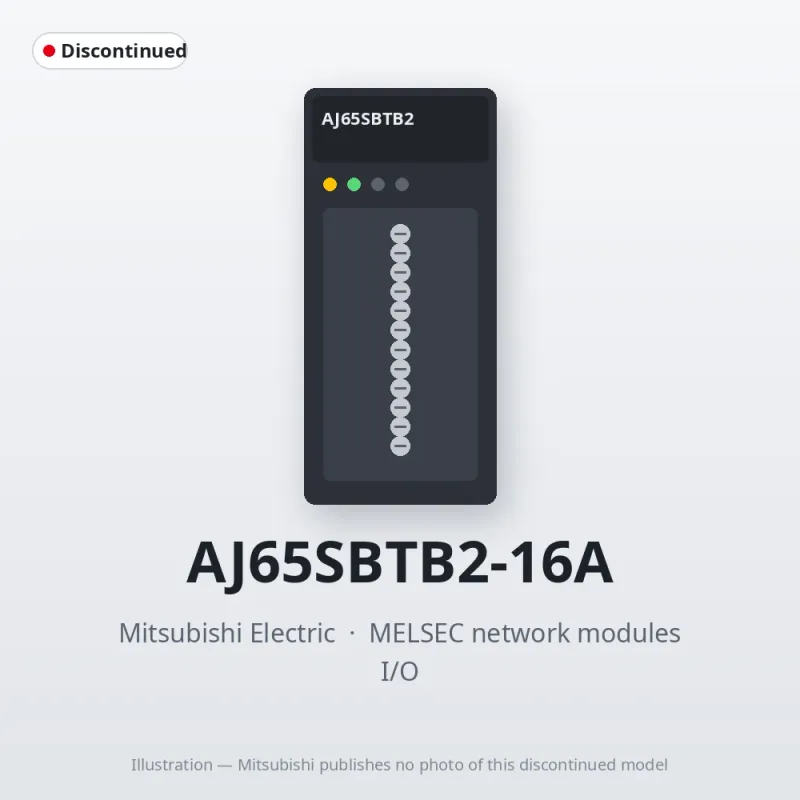

AJ65SBTB2-16A Mitsubishi MELSEC network modules Remote I/O

MPN: AJ65SBTB2-16A · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original AJ65SBTB2-16A (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC network modules – CC-Link
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the AJ65SBTB2-16A now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the AJ65SBTB2-16A, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can AJ65SBTB2-16A be shipped?

AJ65SBTB2-16A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up AJ65SBTB2-16A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for AJ65SBTB2-16A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AJ65SBTB2-16A, subject to availability and destination.

The Mitsubishi Electric AJ65SBTB2-16A is a remote I/O in the MELSEC network modules. AC input: 16 points, 100...120 V AC 7 mA, response time: 20 ms, 16 points/common, 1-wire terminal block type, number of occupied stations: 1 station. Mitsubishi Electric has discontinued it (2000/10 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Remote I/O
Type	I/O
Subtype	Input
Sales status	2000/10 Discontinued (Mitsubishi Electric)
Outline	AC input: 16 points, 100...120 V AC 7 mA, response time: 20 ms, 16 points/common, 1-wire terminal block type, number of occupied stations: 1 station

Input specifications

Input type	AC input
Number of input points	16 points
Rated input voltage, frequency	100...120 V AC (+10/-15 %), 50/60 Hz (±3 Hz)
Input voltage distortion	Within 5 %
Rated input current	Approx. 7 mA (100 V AC, 60 Hz)
Maximum number of simultaneous input points	100 % (at 110 V AC) 60 % (at 132 V AC)
Inrush current	Maximum 200 mA, within 1 ms (at 132 V AC)
ON voltage/ON current	80 V AC or more/5 mA or more
OFF voltage/OFF current	30 V AC or less/1 mA or less
Input impedance	Approx. 15 kΩ (60 Hz), approx. 18 kΩ (50 Hz)
Input response time: OFF to ON	20 ms or less (100 V AC, 60 Hz)
Input response time: ON to OFF	20 ms or less (100 V AC, 60 Hz)
Input common terminal arrangement	16 points/common (1-wire, terminal block type)
Input isolation method	Photocoupler

Common specifications

Dielectric withstand voltage	Between all AC external terminals and ground: 1780 V AC rms/3 cycles (altitude 2000 m) Between all DC external terminals and ground: 500 V AC for 1 minute
Insulation resistance	Between all AC external terminals and ground, between all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Station type	Remote I/O station
Number of occupied stations	1 station
Module power supply: Voltage	20.4...26.4 V DC (ripple ratio: within 5 %)
Module power supply: Current	40 mA or less (at 24 V DC, all points ON)
External interface	Communication part, module power supply part: 7-point two-piece terminal block (M3 screw) I/O power supply part, I/O part: 34-point direct-mount terminal block (M3 screw)
External dimensions: Height	50 mm
External dimensions: Width	179 mm
External dimensions: Depth	40 mm
Weight	0.25 kg

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-20...75 ˚C
Operating ambient humidity	10...90 %RH, non-condensing
Storage ambient humidity	10...90 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance	Compliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z)
Operating atmosphere	No corrosive gases
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less
