What is the Mitsubishi Electric AJ65SBTB1-32D1?

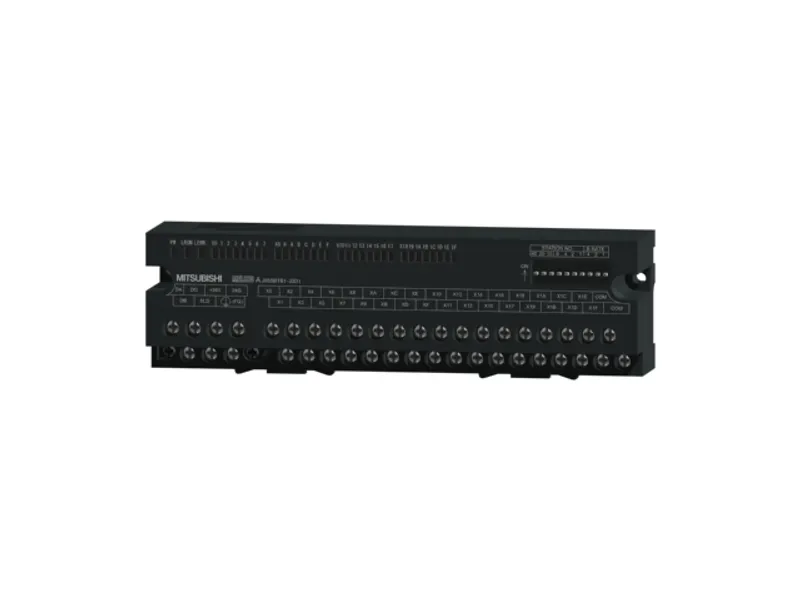

The Mitsubishi Electric AJ65SBTB1-32D1 is a remote I/O in the MELSEC network modules. DC input: 32 points, 24 V DC 5 mA, response time: 0.2 ms, 32 points/common, positive/negative common shared type, 1-wire terminal block type, number of occupied stations: 1 station. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC network modules
CategoryRemote I/O
TypeI/O
SubtypeInput
OutlineDC input: 32 points, 24 V DC 5 mA, response time: 0.2 ms, 32 points/common, positive/negative common shared type, 1-wire terminal block type, number of occupied stations: 1 station

Input specifications

Input typeDC input (positive/negative shared common type)
Number of input points32 points
Rated input voltage24 V DC (ripple ratio: within 5 %) (allowable voltage range: 19.2...26.4 V DC)
Rated input currentApprox. 5 mA
Maximum number of simultaneous input points100 %
ON voltage/ON current15 V or more/3 mA or more
OFF voltage/OFF current3 V or less/0.5 mA or less
Input resistanceApprox. 4.7 kΩ
Input response time: OFF to ON0.2 ms or less (24 V DC)
Input response time: ON to OFF0.2 ms or less (24 V DC)
Input common terminal arrangement32 points/common (1-wire, terminal block type)
Input isolation methodPhotocoupler

Common specifications

Dielectric withstand voltageBetween all DC external terminals and ground: 500 V AC for 1 minute
Insulation resistanceBetween all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Protection degreeIP2X
Station typeRemote I/O station
Number of occupied stations1 station
Module power supply: Voltage20.4...26.4 V DC (ripple ratio: within 5 %)
Module power supply: Current50 mA or less (at 24 V DC, all points ON)
External interfaceCommunication part, module power supply part: 7-point two-piece terminal block (M3 screw) I/O power supply part, I/O part: 34-point direct-mount terminal block (M3 screw)
External dimensions: Height50 mm
External dimensions: Width179 mm
External dimensions: Depth40 mm
Weight0.25 kg

Specifications

Operating ambient temperature0...55 ˚C
Storage ambient temperature-20...75 ˚C
Operating ambient humidity10...90 %RH, non-condensing
Storage ambient humidity10...90 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under intermittent vibrationFrequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under continuous vibrationFrequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007/JIS B 3502: 2011Three shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphereNo corrosive gases
Operating altitude0...2000 m
Installation locationInside a control panel
Overvoltage categoryII or less
Pollution degree2 or less
