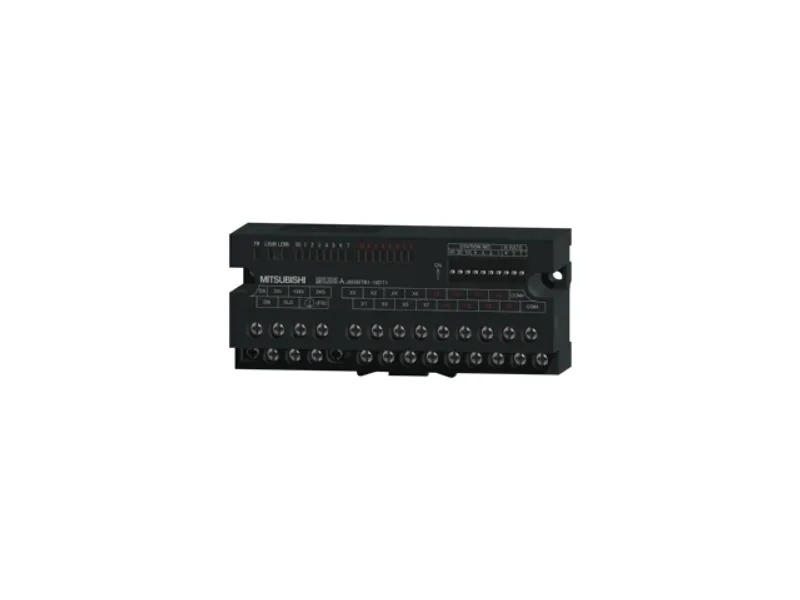

Mitsubishi Electric AJ65SBTB1-16DT1

Mitsubishi MELSEC network modules Remote I/O

MPN
AJ65SBTB1-16DT1
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric AJ65SBTB1-16DT1?

The Mitsubishi Electric AJ65SBTB1-16DT1 is a remote I/O in the MELSEC network modules. DC input: 8 points, 24 V DC, 5 mA, response time: 0.2 ms, positive common type, 1-wire, transistor output: 8 points, 24 V DC, 0.5 A/point, 2.4 A/common, response time: 1.5 ms, 16 points/common, sink type, 1-wire terminal block type, number of occupied stations: 1 station. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC network modules
CategoryRemote I/O
TypeI/O
SubtypeI/O
OutlineDC input: 8 points, 24 V DC, 5 mA, response time: 0.2 ms, positive common type, 1-wire, transistor output: 8 points, 24 V DC, 0.5 A/point, 2.4 A/common, response time: 1.5 ms, 16 points/common, sink type, 1-wire terminal block type, number of occupied stations: 1 station

Input specifications

Input typeDC input (positive common type)
Number of input points8 points
Rated input voltage24 V DC (ripple ratio: within 5 %) (allowable voltage range: 19.2...26.4 V DC)
Rated input currentApprox. 5 mA
Maximum number of simultaneous input points100 %
ON voltage/ON current15 V or more/3 mA or more
OFF voltage/OFF current3 V or less/0.5 mA or less
Input resistanceApprox. 4.7 kΩ
Input response time: OFF to ON0.2 ms or less (24 V DC)
Input response time: ON to OFF0.2 ms or less (24 V DC)
Input isolation methodPhotocoupler

Output specifications

Output typeTransistor output (sink type)
Number of output points8 points
Rated load voltage24 V DC
Operating load voltage range19.2...26.4 V DC (ripple ratio: within 5 %)
Maximum load current0.5 A/point, 2.4 A/common
Maximum inrush current1.0 A, 10 ms or less
Leakage current at OFF0.25 mA or less
Maximum voltage drop at ON0.3 V DC or less (TYP.) 0.5 A, 0.6 V DC or less (MAX.) 0.5 A
Output response time: OFF to ON0.5 ms or less
Output response time: ON to OFF1.5 ms or less (resistive load)
Protection functionOverload protection, overvoltage protection, overheat protection
External power supply for output part: Voltage19.2...26.4 V DC (ripple ratio: within 5 %)
External power supply for output part: Current17.8 mA or less (at 24 V DC and all points ON), excluding external load current
Output isolation methodPhotocoupler

Common specifications

Common terminal arrangement16 points/common (1-wire, terminal block type)
Dielectric withstand voltageBetween all DC external terminals and ground: 500 V AC for 1 minute
Insulation resistanceBetween all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Protection degreeIP2X
Station typeRemote I/O station
Number of occupied stations1 station
Module power supply: Voltage20.4...26.4 V DC (ripple ratio: within 5 %)
Module power supply: Current55 mA or less (at 24 V DC, all points ON)
External interfaceCommunication part, module power supply part: 7-point two-piece terminal block (M3 screw) I/O power supply part, I/O part: 18-point direct-mount terminal block (M3 screw)
External dimensions: Height50 mm
External dimensions: Width118 mm
External dimensions: Depth40 mm
Weight0.18 kg

Specifications

Operating ambient temperature0...55 ˚C
Storage ambient temperature-20...75 ˚C
Operating ambient humidity10...90 %RH, non-condensing
Storage ambient humidity10...90 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under intermittent vibrationFrequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under continuous vibrationFrequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007/JIS B 3502: 2011Three shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphereNo corrosive gases
Operating altitude0...2000 m
Installation locationInside a control panel
Overvoltage categoryII or less
Pollution degree2 or less
