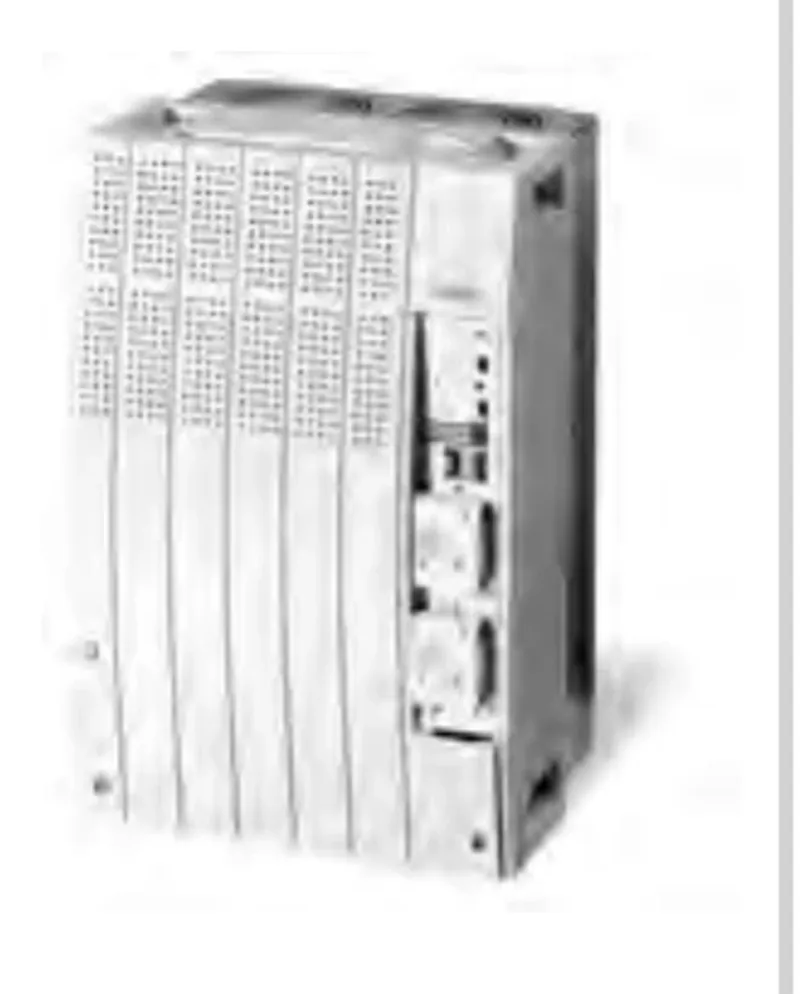

Lenze 8200 vector Frequency Inverter 45 kW, 400V, No Filter
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Variable Frequency Drives |
| Lifecycle | active |
| Warranty | 12-month |
Shipping & availability
When can E82EV453K4B201 be shipped?
E82EV453K4B201 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up E82EV453K4B201 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for E82EV453K4B201 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for E82EV453K4B201, subject to availability and destination.
Lenze 8200 vector series frequency inverter, 45 kW motor power (4-pole asynchronous motor), 400V mains supply, large frame (B), without integrated mains filter (external filter required). The 8200 vector is Lenze's modular previous-generation inverter range (superseded by the 8400 series) offering vector control, pluggable function modules and Keypad XT / Global Drive Control operation.
Specifications
Specifications
| Motor power | 45 kW |
| Mains voltage | 400V |
| Frame | Large (B-frame) |
| Filter | Not integrated (external filter required) |
| Series | 8200 vector |
| Lifecycle | Discontinued by manufacturer (previous-generation product, superseded by Lenze 8400) |
| Rated output current (8 kHz) | 89 A |
| Max. output current (8 kHz, 60s) | 134 A |
| Power loss | 1100 W |
| Dimensions (H x B x T) | 510 x 340 x 285 mm |
| Mass | 34 kg |
