Kuka U996282

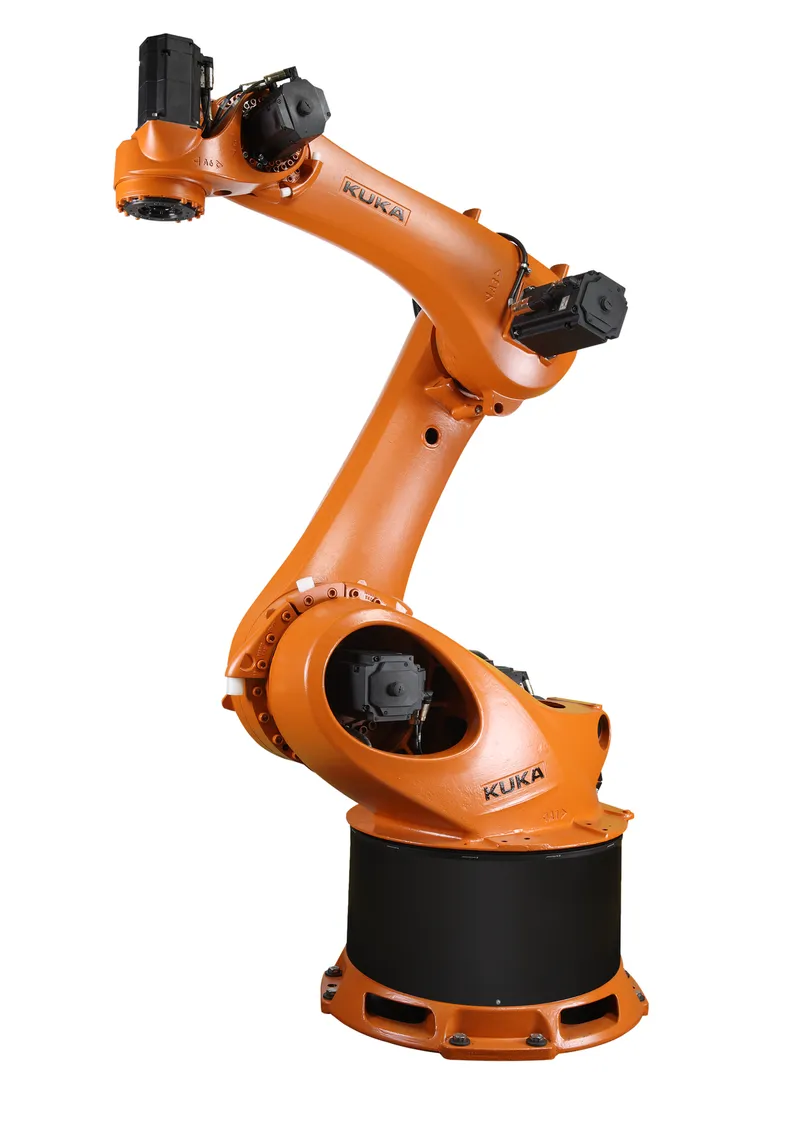

KR 300-2 PA incl. KR C4 EU RAL 7016

MPN: U996282
Category: Heavy-duty class

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Kuka U996282?

Control cable (CTR): 23x 1.0 mm² + 2x 1.0 mm²

Specifications

Maximum payload	326 kg
Rated payload	300 kg
Maximum reach	3150 mm
Mounting position	Floor
Pose repeatability (ISO 9283)	0.08 mm
Number of axes	5
Ambient temperature during operation	0 °C to 55 °C (273 K to 328 K)
Ambient temperature during stor./transp.	-40 °C to 60 °C (233 K to 333 K)
Protection rating (IEC 60529)	IP54
Prot. rating, in-line wrist (IEC 60529)	IP65
A1	97.5 °/s
A2	91 °/s
A3	89 °/s
A5	Alternativtext wird verwendet!
A6	177 °/s
Height	1062.5
Depth	596 mm
Maximum number of servo axes	9
Rated supply voltage	AC 3x 380 V, AC 3x 400 V, AC 3x 440 V, AC 3x 480 V
Mains frequency	49...61 Hz
Mains side fusing	min. 3x 25 A slow-blowing, max. 3x 32 A slow-blowing, see rating plate
