Home / Kuka / Heavy-duty class / Kuka U4589064

Kuka

Kuka U4589064

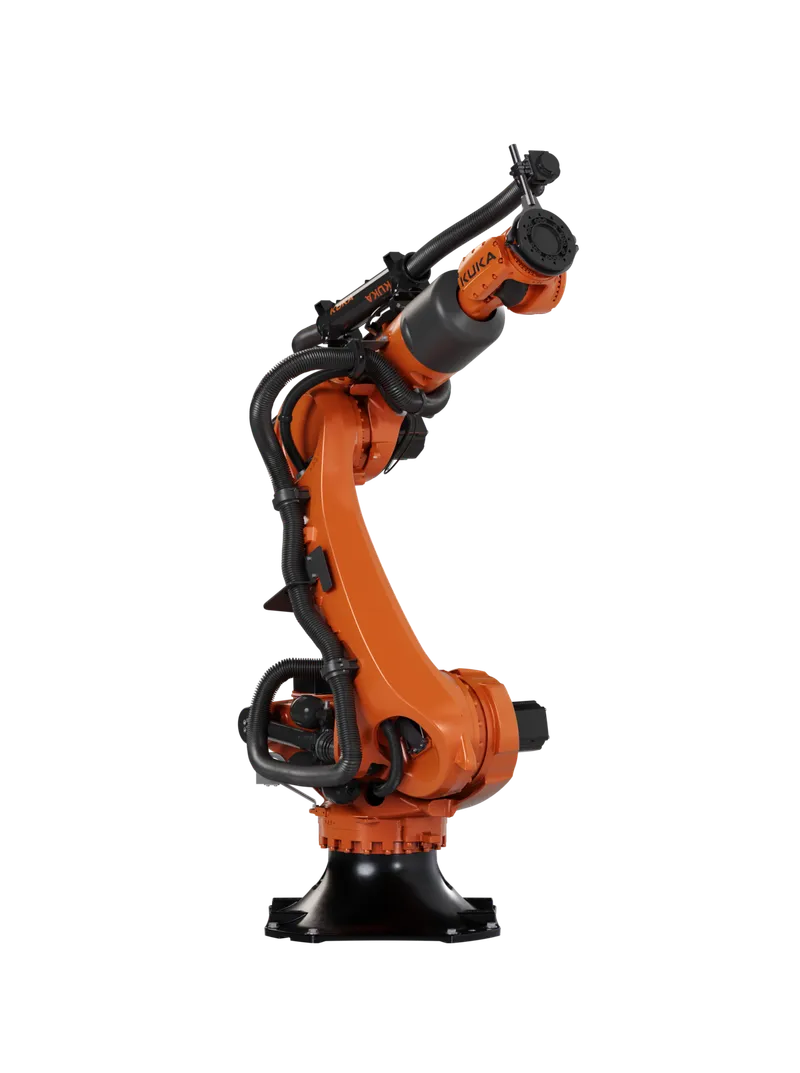

KR 500 R2800-2 incl. KR C5 dualcab

MPN: U4589064
Category: Heavy-duty class

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Kuka U4589064?

Kuka KR 500 R2800-2 incl. KR C5 dualcab, manufacturer part number U4589064. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Maximum payload	611 kg
Rated payload	500 kg
Maximum reach	2800 mm
Mounting position	Floor
Pose repeatability (ISO 9283)	0.08 mm
Number of axes	6
Ambient temperature during operation	0 °C to 55 °C (273 K to 328 K)
Ambient temperature during stor./transp.	-25 °C to 60 °C (248 K to 333 K)
Protection rating (IEC 60529)	IP54
Prot. rating, in-line wrist (IEC 60529)	IP65 / IP67
A1	100 °/s
A2	80 °/s
A3	90 °/s
A4	90 °/s
A5	100 °/s
A6	163 °/s
Height	720
Depth	600 mm
Rated supply voltage	AC 3x 380 V, AC 3x 400 V, AC 3x 415 V, AC 3x 440 V, AC 3x 480 V
Mains frequency	50/60 Hz ±1 Hz
Mains side fusing	min. 3x 32 A slow-blowing, max. 3x 63 A, slow-blowing, see rating plate

U4589064: frequently asked questions

When can U4589064 be shipped?

U4589064 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up U4589064 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for U4589064 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for U4589064, subject to availability and destination.
