Home / Kuka / Heavy-duty class / Kuka U4589035

Kuka

Kuka U4589035

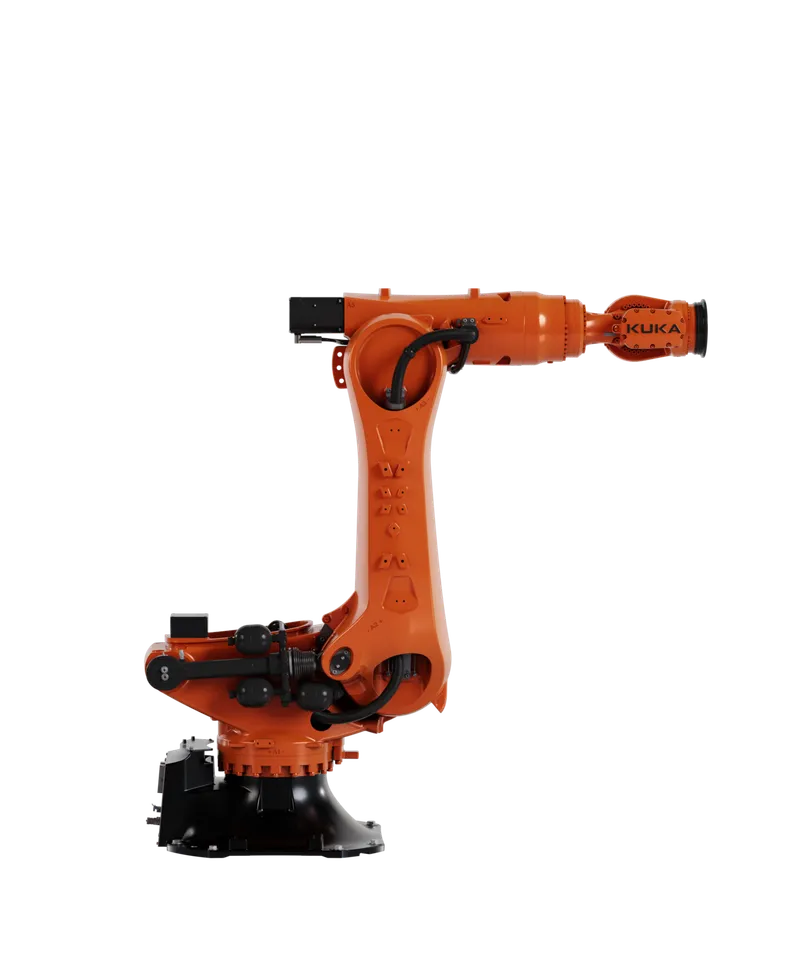

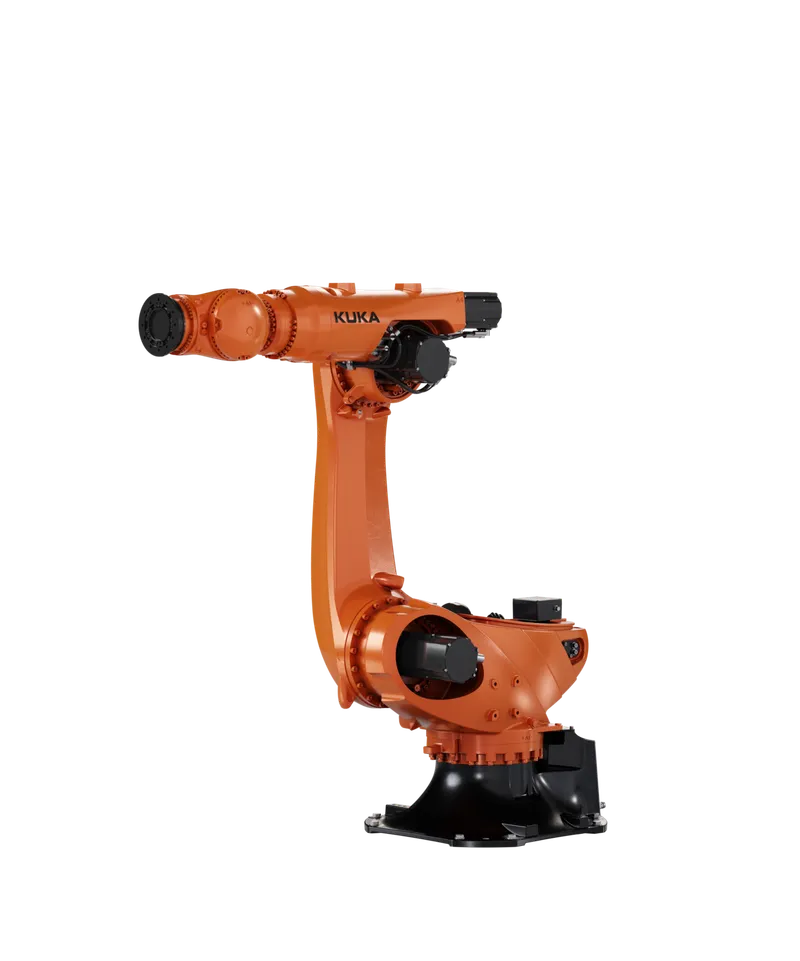

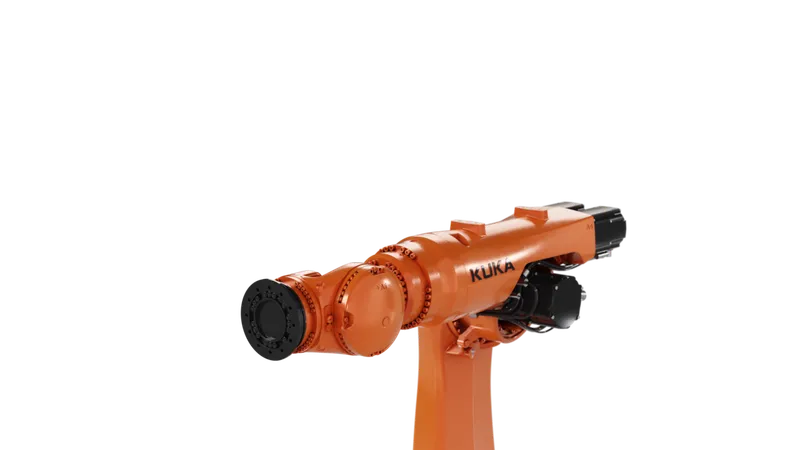

KR 500 R2800-2 incl. KR C5

MPN: U4589035
Category: Heavy-duty class

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Kuka U4589035?

Control cable (CTR): 23x 1.0 mm² + 2x 1.0 mm²

Specifications

Maximum payload	611 kg
Rated payload	500 kg
Maximum reach	2800 mm
Mounting position	Floor
Pose repeatability (ISO 9283)	0.08 mm
Number of axes	6
Ambient temperature during operation	0 °C to 55 °C (273 K to 328 K)
Ambient temperature during stor./transp.	-25 °C to 60 °C (248 K to 333 K)
Protection rating (IEC 60529)	IP54
Prot. rating, in-line wrist (IEC 60529)	IP65 / IP67
A1	100 °/s
A2	80 °/s
A3	90 °/s
A4	90 °/s
A5	100 °/s
A6	163 °/s
Depth	600 mm
Maximum number of servo axes	12
Rated supply voltage	AC 3x 380 V, AC 3x 400 V, AC 3x 415 V, AC 3x 440 V, AC 3x 480 V
Mains frequency	49...61 Hz
Mains side fusing	min. 3x 32 A slow-blowing, max. 3x 63 A, slow-blowing, see rating plate
Rated connected load	2 kVA
