Kuka

Kuka U4576289

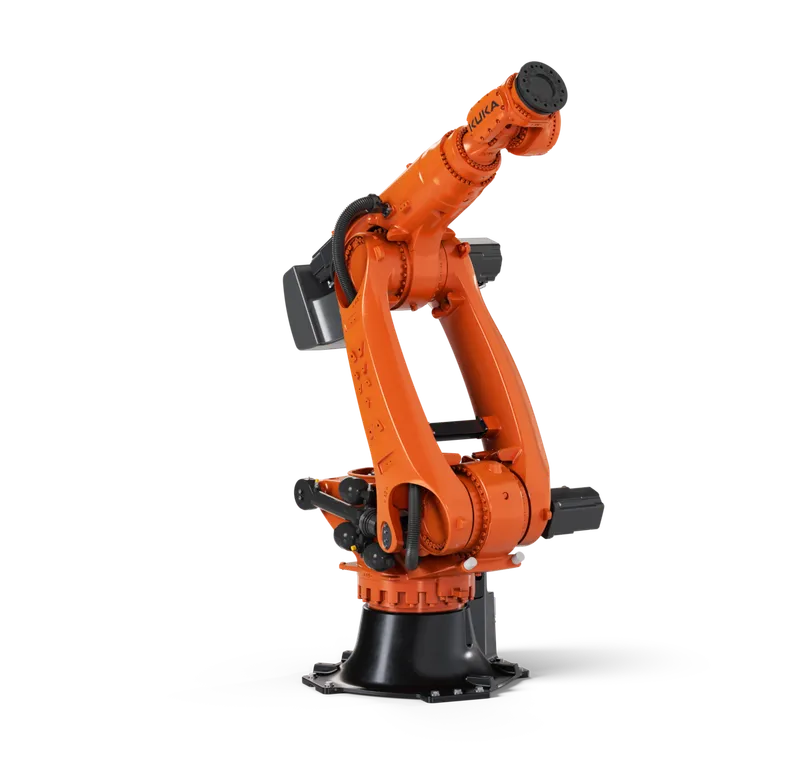

KR 480 R3700-2 incl. KR C5

MPN: U4576289
Category: Heavy-duty class

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Kuka U4576289?

Kuka KR 480 R3700-2 incl. KR C5, manufacturer part number U4576289. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Maximum payload	580 kg
Rated payload	480 kg
Maximum reach	3700 mm
Mounting position	Floor
Pose repeatability (ISO 9283)	0.08 mm
Number of axes	6
Ambient temperature during operation	0 °C to 55 °C (273 K to 328 K)
Ambient temperature during stor./transp.	-25 °C to 60 °C (248 K to 333 K)
Protection rating (IEC 60529)	IP54
Prot. rating, in-line wrist (IEC 60529)	IP65 / IP67
A1	80 °/s
A2	60 °/s
A3	60 °/s
A4	90 °/s
A5	90 °/s
A6	140 °/s
Depth	600 mm
Maximum number of servo axes	12
Rated supply voltage	AC 3x 380 V, AC 3x 400 V, AC 3x 415 V, AC 3x 440 V, AC 3x 480 V
Mains frequency	49...61 Hz
Mains side fusing	min. 3x 32 A slow-blowing, max. 3x 63 A, slow-blowing, see rating plate
Rated connected load	2 kVA

U4576289: frequently asked questions

When can U4576289 be shipped?

U4576289 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up U4576289 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for U4576289 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for U4576289, subject to availability and destination.
