Kuka U1416547

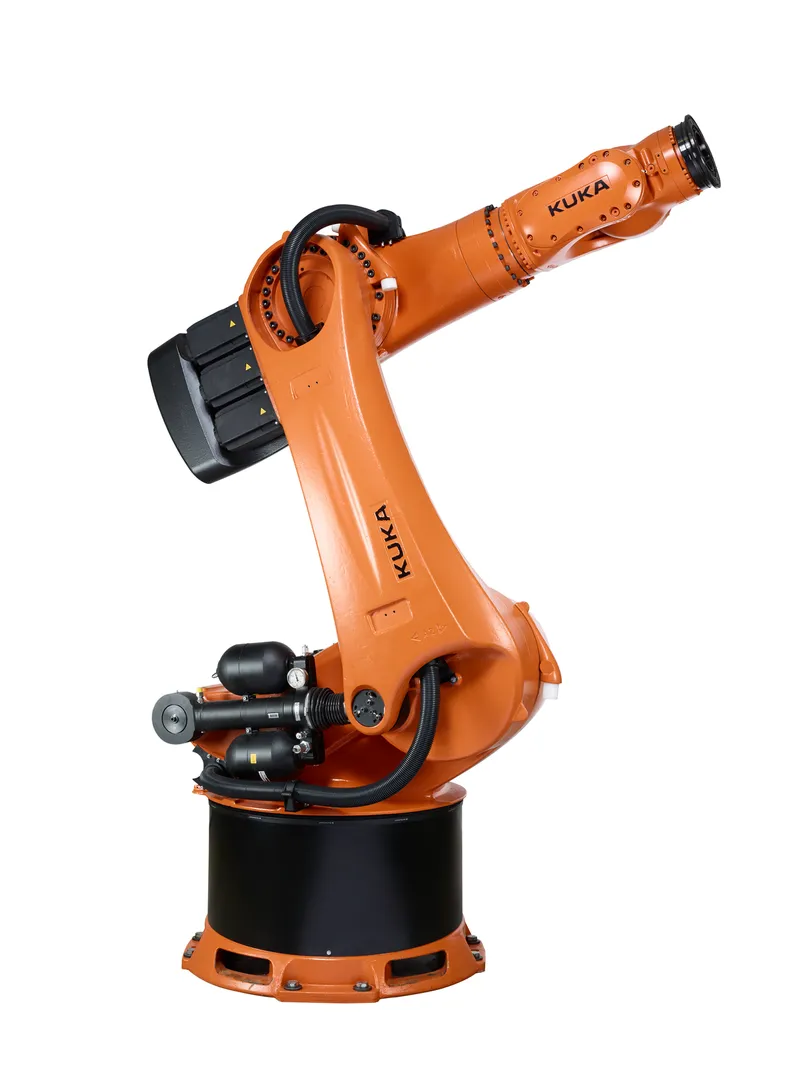

KR 600 R2830 incl. KR C5 dualcab

MPN: U1416547
Category: Heavy-duty class

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Kuka U1416547?

The KR C5 dualcab cabinet offers two installation spaces for flexible equipment with robot controller, additional axis module or peripheral components on a mounting plate. All devices are powered by the 3-phase mains infeed in the cabinet. All required cables to the robots and additional kinematic systems as well as to other system control components are fed into the cabinet through a flexible cable inlet system. The devices are protected according to protection class IP54.

Specifications

Maximum payload	729 kg
Rated payload	600 kg
Maximum reach	2826 mm
Mounting position	Floor
Pose repeatability (ISO 9283)	0.08 mm
Number of axes	6
Ambient temperature during operation	10 °C to 55 °C (283 K to 328 K)
Ambient temperature during stor./transp.	-25 °C to 60 °C (248 K to 333 K)
Protection rating (IEC 60529)	IP54
Prot. rating, in-line wrist (IEC 60529)	IP65
A1	80 °/s
A2	75 °/s
A3	70 °/s
A4	70 °/s
A5	70 °/s
A6	110 °/s
Height	720
Depth	600 mm
Rated supply voltage	AC 3x 380 V, AC 3x 400 V, AC 3x 415 V, AC 3x 440 V, AC 3x 480 V
Mains frequency	50/60 Hz ±1 Hz
Mains side fusing	min. 3x 32 A slow-blowing, max. 3x 63 A, slow-blowing, see rating plate

U1416547: frequently asked questions

When can U1416547 be shipped?

U1416547 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up U1416547 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for U1416547 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for U1416547, subject to availability and destination.
