Kuka U1078973

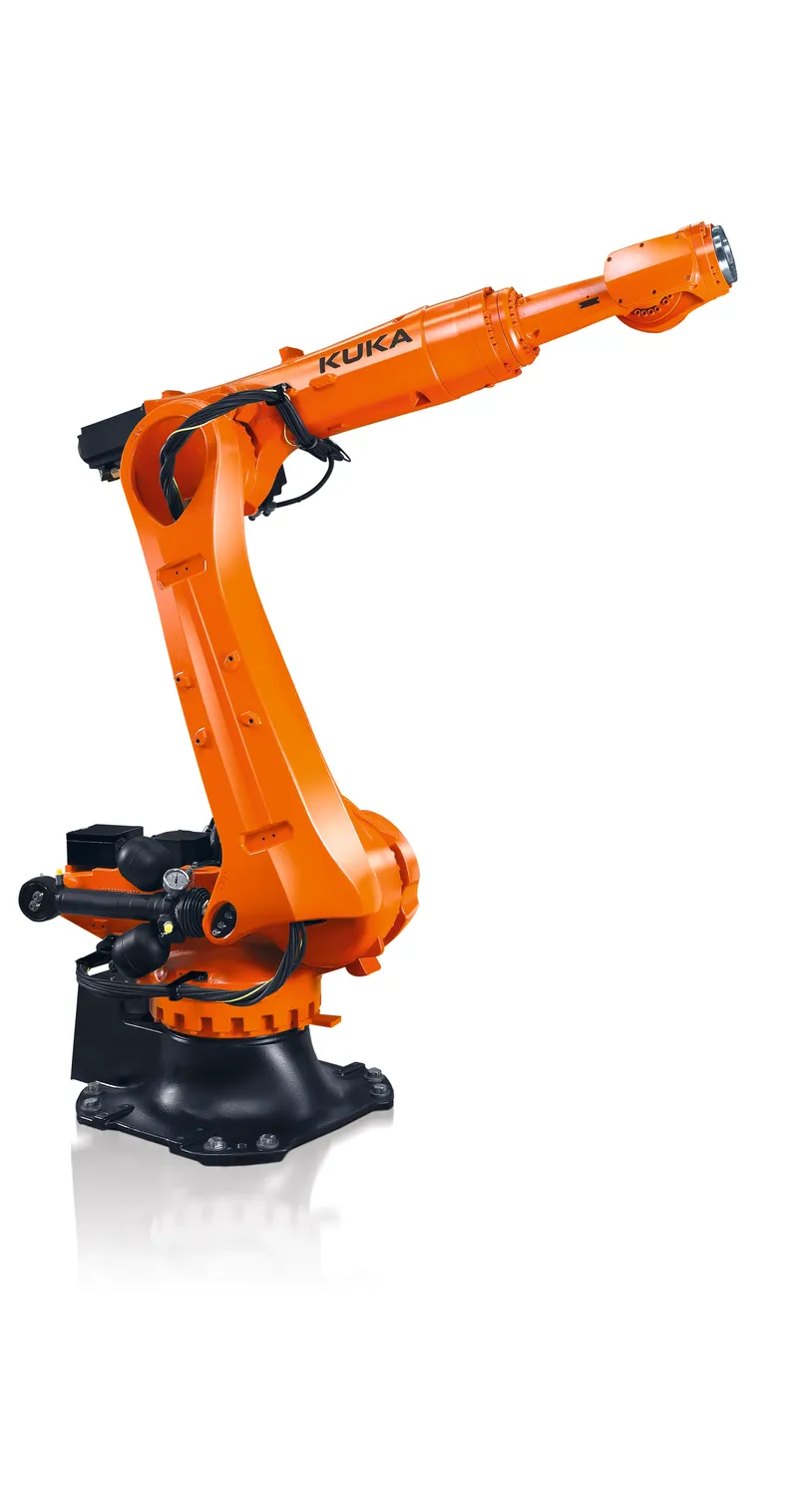

KR 300 R2700-2 C incl. KR C5 dualcab

MPN: U1078973
Category: High payload class

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Kuka U1078973?

The KR C5 dualcab cabinet offers two installation spaces for flexible equipment with robot controller, additional axis module or peripheral components on a mounting plate. All devices are powered by the 3-phase mains infeed in the cabinet. All required cables to the robots and additional kinematic systems as well as to other system control components are fed into the cabinet through a flexible cable inlet system. The devices are protected according to protection class IP54.

Specifications

Maximum payload	366 kg
Rated payload	300 kg
Maximum reach	2671 mm
Mounting position	Ceiling
Pose repeatability (ISO 9283)	0.05 mm
Number of axes	6
Ambient temperature during operation	0 °C to 55 °C (273 K to 328 K)
Ambient temperature during stor./transp.	-40 °C to 60 °C (233 K to 333 K)
Protection rating (IEC 60529)	IP54
Prot. rating, in-line wrist (IEC 60529)	IP65 / IP67
A1	105 °/s
A2	101 °/s
A3	107 °/s
A4	140 °/s
A5	113 °/s
A6	180 °/s
Height	720
Depth	600 mm
Rated supply voltage	AC 3x 380 V, AC 3x 400 V, AC 3x 415 V, AC 3x 440 V, AC 3x 480 V
Mains frequency	50/60 Hz ±1 Hz
Mains side fusing	min. 3x 32 A slow-blowing, max. 3x 63 A, slow-blowing, see rating plate
