Kuka 417249

MPN: 417249
Category: KP5-V2H2V HW

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Kuka 417249?

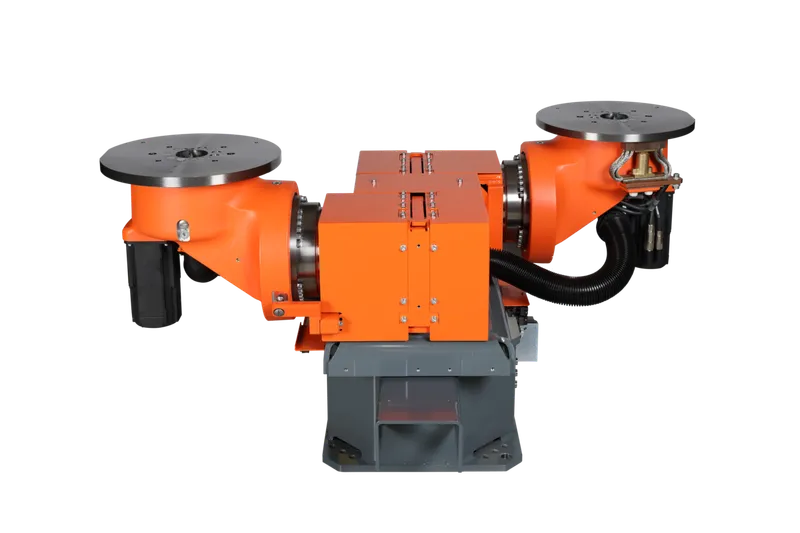

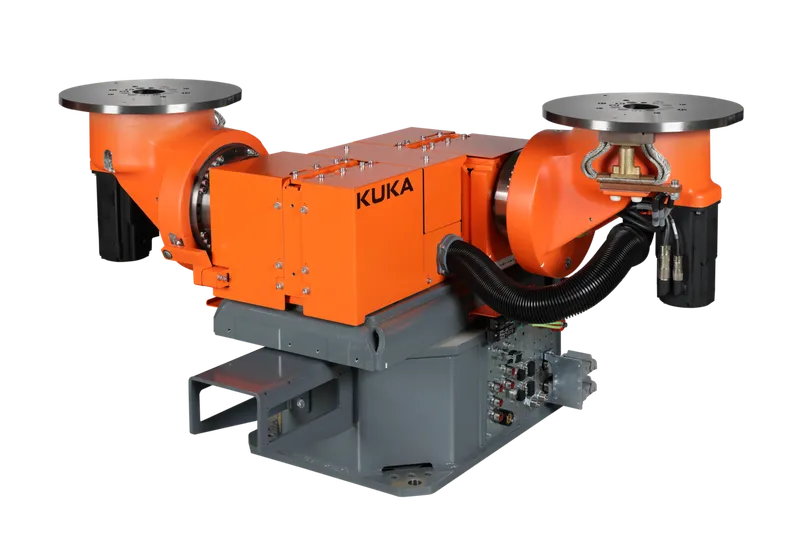

Kuka KP5-V2H2V750 R400 HW, manufacturer part number 417249. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Number of axes	5
Rated payload	750 kg
Loading height	863 mm
Tool radius	400 mm
Mounting position	Floor
Ambient temperature during operation	0 °C to 55 °C (273 K to 328 K)
Ambient temperature during stor./transp.	-40 °C to 60 °C (233 K to 333 K)
Protection rating (IEC 60529)	IP67
Hollow shaft diameter A1	120 mm
A1	±185 °
A1 with ES	±185 °
A2	0 ° / 90 °
A2 with ES	0 ° / 90 °
A3 with ES	±190 °
A4	0 ° / 90 °
A5 with ES	±190 °
Turning time 180° A1	3 s
Turning time 180° A3	1.8 s
Turning time 180° A5	1.8 s
Turning time 360° A3	3.2 s
Turning time 360° A5	3.2 s

417249: frequently asked questions

When can 417249 be shipped?

417249 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 417249 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 417249 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 417249, subject to availability and destination.
