Home / Kuka / KR QUANTEC-2 PA / Kuka 394136

Kuka 394136

MPN: 394136
Category: KR QUANTEC-2 PA

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Kuka 394136?

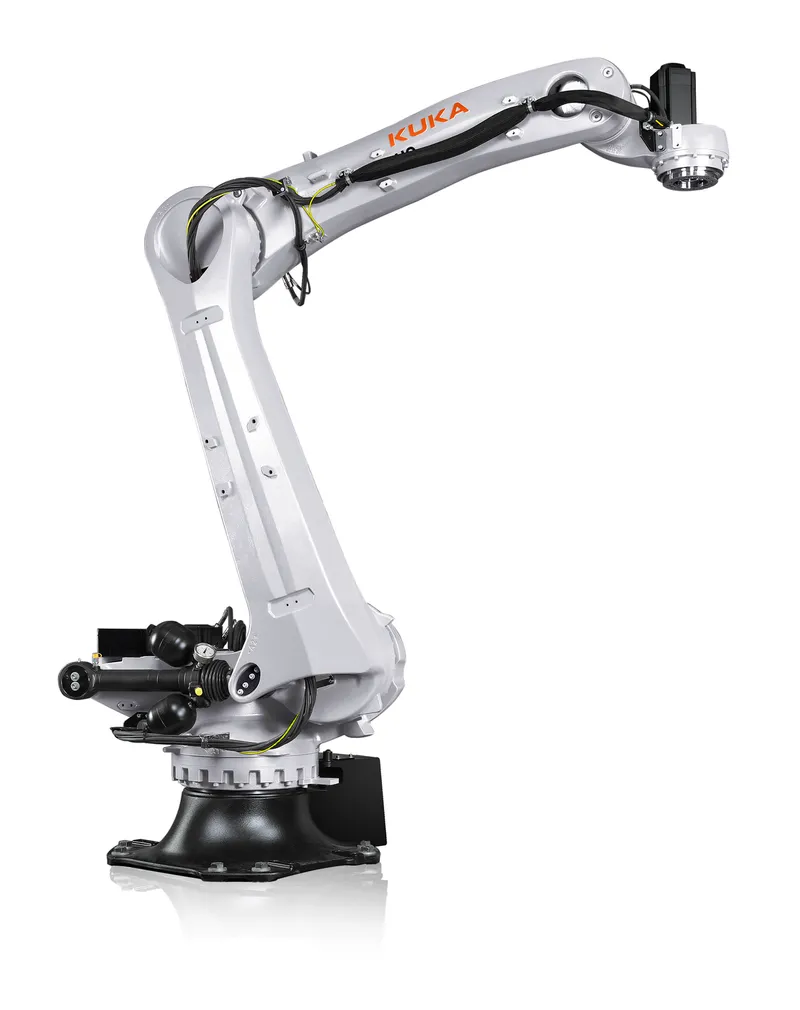

Kuka KR 180 R3200-2 PA-HO, manufacturer part number 394136. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Maximum payload	230 kg
Rated payload	180 kg
Maximum reach	3195 mm
Mounting position	Floor
Pose repeatability (ISO 9283)	0.07 mm
Number of axes	5
Ambient temperature during operation	0 °C to 55 °C (273 K to 328 K)
Ambient temperature during stor./transp.	-40 °C to 60 °C (233 K to 333 K)
Protection rating (IEC 60529)	IP65
Prot. rating, in-line wrist (IEC 60529)	IP65
A1	137 °/s
A2	111 °/s
A3	119 °/s
A5	225 °/s
A6	321 °/s

394136: frequently asked questions

When can 394136 be shipped?

394136 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 394136 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 394136 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 394136, subject to availability and destination.
