What is the Kuka 391564?

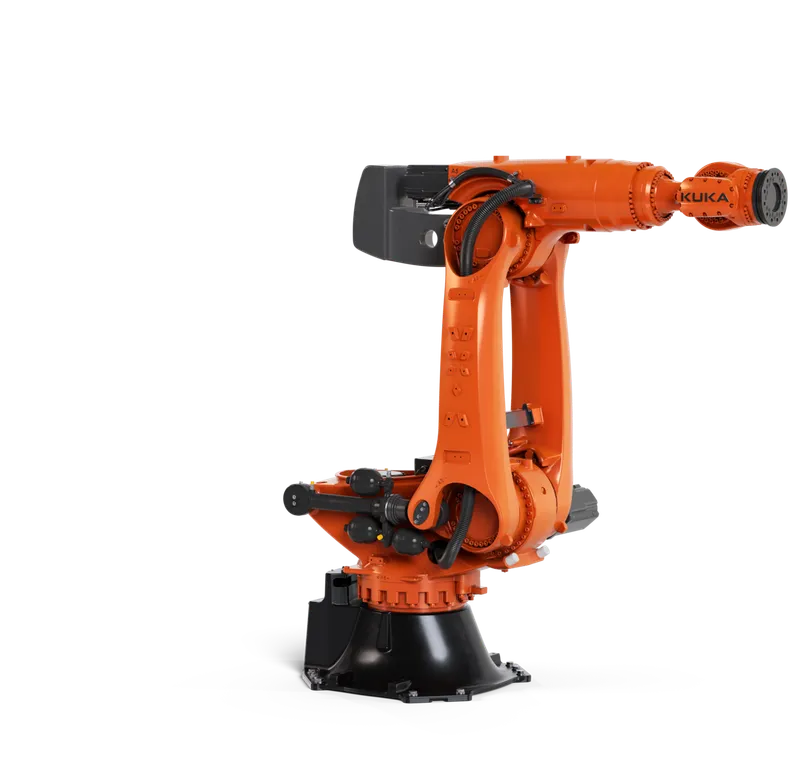

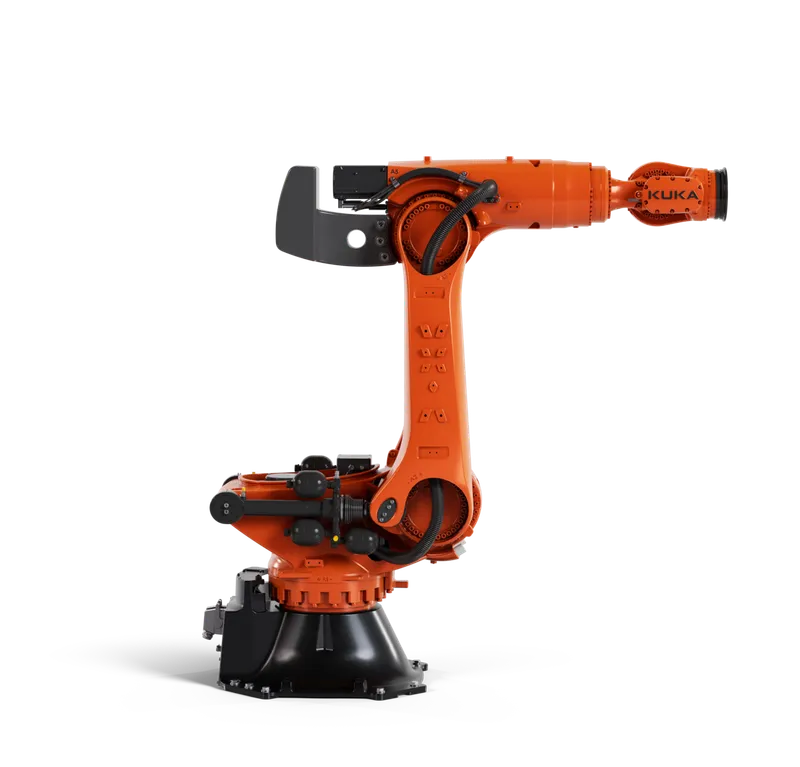

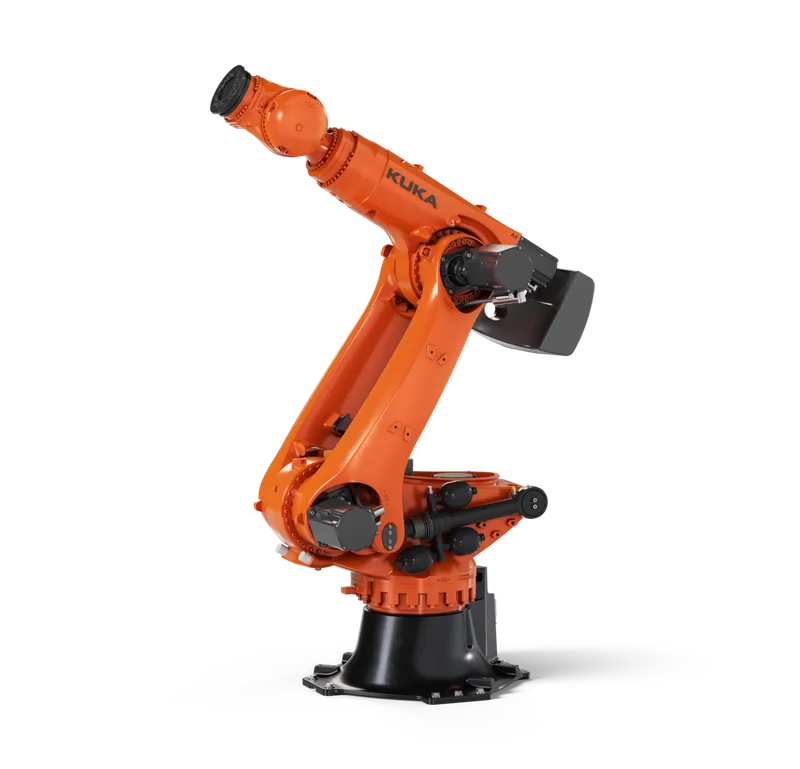

Kuka KR 480 R3700-2, manufacturer part number 391564. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Maximum payload	580 kg
Rated payload	480 kg
Maximum reach	3700 mm
Mounting position	Floor
Pose repeatability (ISO 9283)	0.08 mm
Number of axes	6
Ambient temperature during operation	0 °C to 55 °C (273 K to 328 K)
Ambient temperature during stor./transp.	-25 °C to 60 °C (248 K to 333 K)
Protection rating (IEC 60529)	IP65
Prot. rating, in-line wrist (IEC 60529)	IP65 / IP67
A1	80 °/s
A2	60 °/s
A3	60 °/s
A4	90 °/s
A5	90 °/s
A6	140 °/s
