What is the Kuka 368243?

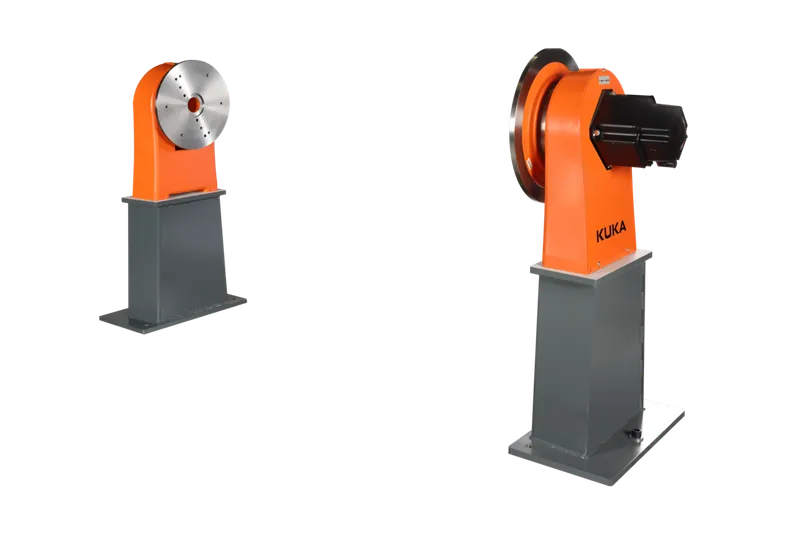

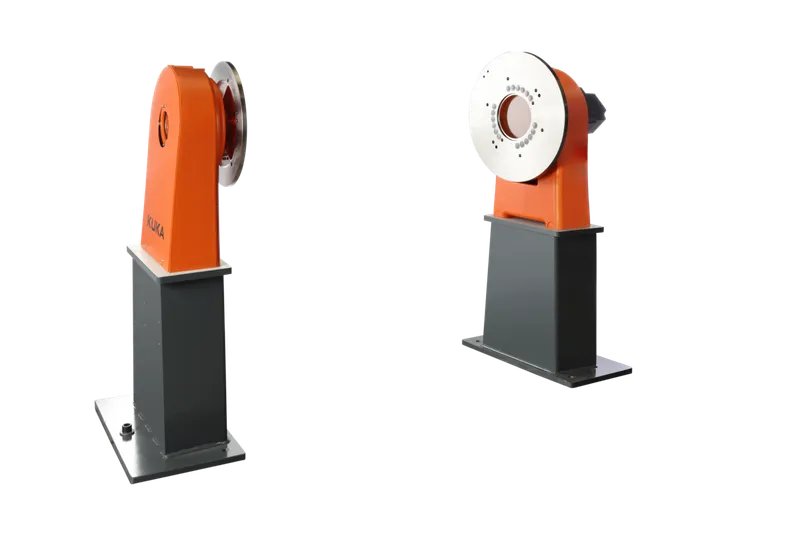

Kuka KP1-HC750 R800-2, manufacturer part number 368243. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Number of axes | 1 |
| Rated payload | 750 kg |
| Loading height | 840 mm |
| Tool radius | 800 mm |
| Mounting position | Floor |
| Ambient temperature during operation | 0 °C to 55 °C (273 K to 328 K) |
| Ambient temperature during stor./transp. | -40 °C to 60 °C (233 K to 333 K) |
| Protection rating (IEC 60529) | IP67 |
| Hollow shaft diameter counterbearing A1 | 68 mm |
| Pose repeatability A1 | 0.009 mm |
| A1 | Alternativtext wird verwendet! |
| A1 with ES | ±190 ° |
| Turning time 180° A1 | 2.7 s |
| Turning time 360° A1 | 4.4 s |
