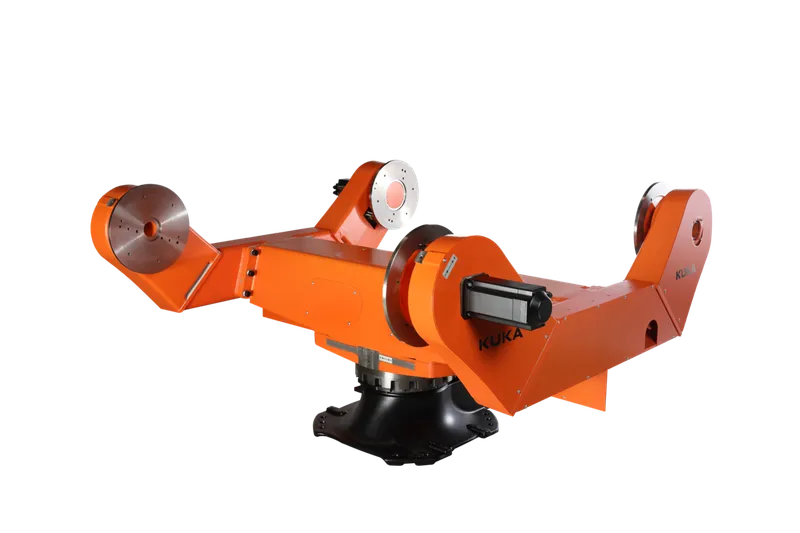

KP3-V2H1000 R600 L2000 LH835-2

Name: KP3-V2H1000 R600 L2000 LH835-2
Brand: Kuka
SKU: 365287

MPN: 365287 · Brand: Kuka

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	KP3-V2H-2
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0 kg

Shipping & availability

When can 365287 be shipped?

365287 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 365287 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 365287 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 365287, subject to availability and destination.

Specifications

Number of axes	3
Rated payload	1000 kg
Loading height	835 mm
Tool radius	600 mm
Mounting position	Floor
Ambient temperature during operation	0 °C to 55 °C (273 K to 328 K)
Ambient temperature during stor./transp.	-40 °C to 60 °C (233 K to 333 K)
Protection rating (IEC 60529)	IP67
Hollow shaft diameter A1	140 mm
Hollow shaft diameter counterbearing A2	68
Hollow shaft diameter counterbearing A3	68 mm
Distance between face plates	2000 mm
Pose repeatability A1	0.0023 mm
Pose repeatability A2	0.009 mm
Pose repeatability A3	0.009 mm
A1	±185 °
A1 with ES	±185 °
A2	Alternativtext wird verwendet!
A2 with ES	±190 °
A3 with ES	±190 °
Turning time 180° A1	3.9 s
Turning time 180° A2	2.3 s
Turning time 180° A3	2.3 s
Turning time 360° A2	3.9 s
Turning time 360° A3	3.9 s
