Home / Kuka / KP3-V2H-2 / Kuka 363429

Kuka

Kuka 363429

MPN: 363429
Category: KP3-V2H-2

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Kuka 363429?

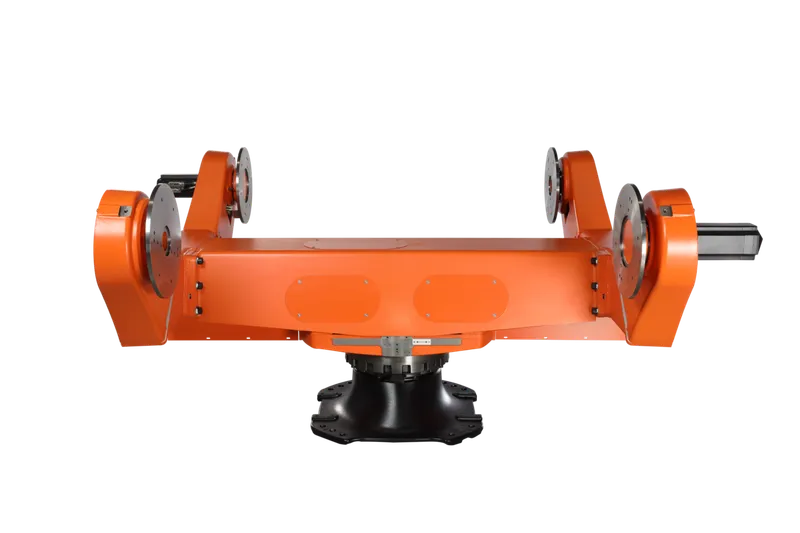

Kuka KP3-V2H500 R1000 L2800-2, manufacturer part number 363429. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Number of axes	3
Rated payload	500 kg
Loading height	950 mm
Tool radius	1000 mm
Mounting position	Floor
Ambient temperature during operation	0 °C to 55 °C (273 K to 328 K)
Ambient temperature during stor./transp.	-40 °C to 60 °C (233 K to 333 K)
Protection rating (IEC 60529)	IP67
Hollow shaft diameter A1	140 mm
Hollow shaft diameter counterbearing A2	68
Hollow shaft diameter counterbearing A3	68 mm
Distance between face plates	2800 mm
Pose repeatability A1	0.0023 mm
Pose repeatability A2	0.009 mm
Pose repeatability A3	0.009 mm
A1	±185 °
A1 with ES	±185 °
A2	Alternativtext wird verwendet!
A2 with ES	±190 °
A3 with ES	±190 °
Turning time 180° A1	3.6 s
Turning time 180° A2	2.5 s
Turning time 180° A3	2.5 s
Turning time 360° A2	4.2 s
Turning time 360° A3	4.2 s
