Home / Kuka / KP3-V2H-2 / Kuka 363263

Kuka

Kuka 363263

MPN: 363263
Category: KP3-V2H-2

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Kuka 363263?

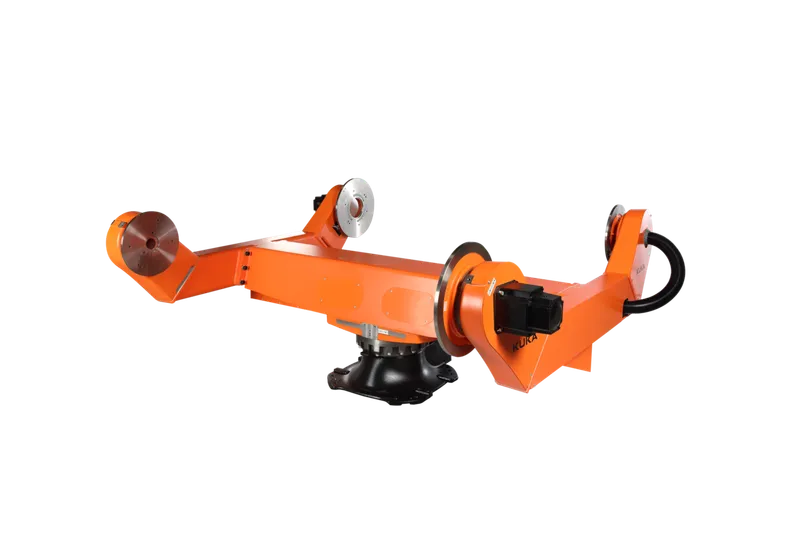

Kuka KP3-V2H1000 R600 L2000-2, manufacturer part number 363263. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Number of axes	3
Rated payload	1000 kg
Loading height	950 mm
Tool radius	600 mm
Mounting position	Floor
Ambient temperature during operation	0 °C to 55 °C (273 K to 328 K)
Ambient temperature during stor./transp.	-40 °C to 60 °C (233 K to 333 K)
Protection rating (IEC 60529)	IP67
Hollow shaft diameter A1	140 mm
Hollow shaft diameter counterbearing A2	68
Hollow shaft diameter counterbearing A3	68 mm
Distance between face plates	2000 mm
Pose repeatability A1	0.0023 mm
Pose repeatability A2	0.009 mm
Pose repeatability A3	0.009 mm
A1	±185 °
A1 with ES	±185 °
A2	Alternativtext wird verwendet!
A2 with ES	±190 °
A3	Alternativtext wird verwendet!
A3 with ES	±190 °
Turning time 180° A1	3.9 s
Turning time 180° A2	2.3 s
Turning time 180° A3	2.3 s
Turning time 360° A2	3.9 s
Turning time 360° A3	3.9 s

363263: frequently asked questions

When can 363263 be shipped?

363263 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 363263 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 363263 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 363263, subject to availability and destination.
