Available on request

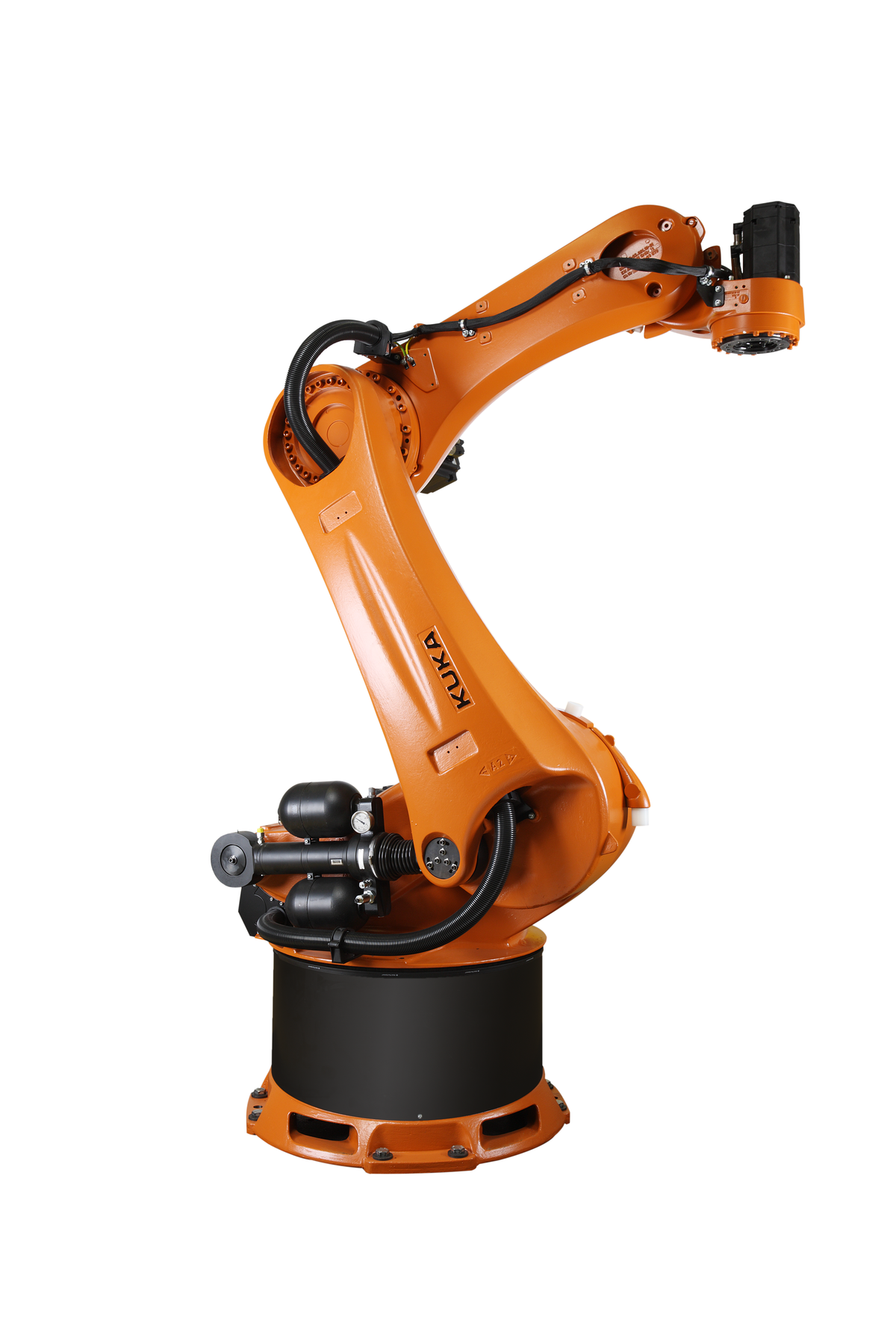

KR 470-2 PA
MPN: 195561 · Brand: Kuka
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | KR 470 PA |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0 kg |
Shipping & availability
When can 195561 be shipped?
195561 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 195561 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 195561 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 195561, subject to availability and destination.
Specifications
Specifications
| Maximum payload | 509 kg |
| Rated payload | 470 kg |
| Maximum reach | 3150 mm |
| Mounting position | Floor |
| Pose repeatability (ISO 9283) | 0.08 mm |
| Number of axes | 5 |
| Ambient temperature during operation | 0 °C to 55 °C (273 K to 328 K) |
| Ambient temperature during stor./transp. | -40 °C to 60 °C (233 K to 333 K) |
| Protection rating (IEC 60529) | IP65 |
| Prot. rating, in-line wrist (IEC 60529) | IP65 |
| A1 | 84 °/s |
| A2 | 78 °/s |
| A3 | 73 °/s |
| A5 | Alternativtext wird verwendet! |
| A6 | 177 °/s |
