Keyence VT5-W07M

Name: Keyence VT5-W07M
Brand: Keyence
SKU: VT5-W07M

MPN: VT5-W07M · Brand: Keyence

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Touch Panel Display
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can VT5-W07M be shipped?

VT5-W07M is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up VT5-W07M in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for VT5-W07M and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VT5-W07M, subject to availability and destination.

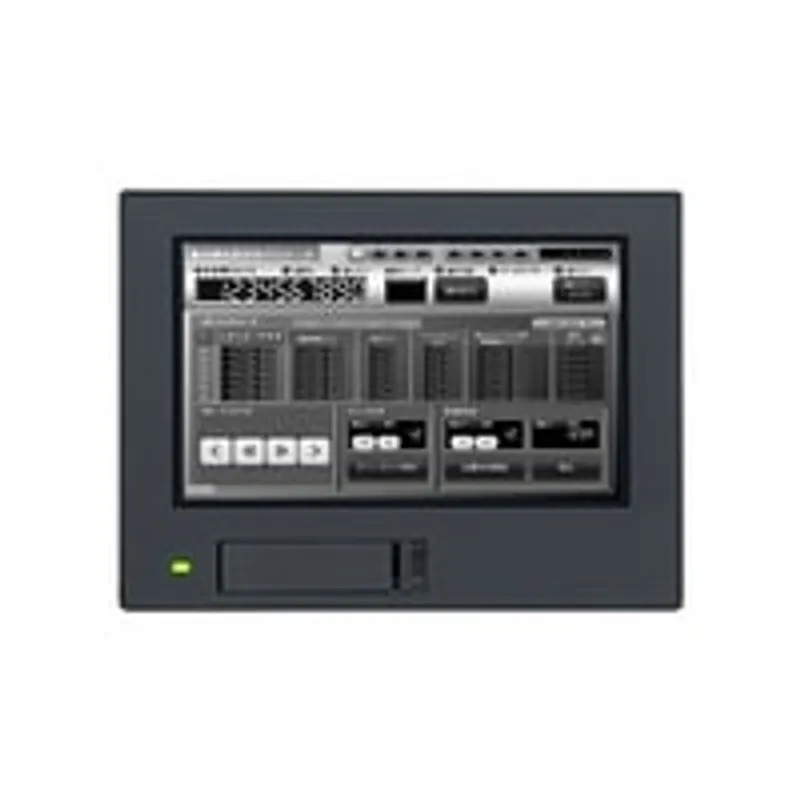

7" widescreen TFT monochrome touch panel display. VT5-W07M. Series: Touch Panel Display. Series code: VT5 series

Specifications

Model Name	7" widescreen TFT monochrome touch panel display
Model Code	VT5-W07M
Series Title	Touch Panel Display
Series Code	VT5 series
Data Sheet URL	https://www.keyence.com/download/download/confirmation/?dlSeriesId=WS_135959&dlModelId=PM_1445W7M&dlSiteId=1&dlLanguageId=en-US&dlLangType=en-US
CAD URL	https://www.keyence.com/products/controls/hmi/vt5/downloads/?mode=cd&modelId=PM_1445W7M
Manuals URL	https://www.keyence.com/products/controls/hmi/vt5/downloads/?mode=ma&modelId=PM_1445W7M
Model	VT5-W07M
General specifications - Current consumption.	900 mA or less
General specifications - Power voltage	24 VDC ±20%
General specifications - Vibration resistance	Half amplitude: 3.5 mm 0.14"*1
General specifications	Acceleration: 9.8 m/s2 32.2'/s2*1
General specifications - Structure	Construction with IP65F or equivalent dust and water drop protection only for the front operating part of the panel embedded type*2
General specifications - Overvoltage category	I
General specifications - Pollution degree	2
General specifications - Noise resistance	1500 Vp-p or more, Pulse duration: 1 μs, 50 ns (based on noise simulator)
General specifications - Withstand voltage	1500 VAC for one minute (between power terminal and housing)
General specifications - Insulation resistance	50 MΩ or more (between power terminal and housing, with 500 VDC megohmmeter)
General specifications - Operating environment	No dust, corrosive gases, or other harmful substances present
General specifications - Ambient operating temperature	0 to 50°C 32 to 122°F*3
General specifications - Ambient operating humidity	20 to 85% (no condensation)*4
General specifications - Storage ambient temperature	−20 to +60°C -4 to +140°F (no freezing)
General specifications - Ambient storage humidity	20 to 85% (no condensation)*4
General specifications - Weight	Approx. 650 g
Performance specifications - Displaypanel	TFT LCD
Performance specifications	256 grayscale
Performance specifications - Data backup	Flash ROM
Performance specifications - Backlightlamp	White LED (Non-replaceable)
Performance specifications - Touchswitch	Analog resistive
Performance specifications - Screen data internal memory	128 MB
Performance specifications - Calendar timer	Accuracy: ±40 seconds per month at 25°C 77°F, Backup: Primary lithium battery (Service life: 5 years or more at 25°C 77°F)
