Available on request

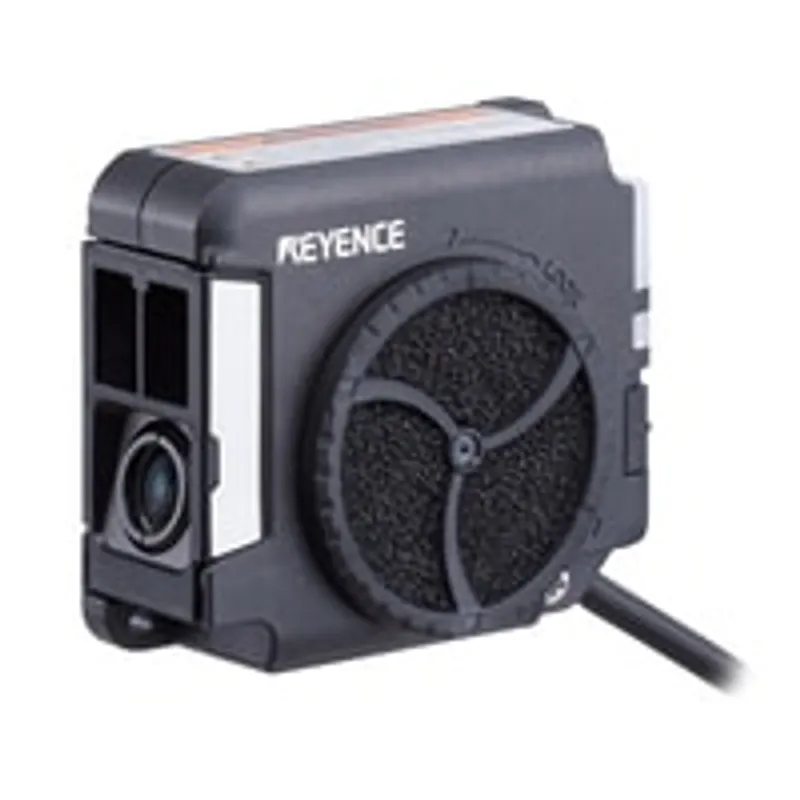

Keyence SJ-L005F
MPN: SJ-L005F · Brand: Keyence
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Compact Fan Static Eliminator |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.1 kg |
Shipping & availability
When can SJ-L005F be shipped?
SJ-L005F is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up SJ-L005F in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for SJ-L005F and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SJ-L005F, subject to availability and destination.
Compact Fan Static Eliminator. SJ-L005F. Series: Compact Fan Static Eliminator. Series code: SJ-LF series
Specifications
Specifications
| Model Name | Compact Fan Static Eliminator |
| Model Code | SJ-L005F |
| Series Title | Compact Fan Static Eliminator |
| Series Code | SJ-LF series |
| Data Sheet URL | https://www.keyence.com/download/download/confirmation/?dlSeriesId=WS_SR57335&dlModelId=PM_135L05F&dlSiteId=1&dlLanguageId=en-US&dlLangType=en-US |
| CAD URL | https://www.keyence.com/products/static/ionizer/sj-l/downloads/?mode=cd&modelId=PM_135L05F |
| Manuals URL | https://www.keyence.com/products/static/ionizer/sj-l/downloads/?mode=ma&modelId=PM_135L05F |
| Model | SJ-L005F |
| Voltage application method | High frequency AC method |
| Applied voltage | 3 kVAC |
| Ion balance | ±10 V *1 |
| Installation distance | 50 mm 1.97 " or greater |
| Maximum air speed | 7 m/s *1 |
| Maximum air flow | 0.16 m3/min |
| Ozone concentration | 0.05 ppm or less *1 |
| Control input | Can switch between “non-voltage input” and “voltage input” *2*3For non-voltage input: ON voltage 2 V or lower, OFF current 0.1 mA or lower, ON current 2 mA or lower (short circuit)For voltage input: Maximum input rating 30 V , ON voltage 18 V or higher, OFF current 0.1 mA or lower, ON current 1 mA or lower (at 30 V) |
| Control output | Open collector output: 30 V DC or lessMaximum 50 mA or lower, Residual voltage 1 V or lowerSwitchable between NPN/PNP settings *2*3 |
| Power supply - Power voltage | 24 V DC ±10 % (including ripple) or 12 V DC(dedicated AC adapter OP-88020/87722 *4) |
| Power supply - Power consumption | 310 mA or less (for 24 V DC)600 mA or less (for 12 V DC) |
| Environmental resistance - Ambient temperature | 0 to +50 °C 32 to +122 °F(When using OP-87722, 0 to +40 °C 32 to +104 °F) |
| Environmental resistance - Relative humidity | 35 to 65 % RH (assuming no condensation) |
| Environmental resistance - Overvoltage category | I |
| Environmental resistance - Pollution degree | 2 |
| Weight | Approx. 100 g (main unit weight) |
