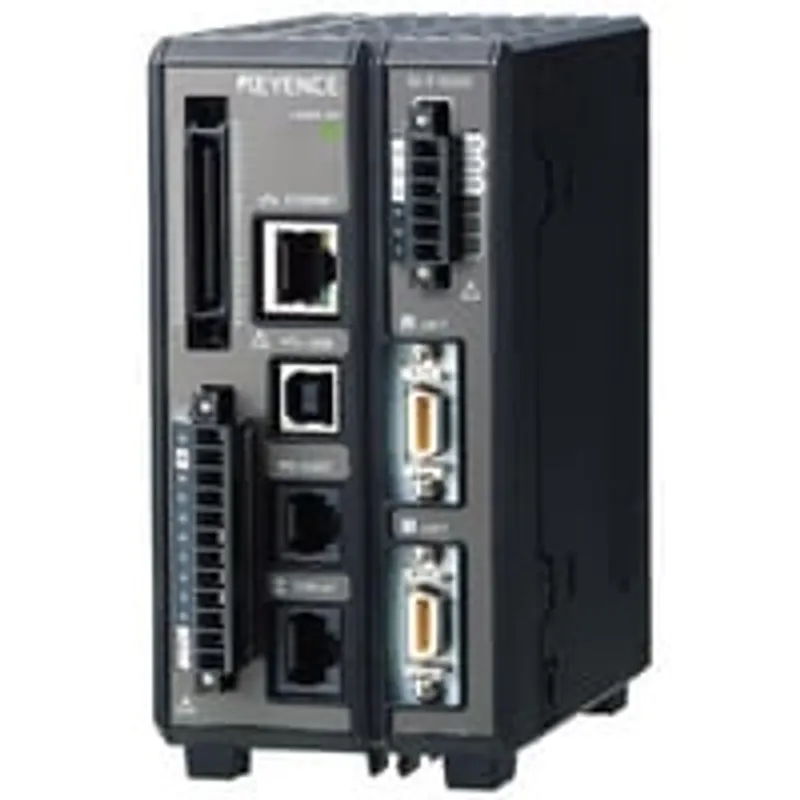

Keyence SI-F1003

Controller, Not Subject to Export Control.

MPN: SI-F1003
Category: Micro-head Spectral-interference Laser Displacement Meter

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Keyence parts? We buy surplus →

What is the Keyence SI-F1003?

Controller, Not Subject to Export Control. SI-F1003. Series: Micro-head Spectral-interference Laser Displacement Meter. Series code: SI-F series

Specifications

Model Name	Controller, Not Subject to Export Control
Model Code	SI-F1003
Series Title	Micro-head Spectral-interference Laser Displacement Meter
Series Code	SI-F series
Data Sheet URL	https://www.keyence.com/download/download/confirmation/?dlSeriesId=WS_SR45583&dlModelId=PM_216F103&dlSiteId=1&dlLanguageId=en-US&dlLangType=en-US
CAD URL	https://www.keyence.com/products/measure/spectral/si-f/downloads/?mode=cd&modelId=PM_216F103
Manuals URL	https://www.keyence.com/products/measure/spectral/si-f/downloads/?mode=ma&modelId=PM_216F103
Model	SI-F1003*1
Type	Main Controller Separate type*2
No. of connectable spectrum units	2
Display - Minimum display unit	0.001 µm
Display - Display range	±999.999 µm to ±9999.99 mm (7 settings selectable)
Display - Display cycle	10 times/sec
Terminal block - Laser remote interlock input	Non-voltage or voltage input 3.4
Terminal block - Analog voltage output	±10 V x 2 outputs, Output impedance: 100 Ω*4
Terminal block - Analog current output	4 to 20 mA x 2 outputs, Maximum load resistance: 350 Ω*4
Terminal block - Alarm output	NPN open-collector output (N.C.)*4
Terminal block - General comparator output	NPN open-collector output 54
Expansion connector - TIMING2 input	Non-voltage or voltage input 3.4
Expansion connector - Program switch input	Non-voltage input x 3 inputs*4
Expansion connector - Alarm output	NPN open-collector output (N.C.)*4
Expansion connector - Comparator/ binary output	Measured value data output (21 bits) OUT selectable NPN open-collector output*4
Expansion connector	NPN open-collector output 54
RS-232C interface	Measured data output and control input/output (Maximum baud rate: 115200 bps, selectable)
USB interface	In conformity with USB Revision 2.0 HI-SPEED (USB 1.1 Full-SPEED compatible)
Ethernet interface	100BASE-TX/10BASE-T
Major functions	12 Out simultaneous measurementcalculation, average, filter, scaling measurement, measured value alarm, tolerance setting, auto-zero, data storage, light monitor, 8-program memory,interferometer mode, mask, connection of setting support software, etc.
Rating - Power voltage	24 VDC ±10 %, Ripple (P-P) 10 % or less
Rating - Current consumption	One head connected: 0.6 A or less. Six heads connected: 1.5 A or less.
Environmental resistance - Ambient temperature	0 to +50 °C 32 to 122 °F*6
Environmental resistance - Relative humidity	35 to 85 % RH (No condensation)
Environmental resistance - Vibration resistance	10 to 55 Hz, Double amplitude 0.5 mm 0.02", 2 hours in each of the X, Y, and Z directions
Weight	Approx. 600 g
