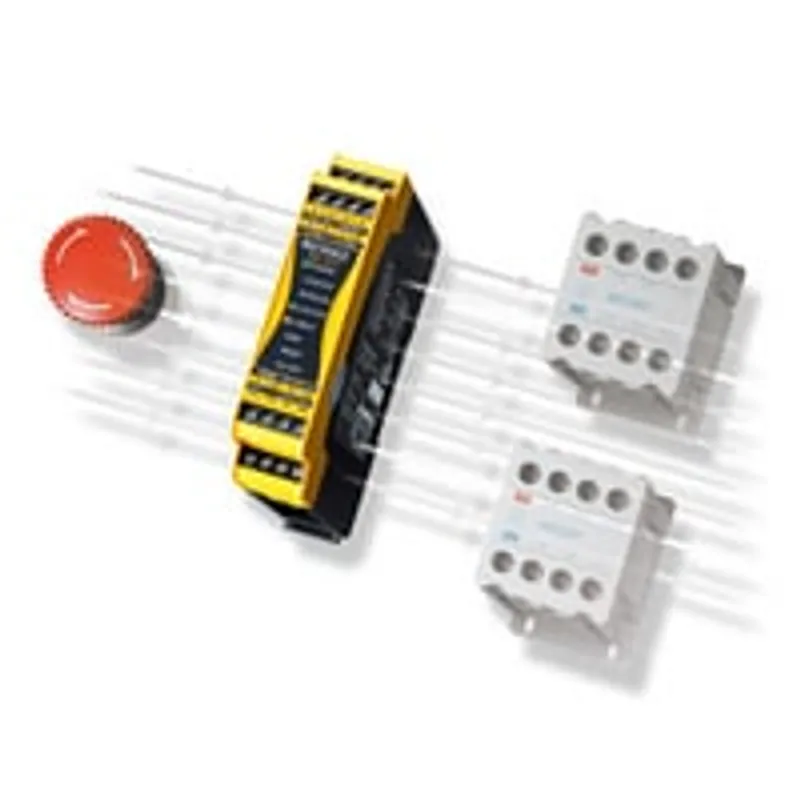

Keyence SC-S11
MPN: SC-S11 · Brand: Keyence
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Safety Controller |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.16 kg |
Shipping & availability
When can SC-S11 be shipped?
SC-S11 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up SC-S11 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for SC-S11 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SC-S11, subject to availability and destination.
Main Unit. SC-S11. Series: Safety Controller. Series code: SC series
Specifications
Specifications
| Model Name | Main Unit |
| Model Code | SC-S11 |
| Series Title | Safety Controller |
| Series Code | SC series |
| Data Sheet URL | https://www.keyence.com/download/download/confirmation/?dlSeriesId=WS_SR_sc&dlModelId=PM_199S11&dlSiteId=1&dlLanguageId=en-US&dlLangType=en-US |
| CAD URL | https://www.keyence.com/products/safety/safety-controller/sc/downloads/?mode=cd&modelId=PM_199S11 |
| Manuals URL | https://www.keyence.com/products/safety/safety-controller/sc/downloads/?mode=ma&modelId=PM_199S11 |
| Model | SC-S11 |
| Response time | 25 ms (safety output ON to OFF, IEC/EN60204-1 stop category 0), 70 ms (safety output OFF to ON) |
| Safety output (S-OUTPUT) - Output | Two PNP outputs |
| Safety output (S-OUTPUT) - Max. load current | 500 mA |
| Safety output (S-OUTPUT) - Residual voltage (when ON) | 2.5 V maximum (with a load current of 500 mA) |
| Safety output (S-OUTPUT) - Leakage current | 1.2 mA maximum |
| Safety output (S-OUTPUT) - Max. capacitive load | 2.2 µF (with a load resistance of 100 Ω) |
| Safety output (S-OUTPUT) - Load wiring length | 30 m maximum |
| Safety input (S-INPUT, enable input) - Input type | Contact output device connection or PNP output device connection |
| Safety input (S-INPUT, enable input) - Short-circuit current | Approx 5mA |
| Safety input (S-INPUT, enable input) - ON/OFF voltage | Voltage when product turned on: 19 V or more, voltage when product turned off: 5 V or less |
| Safety input (S-INPUT, enable input) - Wiring length | 30 m maximum |
| Safety related input - Input type | Non-voltage contact input (EDM input, reset input) |
| Safety related input - Short-circuit current | EDM input: Approx. 10 mA, Reset input: Approx. 5 mA (EDM input, reset input) |
| Safety related input - Wiring length | 30 m max. (EDM input, reset input) |
| Non-safety output - Output | PNP/NPN totem pole output (auxiliary output, lockout output) |
| Non-safety output - Max. load current | 50mA (auxiliary output, lockout output) |
| Non-safety output - Load wiring length | 10 m maximum (auxiliary output, lockout output) |
| Non-safety input - Input type | No-voltage contact input or PNP or NPN open-collector input (external off input) |
| Non-safety input - Short-circuit current | Approx 5mA (external off input) |
| Non-safety input - ON/OFF voltage | Voltage when product turned on: 5 V or less or 19 V or more, voltage when product turned off: open or 9 V to 15 V (external off input) |
| Non-safety input - Wiring length | 10 m maximum (external off input) |
| Protection circuit | Power supply reverse polarity protection, overcurrent protection for each output, short-circuit protection , surge protection |
| Approved standards - EMC | IEC 61496-1, EN61496-1, UL61496-1 |
| Approved standards | EN55011 Class A, FCC Part 15 Class A, ICES-003 Issue 4 Class A |
| Approved standards - Safety | ISO13849-1:2015 (category 4, PLe), UL1998, IEC/EN61496-1, UL508,*1 |
| Rating - Power voltage | 24 VDC ±10 %, Ripple (P-P) 10 % or less |
| Rating - Current consumption | 1.3 A (at maximum load) |
| Environmental resistance - Enclosure rating | IP20 (IEC60529)Must be installed within a control panel rated at IP54 or higher. |
| Environmental resistance - Pollution degree | 2 (IEC60664/EN50178) |
| Environmental resistance - Overvoltage category | 2 (IEC60664, EN50178) |
| Environmental resistance - Insulation resistance | 100 MΩ or more (tested with a 500 VDC megger) between the internal circuit and the external case |
| Environmental resistance - Operating ambient temperature | -10 to +55 °C 14 to 131 °F (No freezing) |
| Environmental resistance - Operating relative humidity | 35 to 85 % RH (No condensation) |
| Environmental resistance - Storage temperature | -20 to +65 °C -4 to 149 °F (No freezing) |
| Environmental resistance - Storage relative humidity | 35 to 85 % RH |
| Environmental resistance - Withstand voltage | 1,500 VAC, 50/60 Hz for 1 minute between the internal circuit and the external case |
| Environmental resistance - Vibration resistance | 10 to 55 Hz, Double amplitude 0.7 mm 0.03", 20 sweeps in each of the X, Y, and Z directions |
| Environmental resistance - Shock resistance | 100 m/s2 (Approx. 10 G), 16 ms pulse, 1,000 times in each of the X, Y, and Z directions |
| Material | Polycarbonate (UL94-V2) |
| Weight | 160 g or less |
