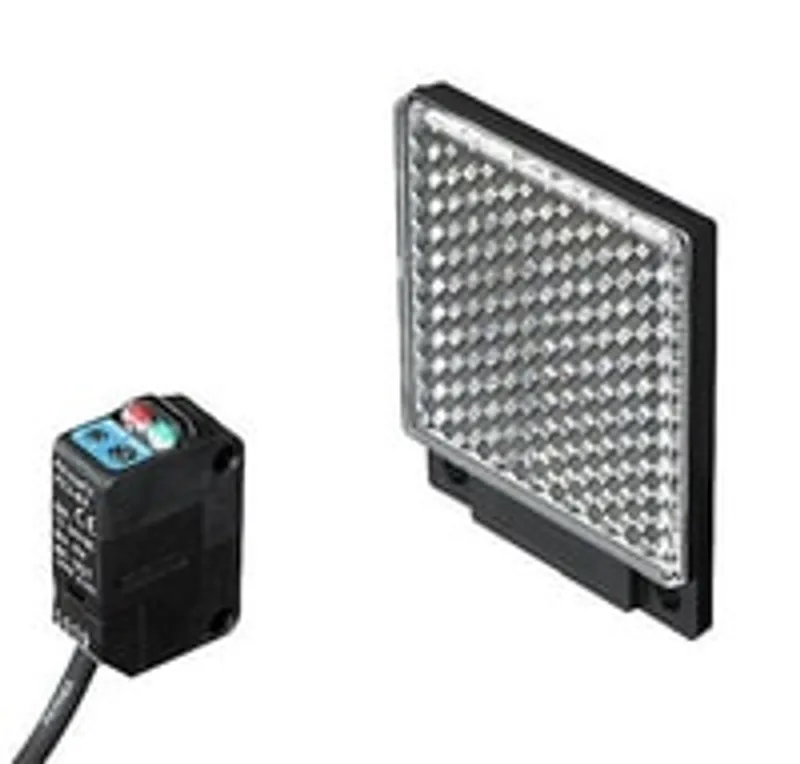

Keyence PZ2-62
MPN: PZ2-62 · Brand: Keyence
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Built-in amplifier photoelectric sensors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.05 kg |
Shipping & availability
When can PZ2-62 be shipped?
PZ2-62 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up PZ2-62 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for PZ2-62 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for PZ2-62, subject to availability and destination.
Square retro-reflective Cable Type, NPN. PZ2-62. Series: Built-in amplifier photoelectric sensors. Series code: PZ2 series
Specifications
Specifications
| Model Name | Square retro-reflective Cable Type, NPN |
| Model Code | PZ2-62 |
| Series Title | Built-in amplifier photoelectric sensors |
| Series Code | PZ2 series |
| Data Sheet URL | https://www.keyence.com/download/download/confirmation/?dlSeriesId=WS_SR_pz2&dlModelId=PM_031262&dlSiteId=1&dlLanguageId=en-US&dlLangType=en-US |
| CAD URL | https://www.keyence.com/products/sensor/photoelectric/pz2/downloads/?mode=cd&modelId=PM_031262 |
| Manuals URL | https://www.keyence.com/products/sensor/photoelectric/pz2/downloads/?mode=ma&modelId=PM_031262 |
| Model | PZ2-62 |
| Type | Retro-reflective model (for transparent object detection) |
| Detection distance | 500 mm (with R-2) |
| Light source | Red LED |
| Detectable object | Transparent and opaque |
| Sensitivity adjustment | 1-turn trimmer (240°) |
| Response time | 1 ms max. |
| Operation mode | LIGHT-ON/DARK-ON (switch-selectable) |
| Indicator lamp | Output indicator: Red LED,Stable operation indicator: Green LED |
| Control output | NPN: 100 mA max. (40 V max.), Residual voltage: 1 V max. |
| Protection circuit | Reversed polarity, overcurrent protection, surge absorber |
| Rating - Power voltage | 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less |
| Rating - Current consumption | 35 mA or less |
| Environmental resistance - Enclosure rating | IP67 |
| Environmental resistance - Ambient light | Incandescent lamp: 5,000 lux max., Sunlight: 20,000 lux max. |
| Environmental resistance - Ambient temperature | -20 to +55 °C -4 to 131 °F (No freezing) |
| Environmental resistance - Relative humidity | 35 to 85 % RH (No condensation) |
| Environmental resistance - Vibration resistance | 10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions |
| Environmental resistance - Shock resistance | 1,000 m/s2, 6 times in each of the X, Y, and Z directions |
| Case material | Glass-fiber reinforced plastic |
| Weight | Approx. 50 g (including 2-m 6.6' connector cable) |
