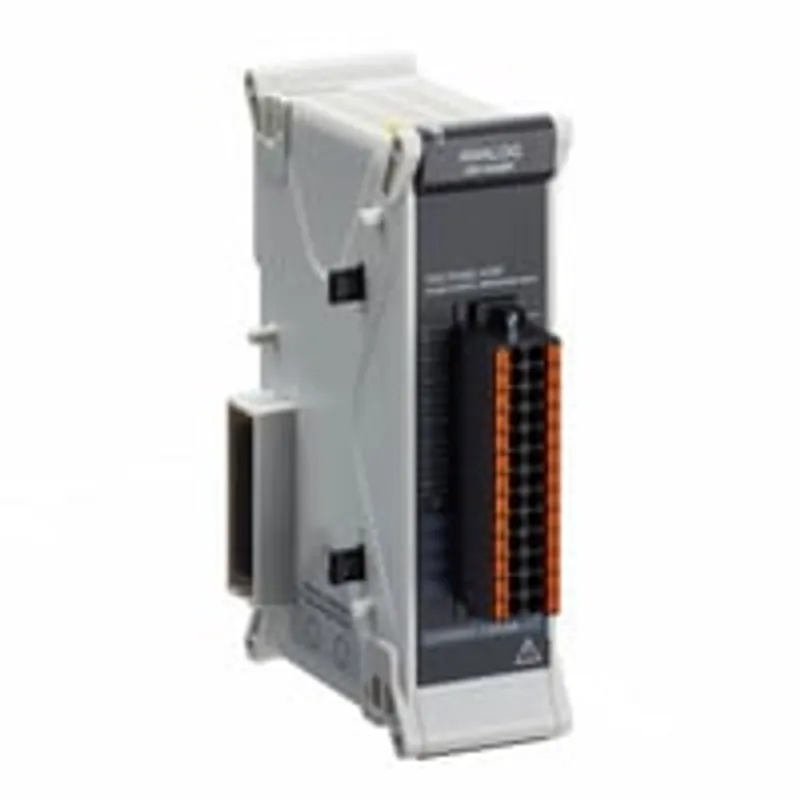

Keyence NR-HA08P

Multi-input Data Logger

MPN: NR-HA08P
Category: Multi-input Data Logger

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Keyence parts? We buy surplus →

What is the Keyence NR-HA08P?

High-speed analog measurement unit (Push-type terminal block). NR-HA08P. Series: Multi-input Data Logger. Series code: NR-X series

Specifications

Model Name	High-speed analog measurement unit (Push-type terminal block)
Model Code	NR-HA08P
Series Title	Multi-input Data Logger
Series Code	NR-X series
Data Sheet URL	https://www.keyence.com/download/download/confirmation/?dlSeriesId=WS_SR57362&dlModelId=PM_117HA8P&dlSiteId=1&dlLanguageId=en-US&dlLangType=en-US
CAD URL	https://www.keyence.com/products/daq/data-loggers/nr-x/downloads/?mode=cd&modelId=PM_117HA8P
Manuals URL	https://www.keyence.com/products/daq/data-loggers/nr-x/downloads/?mode=ma&modelId=PM_117HA8P
Model	NR-HA08P *1
Input method	Single-end input / Balanced differential input selectionChannels not insulated from each other, input channels insulated from other units (PC)
Number of channels	Single-end: 8 ch2 (Differential: 4 ch) / Current: 4 ch3
Measurement cycle	Maximum sampling cycle: 1 μs (1 MHz) to 60 s
A/D converting system	Successive approximation
A/D resolution	14 bit
Input frequency band	250 kHz (−3 dB typ.)
Input impedance - Voltage	1 MΩ ±1%
Input impedance - Current	250 Ω ±1%
Input type - Voltage	±10 V, ±5 V, ±2.5 V, ±1 V, ±0.5 V, ±0.25 V
Input type - Current	±20 mA
Maximum input rating - Voltage range	±30 V
Maximum input rating - Current range	±30 mA
Withstand voltage	300 VAC (50/60 Hz), 1 minute
Measurable range	±10 V: −11.000 to +11.000 V±5 V: −5.500 to +5.500 V±2.5 V: −2.7500 to +2.7500 V±1 V: −1.1000 to +1.1000 V±0.5 V: −550.0 to +550.0 mV±0.25 V: −275.00 to +275.00 mV±20 mA: −22.000 to +22.000 mA
Measurement accuracy - Zero-point accuracy	±0.03% of F.S.
Measurement accuracy - DC amplitude accuracy	±0.1% of F.S. (10 V/5 V/2.5 V/20 mA range at 16 averages, 1 V/0.5 V/0.25 V range at 128 averages)
Display resolution	±10 V: 1 mV±5 V: 1 mV±2.5 V: 0.1 mV±1 V: 0.1 mV±0.5 V: 0.1 mV±0.25 V: 0.01 mV±20 mA: 1 μA
Buffer memory	4M data*4
Warm up time	15 minutes or more
Power supply	3.3 W or less
Environmental resistance - Ambient temperature	0 to +40°C 32°F to 104°F
Environmental resistance - Relative humidity	10 to 85% RH (no condensation)
Weight	Approx. 170 g 6.00 oz (including approx. 20 g 0.71 oz for the OP-88521 (NR-HA08P terminal block))
