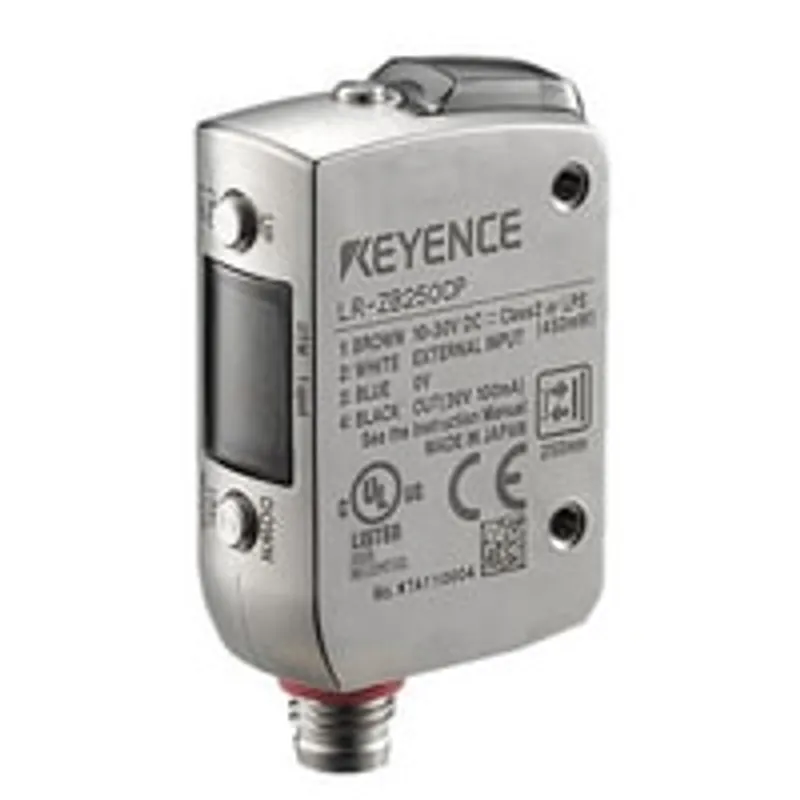

Keyence LR-ZB250CP
MPN: LR-ZB250CP · Brand: Keyence
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Self-contained CMOS Laser Sensor |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.06 kg |
Shipping & availability
When can LR-ZB250CP be shipped?
LR-ZB250CP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up LR-ZB250CP in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for LR-ZB250CP and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LR-ZB250CP, subject to availability and destination.
Rectangular w/ M8 connector Type, 250 mm. LR-ZB250CP. Series: Self-contained CMOS Laser Sensor. Series code: LR-Z series
Specifications
Specifications
| Model Name | Rectangular w/ M8 connector Type, 250 mm |
| Model Code | LR-ZB250CP |
| Series Title | Self-contained CMOS Laser Sensor |
| Series Code | LR-Z series |
| Data Sheet URL | https://www.keyence.com/download/download/confirmation/?dlSeriesId=WS_SR53790&dlModelId=PM_243B5CP&dlSiteId=1&dlLanguageId=en-US&dlLangType=en-US |
| CAD URL | https://www.keyence.com/products/sensor/photoelectric/lr-z/downloads/?mode=cd&modelId=PM_243B5CP |
| Manuals URL | https://www.keyence.com/products/sensor/photoelectric/lr-z/downloads/?mode=ma&modelId=PM_243B5CP |
| Model | LR-ZB250CP |
| Type | Distance based laser sensor |
| Appearance | Rectangular |
| Output | PNP |
| Cable connection | M8 connector, 4-pin |
| Detectable distance | 35 to 250 mm 1.38" to 9.84" (215 to 0)*1 |
| Standard detectable deviation | 35 to 180 mm 1.38" to 7.09": 9 mm 0.35"180 to 250 mm 7.09" to 9.84": 25 mm 0.98" |
| Display resolution | 1 to 3 (1 to 3 mm 0.04" to 0.12") |
| Spot size | Approx. 2.4 × 1.2 mm 0.09" × 0.05" at 250 mm 9.84" |
| Response time | 1.5 ms / 10 ms / 50 ms selectable |
| Light source - Type | Red laser (660 nm) |
| Light source - Laser class | Class 1 laser product(IEC60825-1, FDA (CDRH) Part1040.10*2) |
| Function - Indicator | 3-digit 7-segment display (red),output indicator (yellow),DATUM indicator (orange),1 spot indicator (green) |
| Function - Timer | OFF/ON delay/OFF delay/One-shot |
| Specifications - Power voltage | 10 to 30 VDC, including 10% ripple (P-P), Class 2 or LPS |
| Specifications - Power consumption | 450 mW or less (18 mA or less at 24 V, 34 mA or less at 12 V) |
| Specifications - Control output | PNP Open collector,Applied voltage 30 VDC or less, Control current 100 mA or less, Residual voltage 1.2 V or less at 10 mA or less, 2 V or less at 10 to 100 mA |
| Specifications - Protection circuit | Protection against reverse power connection, output overcurrent, output surge, reverse output connection |
| Specifications - Output operation | Light-ON / Dark-ON selectable |
| Specifications - External input | Input time calibration: 35 ms or more ON, 35 ms or more OFFLaser emission stop: 2 ms or more ON, 20 ms or more OFFShort-circuit current NPN: 1 mA or less/PNP: 2 mA or less |
| Environmental resistance - Enclosure rating | IP68 (IEC60529), IP69K (DIN40050-9), NEMA 4X, 6P, 13 (NEMA250), ECOLAB*3, Diversey*3 |
| Environmental resistance - Insulation resistance | 20 MΩ or more (500 VDC) |
| Environmental resistance - Ambient light | Incandescent lamp: 2,000 lux or lessSunlight: 4,000 lux or less*4 |
| Environmental resistance - Ambient temperature | -10 to +50 °C 14 to 122 °F (No freezing) |
| Environmental resistance - Relative humidity | 35 to 85 % RH (No condensation) |
| Environmental resistance - Storage temperature | -25 to +75 °C -13 to 167 °F (No freezing) |
| Environmental resistance - Withstand voltage | 1,000 VAC, 50/60 Hz, 1 min |
| Environmental resistance - Vibration resistance | 10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions |
| Environmental resistance - Shock resistance | 1,000 m/s2, 6 times in each of the X, Y, and Z directions |
| Material | Case: SUS316L, Display: PES, Lens cover: PMMA with scratch-resistant coating, Packing/Connector ring: FKM |
| Accompanying items | Instruction Manual,Certification/Identification label (FDA) |
| Weight | Approx. 55 g |
