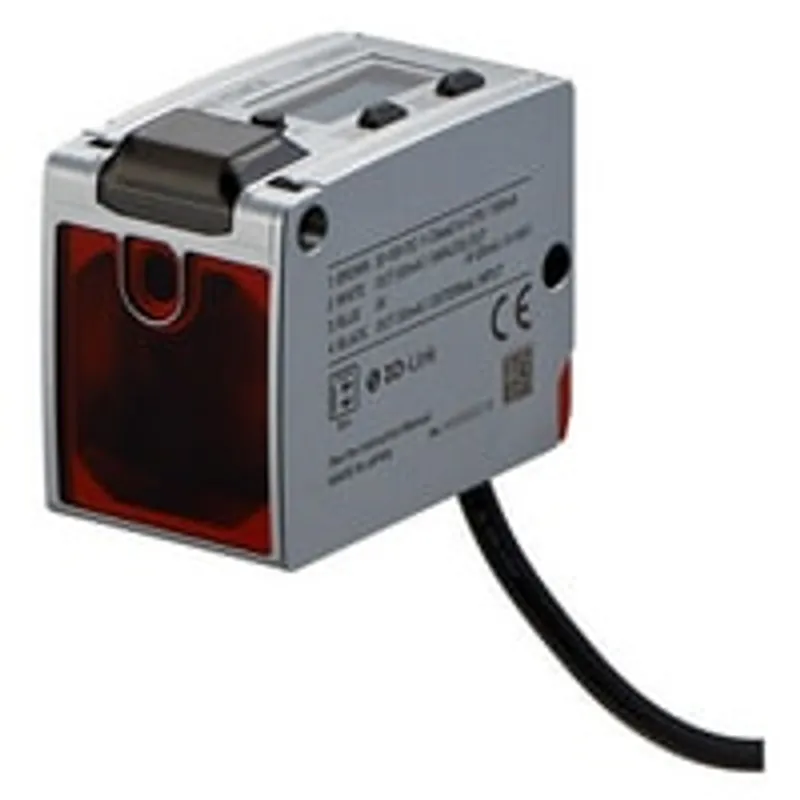

Keyence LR-TB5000CL

Name: Keyence LR-TB5000CL
Brand: Keyence
SKU: LR-TB5000CL

MPN: LR-TB5000CL · Brand: Keyence

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	All - Purpose Laser Sensor
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.16 kg

Shipping & availability

When can LR-TB5000CL be shipped?

LR-TB5000CL is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up LR-TB5000CL in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for LR-TB5000CL and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LR-TB5000CL, subject to availability and destination.

Detection distance 5 m, Cable with connector M12, Laser Class 1. LR-TB5000CL. Series: All - Purpose Laser Sensor. Series code: LR-T series

Specifications

Model Name	Detection distance 5 m, Cable with connector M12, Laser Class 1
Model Code	LR-TB5000CL
Series Title	All - Purpose Laser Sensor
Series Code	LR-T series
Data Sheet URL	https://www.keyence.com/download/download/confirmation/?dlSeriesId=WS_75381&dlModelId=PM_243B5CL&dlSiteId=1&dlLanguageId=en-US&dlLangType=en-US
CAD URL	https://www.keyence.com/products/sensor/photoelectric/lr-t/downloads/?mode=cd&modelId=PM_243B5CL
Manuals URL	https://www.keyence.com/products/sensor/photoelectric/lr-t/downloads/?mode=ma&modelId=PM_243B5CL
Model	LR-TB5000CL
Type	Cable with connector M12
Detectable distance	60 to 5000 mm 2.36" to 196.85"*1
Spot diameter	Variable(use a spot diameter of 40 mm 1.57" or less)
Light source - Type	Red laser (660 nm)
Light source - Laser class	Class 1 laser product(IEC60825-1,FDA (CDRH) Part1040.10*2)
Mutual interference prevention function	4 units (when using the interference prevention function)
Timer	OFF/OFF delay/ON delay/One-shot
Response time	2 ms/20 ms/50 ms/200 ms/2000 msselectable
I/O - Control output	NPN open collector/PNP open collector selectable30 VDC or less, 50 mA or less, residual voltage: 2 V or less,N.O./N.C. selectable34
I/O - Analog output	Current output/Voltage output selectableCurrent output: 4 to 20 mA with a max. load resistance of 500 ΩVoltage output: 0 to 10 V with an external load resistance of 5 kΩ or more34
Protection circuit	Protection against reverse power connection, power supply surges, output overcurrent, reverse output connection, and output surge
Power voltage	20 to 30 VDC, including 10% ripple (P-P), Class 2 or LPS
Current consumption	50 mA or less (without load)*5
Environmental resistance - Enclosure rating	IP65/IP67 (IEC60529)
Environmental resistance - Ambient light	Incandescent lamp/Sunlight: 10,0000 lux or less
Environmental resistance - Ambient temperature	-20 to +55 °C -4 to 131 °F (No freezing)
Environmental resistance - Relative humidity	35 to 85 % RH (No condensation)
Environmental resistance - Vibration resistance	10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions
Environmental resistance - Shock resistance	1,000 m/s2, 6 times in each of the X, Y, and Z directions
Material	Case: Zinc die cast (Nickel chrome plating),Indicator cover and buttons: PES,Lens cover and display: PMMA (scratch-resistant coating specifications),Cable bushing: PBT,Cable: PVC,M12 connector: TPE, PBT, Nickel-plated brass
Accompanying items	Instruction manual
Weight	Approx. 160 g
