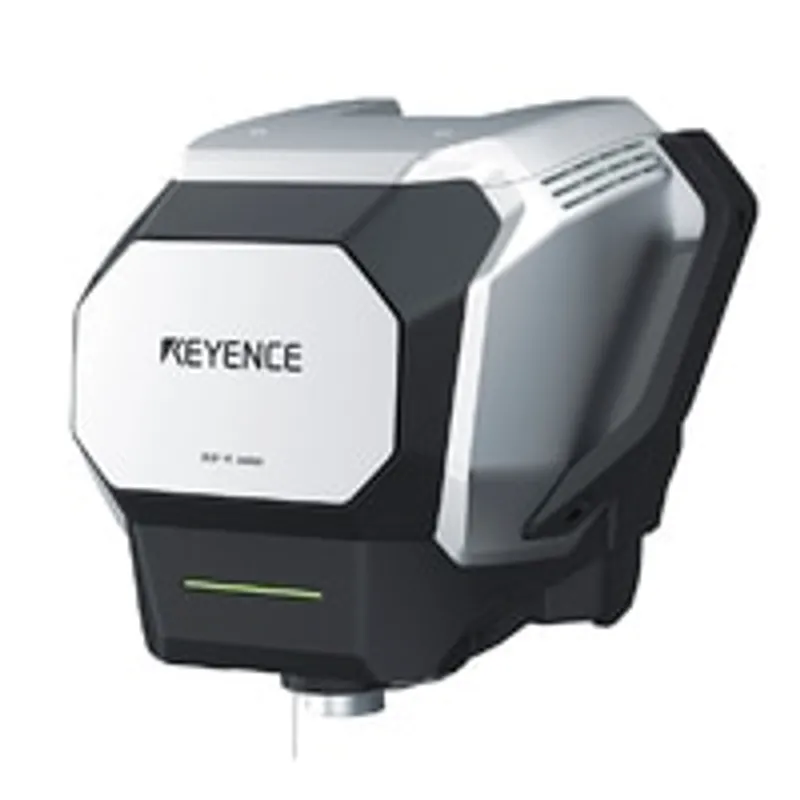

Keyence LM-XC100TL2

Image Dimension Measurement System

MPN: LM-XC100TL2
Category: Image Dimension Measurement System

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Keyence parts? We buy surplus →

What is the Keyence LM-XC100TL2?

High-Accuracy LM Head. LM-XC100TL2. Series: Image Dimension Measurement System. Series code: IM-X1000 series

Specifications

Model Name	High-Accuracy LM Head
Model Code	LM-XC100TL2
Series Title	Image Dimension Measurement System
Series Code	IM-X1000 series
Data Sheet URL	https://www.keyence.com/download/download/confirmation/?dlSeriesId=WS_157182&dlModelId=PM_28L1TL2&dlSiteId=1&dlLanguageId=en-US&dlLangType=en-US
Model	LM-XC100TL2
Type	Head
Image measurement - Field of view	25 0.98" × 25 0.98"
Image measurement	6 0.24" × 6 0.24"
Image measurement - Minimum display unit	0.1 μm
Image measurement - Repeatability	0.5 μm
Image measurement - Measurement accuracy	1.8 µm*1
Laser height - Reference distance	15 mm 0.59"
Laser height - Repeatability	σ ≦ 0.45 µm
Laser height - Spot diameter	ø10 µm
Laser height - Linearity	±0.35 μm*3
Laser height - Laser class	Class 1
Touch probe - Repeatability	±1 μm
Touch probe - Measuring force	0.015 N*4
AF height	±2 μm
Illumination system - Transparent	Green LED, telecentric transparent illumination
Illumination system - Coaxial	Color LED, white LED, four-division multi-angle illumination (electric)
Illumination system	Green LED, slit ring (directivity) lateral illumination (electric)
Environmental resistance	+10 to 35°C +50°F to 95°F
Weight	11 kg 24.25 lb
