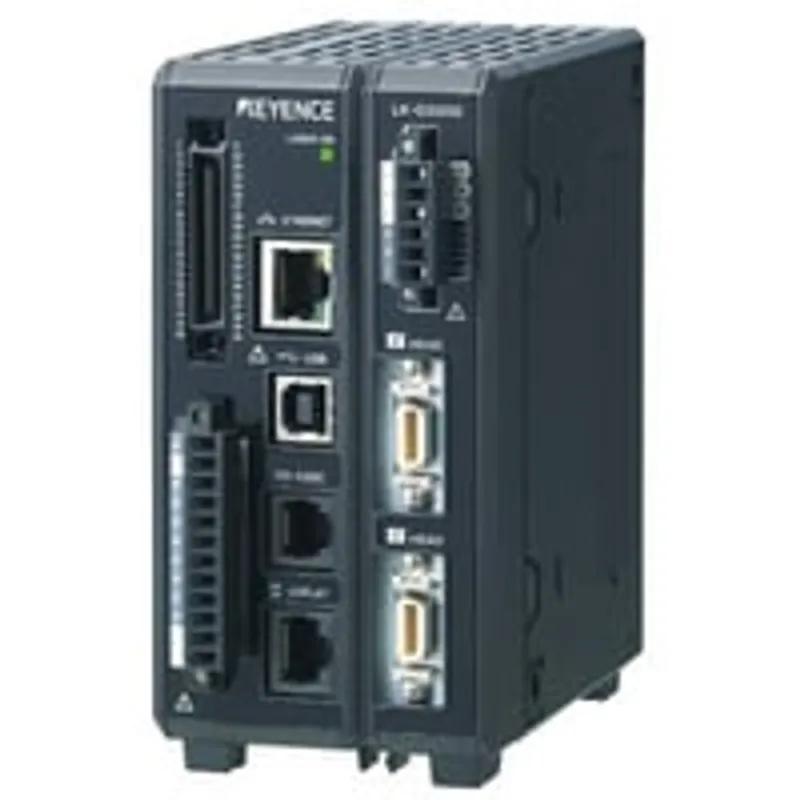

Keyence LK-G5001

Name: Keyence LK-G5001
Brand: Keyence
SKU: LK-G5001

MPN: LK-G5001 · Brand: Keyence

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Ultra High-Speed/High-Accuracy Laser Displacement Sensor
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.6 kg

Shipping & availability

When can LK-G5001 be shipped?

LK-G5001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up LK-G5001 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for LK-G5001 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LK-G5001, subject to availability and destination.

Controller. LK-G5001. Series: Ultra High-Speed/High-Accuracy Laser Displacement Sensor. Series code: LK-G5000 series

Specifications

Model Name	Controller
Model Code	LK-G5001
Series Title	Ultra High-Speed/High-Accuracy Laser Displacement Sensor
Series Code	LK-G5000 series
Data Sheet URL	https://www.keyence.com/download/download/confirmation/?dlSeriesId=WS_SR45581&dlModelId=PM_13G5001&dlSiteId=1&dlLanguageId=en-US&dlLangType=en-US
CAD URL	https://www.keyence.com/products/measure/laser-1d/lk-g5000/downloads/?mode=cd&modelId=PM_13G5001
Manuals URL	https://www.keyence.com/products/measure/laser-1d/lk-g5000/downloads/?mode=ma&modelId=PM_13G5001
Model	LK-G5001
Type	Separate type Main controller
Sensor head compatibility	Compatible
No. of connectable sensor heads	2
Display - Minimum display unit	0.001 µm
Display - Display range	±999.999 µm to ±9999.99 mm (7 settings selectable)
Display - Display cycle	Approx 10 times/sec.
Display interface - Display port	Either the display unit (LK-HD500) or dedicated touch panel (LK-HD1001) can be connected
Display interface - LED indicator	LASER ON
Terminal block - Analog output voltage	±10 V output, Output impedance: 100 Ω*1
Terminal block - Analog current output	4 to 20 mA, Maximum load resistance: 350 Ω*1
Terminal block - No. of analog outputs	2*1
Terminal block - TIMING 1 input	Non-voltage input*2
Terminal block - Laser remote input	Non-voltage input*1
Terminal block - Alarm output	NPN open-collector output*1
Expansion connector - TIMING input	Non-voltage input*1
Expansion connector - Alarm output	NPN open-collector output*1
RS-232C interface	Baud rate: 9600 to 115200 bpsData length: 8 bits Stop bit length: 1 bit Parity: None/even/odd
USB interface	USB 2.0 Hi-Speed compliant*3
Ethernet interface	100Base-TX/10Base-T*4
EtherNet/IP™interface	Cyclic communication (implicit messaging)Message communication (explicit messaging) : UCMM and Class3 Number of connections: 32 Complies with conformance test version CT14*5
PLC-Link	The following PLCs are supported:Mitsubishi Electric: MELSEC iQ-R Series, iQ-F Series, Q Series, L Series, FX SeriesEtherNet/IP™, CC-Link, and DeviceNet® cannot be used in conjunction with PLC-Link
Head expansion unit connector	Up to 10 head expansion units can be connected to one main controller
Expansion unit connector	Either of the CC-Link unit (LK-CC100) or DeviceNet® unit (LK-DN100) can be connected
Power supply - Power supply voltage	24 VDC ±10%
Power supply - Maximum current consumption	0.6 A or less with 1 head/3.5 A or less with 12 heads
Environmental resistance - Ambient temperature	When one or less head expansion unit is connected: 0 to +50 °C 32 to 122 °F.When two or more head expansion units are connected: 0 to +40 °C 32 to 104 °F.
Environmental resistance - Relative humidity	35 to 85 % RH (No condensation)
Weight	Approx. 600 g
