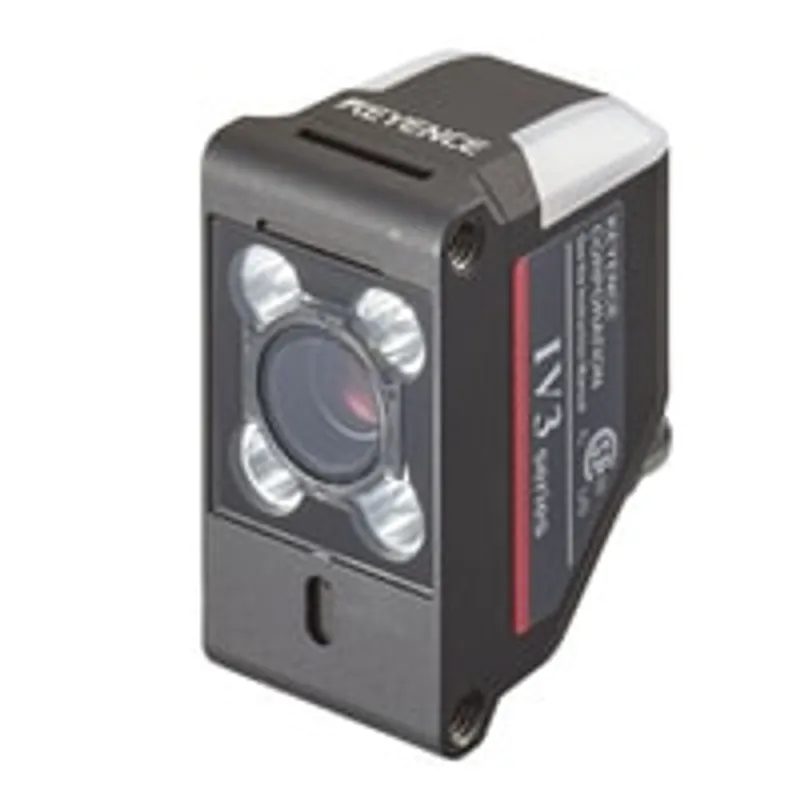

Keyence IV3-G500CA
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Vision Sensor with Built-in AI |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.08 kg |
Shipping & availability
When can IV3-G500CA be shipped?
IV3-G500CA is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up IV3-G500CA in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for IV3-G500CA and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for IV3-G500CA, subject to availability and destination.
Compact model sensor head Standard model Color AF type. IV3-G500CA. Series: Vision Sensor with Built-in AI. Series code: IV3 series
Specifications
Specifications
| Model Name | Compact model sensor head Standard model Color AF type |
| Model Code | IV3-G500CA |
| Series Title | Vision Sensor with Built-in AI |
| Series Code | IV3 series |
| Data Sheet URL | https://www.keyence.com/download/download/confirmation/?dlSeriesId=WS_157129&dlModelId=PM_243G5CA&dlSiteId=1&dlLanguageId=en-US&dlLangType=en-US |
| CAD URL | https://www.keyence.com/products/sensor/vision-sensor/iv3/downloads/?mode=cd&modelId=PM_243G5CA |
| Manuals URL | https://www.keyence.com/products/sensor/vision-sensor/iv3/downloads/?mode=ma&modelId=PM_243G5CA |
| Model | IV3-G500CA |
| Type | Standard |
| Installed distance | 50 mm 1.97" or more *1 |
| Field of view | Installed distance 50 mm 1.97": 22 (H) × 16 (V) mm 0.87" (H) × 0.63" (V)Installed distance 3000 mm 118.11": 1184 (H) × 888 (V) mm 46.61" (H) × 34.96" (V)(typical example) |
| Image receiving element - Type | 1/2.9 inch color CMOS |
| Image receiving element - Number of pixels | 1280 (H) × 960 (V) |
| Focus adjustment | Auto *2 |
| Exposure time | 12 μs to 9 ms |
| Lights - Illumination | White LED |
| Lights - Lighting method | Pulse /continuous lighting is switchable. |
| Indicators | 2 (the same display details for both indicators) |
| Environmental resistance - Enclosure rating | IP67 *3 |
| Environmental resistance - Ambient temperature | 0 to +50°C 32 to 122°F (No freezing) *4 |
| Environmental resistance - Relative humidity | 35 to 85% RH (No condensation) |
| Environmental resistance - Vibration resistance | 10 to 55 Hz; double amplitude 1.5 mm 0.06"; 2 hours in each of the X, Y, and Z directions *5 |
| Environmental resistance - Shock resistance | 500 m/s2 1640'/s2, 3 times in each of the 6 directions *5 |
| Material | Main unit case: Zinc die-casting, Front cover: Acrylic, Operation indicator cover: TPU |
| Weight | Approx. 75 g 2.65 oz (without the AI Lighting unit)Approx. 225 g 7.94 oz (with the AI Lighting unit) |
