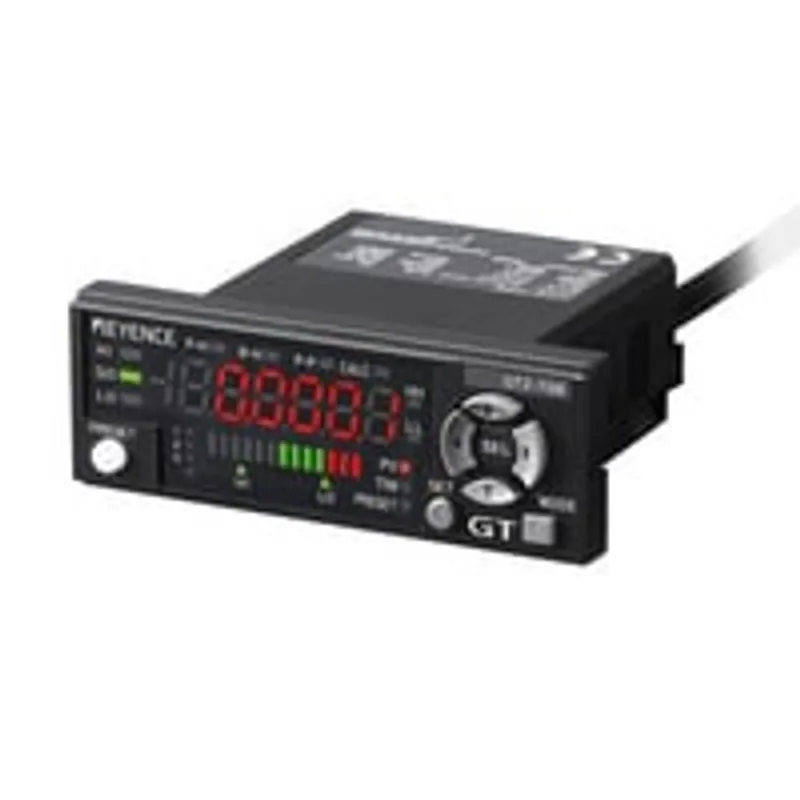

Keyence GT2-76P
MPN: GT2-76P · Brand: Keyence
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | High-Accuracy Digital Contact Sensor |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.14 kg |
Shipping & availability
When can GT2-76P be shipped?
GT2-76P is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up GT2-76P in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for GT2-76P and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GT2-76P, subject to availability and destination.
Amplifier Unit, Panel Mount Type, PNP. GT2-76P. Series: High-Accuracy Digital Contact Sensor. Series code: GT2 series
Specifications
Specifications
| Model Name | Amplifier Unit, Panel Mount Type, PNP |
| Model Code | GT2-76P |
| Series Title | High-Accuracy Digital Contact Sensor |
| Series Code | GT2 series |
| Data Sheet URL | https://www.keyence.com/download/download/confirmation/?dlSeriesId=WS_SR_gt2&dlModelId=PM_189276P&dlSiteId=1&dlLanguageId=en-US&dlLangType=en-US |
| CAD URL | https://www.keyence.com/products/sensor/positioning/gt2/downloads/?mode=cd&modelId=PM_189276P |
| Manuals URL | https://www.keyence.com/products/sensor/positioning/gt2/downloads/?mode=ma&modelId=PM_189276P |
| Model | GT2-76P |
| Mounting method | Panel mount |
| Output | PNP output |
| Main unit/expansion unit | Expansion unit*1 |
| Power supply voltage | 10 to 30 VDC, including 10 % ripple (P-P), Class 2*1 |
| Power consumption - Normal | 2,200 mW max. (30 V, 73.3 mA max.) |
| Power consumption - Power saving (Eco) | 1,700 mW max. (30 V, 56.7 mA max.) |
| Display power - Measured value display | 6 + 1/2-digit 7-segment LED (red) |
| Display power - Other displays | 2-color, 13-level bar LED display (red, green), indicators (red, green) |
| Display range | -199.999.9 to 199.999.9 |
| Display resolution | 0.1 μm 0.004 Mil |
| Control input | No-voltage input |
| Control output | PNP open collector, 30 V 50 mA or less, residual voltage 1 V or less*1*2 |
| Response time | hsp(3)/5/10/100/500/1,000 ms(When using GT2-Pxxx, hsp(12)/20/40/400/2,000/4,000 ms) |
| Environmental resistance - Ambient temperature | -10 to +50 °C 14 to 122 °F (No freezing) |
| Environmental resistance - Relative humidity | 35 to 85 % RH (No condensation) |
| Environmental resistance - Vibration resistance | 10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions |
| Material | Main body case: Polycarbonate, Key top: Polyacetal, Front sheet: PET, Cable: PVC |
| Power supply/I/O cable | 12-core connector connection (Connecting cable included) |
| Weight | Approx. 140 g (including panel mounting bracket, protective front cover and power cable) |
