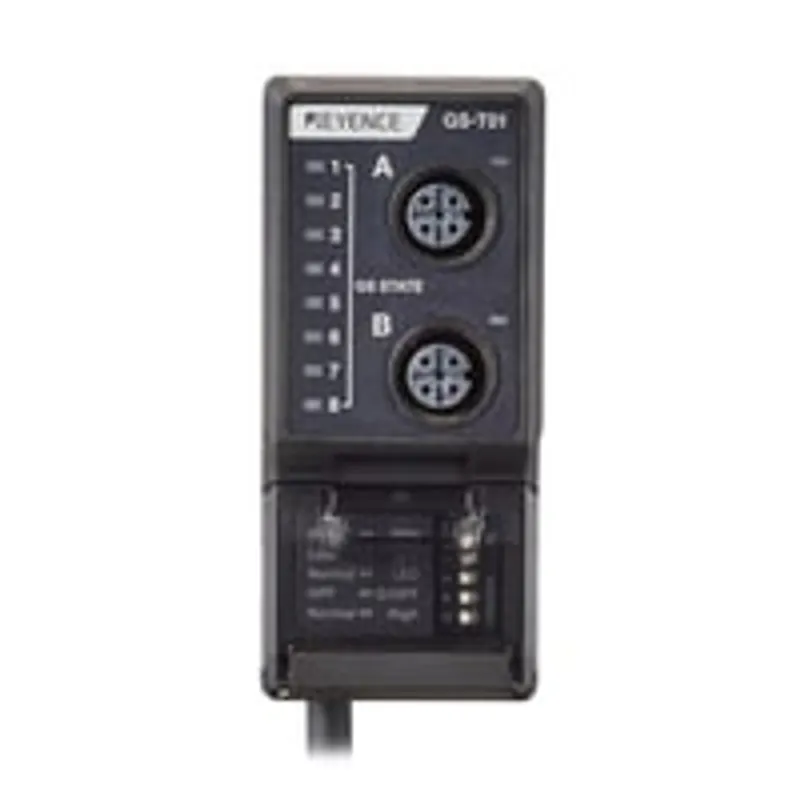

Keyence GS-T01
MPN: GS-T01 · Brand: Keyence
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Safety Interlock Switches |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.29 kg |
Shipping & availability
When can GS-T01 be shipped?
GS-T01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up GS-T01 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for GS-T01 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GS-T01, subject to availability and destination.
Wiring saving unit. GS-T01. Series: Safety Interlock Switches. Series code: GS-M series
Specifications
Specifications
| Model Name | Wiring saving unit |
| Model Code | GS-T01 |
| Series Title | Safety Interlock Switches |
| Series Code | GS-M series |
| Data Sheet URL | https://www.keyence.com/download/download/confirmation/?dlSeriesId=WS_157143&dlModelId=PM_262T01&dlSiteId=1&dlLanguageId=en-US&dlLangType=en-US |
| CAD URL | https://www.keyence.com/products/safety/safety-interlock-switches/gs-m/downloads/?mode=cd&modelId=PM_262T01 |
| Manuals URL | https://www.keyence.com/products/safety/safety-interlock-switches/gs-m/downloads/?mode=ma&modelId=PM_262T01 |
| Model | GS-T01 |
| Response time (ms) - Lock / Unlock | Response time of GS-M/GS + 110 ms + 70 ms × (number of cascaded unit -1)*1 |
| Response time (ms) - OSSD | Response time of GS-M/GS *2 |
| Response time (ms) - AUX | Response time of GS-M/GS + 60 ms + 30 ms × (number of cascaded unit -1) |
| AUX (Non-safety related output) - Output | Transistor output × 8 |
| AUX (Non-safety related output) - Max. load current | 20 mA |
| AUX (Non-safety related output) - Residual voltage (during ON) | Max. 2.5 V (with a cable length of 2 m 6.6') |
| Lock control input | Approx. 2.5 mA×2 |
| Protection circuit | Reverse current protection, short-circuit protection and surge protection |
| Power supply - Power voltage | 24 V DC ±20 % (Ripple P-P 10% or less, Class2) |
| Power supply - Power consumption | 0.8 W |
| Environmental resistance - Operating ambient temperature | -20 to 55°C -4°F to 131°F (No freezing) |
| Environmental resistance - Operating relative humidity | 5% to 95%RH |
| Environmental resistance - Storage temperature | -25 to 70°C -13°F to 158°F(No freezing) |
| Environmental resistance - Storage relative humidity | 5% to 95%RH |
| Environmental resistance - Vibration resistance | 10 to 55 Hz, Double amplitude 2.0 mm 0.08", 5 minutes in each of the X, Y, and Z directions (IEC 60947-5-3) |
| Environmental resistance - Shock resistance | 30 G in X, Y, Z directions 6 times each axis (IEC 60947-5-3) |
| Material | Case: PBT Cable:PVC |
| Weight | Approx. 290 g 10.23 oz |
