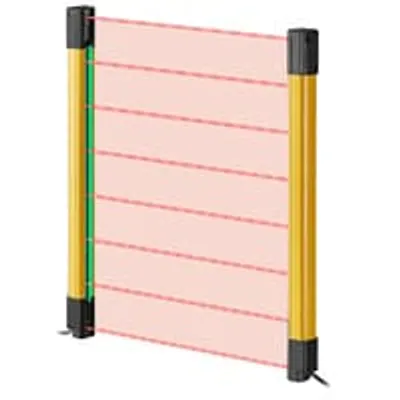

Keyence GL-VM44LP

Main Unit, Body-protection Type, 44 Optical Axes PNP. . Series: Safety Light Curtain. Series code: GL-V series

MPN: GL-VM44LP
Category: Safety Light Curtain

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Keyence GL-VM44LP?

Main Unit, Body-protection Type, 44 Optical Axes PNP. GL-VM44LP. Series: Safety Light Curtain. Series code: GL-V series

Specifications

Model Name	Main Unit, Body-protection Type, 44 Optical Axes PNP
Model Code	GL-VM44LP
Series Title	Safety Light Curtain
Series Code	GL-V series
Data Sheet URL	https://www.keyence.com/download/download/confirmation/?dlSeriesId=WS_157173&dlModelId=PM_24M44LP&dlSiteId=1&dlLanguageId=en-US&dlLangType=en-US
CAD URL	https://www.keyence.com/products/safety/light-curtain/gl-v/downloads/?mode=cd&modelId=PM_24M44LP
Manuals URL	https://www.keyence.com/products/safety/light-curtain/gl-v/downloads/?mode=ma&modelId=PM_24M44LP
Model	GL-VM44LP
Beam axis spacing/Lens diameter	40 mm 1.57": ø5 ø0.197"
Number of beam axes	44
Total length	1760 mm 69.29"
Detection height	1720 mm 67.72"
Protection height	1805 mm 71.06"
Minimum detectable object size	ø45 mm ø1.77" *1
Detecting distance	0.3 to 15 m 1.0' to 49.2' *2
Effective angular aperture	Up to ±2.5° (3 m 9.8' or above)
Light source	Infrared LED (850 nm)Exempt Group (IEC62471)
Detection mode	ON when all beam axes received
Synchronization method	Optical synchronization
Interference prevention function	Interference prevention up to 2 units by series connection and switch setting
Control output (OSSD output) - Output type	Transistor output ×2 (PNP/NPN)
Control output (OSSD output) - Maximum load current	150 mA or less
Control output (OSSD output) - Residual voltage (when ON)	Up to 2.5 V (with 5 m 16.4' cable)
Control output (OSSD output) - OFF voltage	Up to 2.0 V (with 5 m 16.4' cable)
Control output (OSSD output) - Leakage current	Up to 0.8 mA
Control output (OSSD output) - Maximum load capacity	0.8 μF
Control output (OSSD output) - Load wiring resistance	Up to 2.5Ω
Protection circuit	Power supply reverse connection protection, short circuit protection for each output, surge protection for each output
Approved standards - EMC	IEC/EN61496-1, UL61496-1
Approved standards	EN55011 Class A, FCC Part15B Class A, ICES-003 Class A
Approved standards - Safety	IEC61496-1/EN61496-1, UL61496-1 (Type 4 ESPE)IEC61496-2/EN61496-2, UL61496-2 (Type 4 AOPD)EN ISO13849-1 (Category 4, PL e)IEC61508/EN61508 (SIL3)UL60947-1 / CSA C22.2 No. 60947-1UL1998
Response time (OSSD) - With channel 0	5.6
Response time (OSSD)	49.1 *3
Response time (OSSD) - With channel A or B	16.4
Inputs	Short circuit current: Approx. 3 mA
Power supply - Power voltage	24 VDC -20/+25% 10% ripple (P-P) or less, class 2
Power supply - Current consumption (at maximum) (mA) Indicator : Standard / Eco/ External control	166 *5
Power supply	181 *5
Power supply - Current consumption (at maximum) (mA) Indicator : OFF	56 *5
Environmental resistance - Enclosure rating	IP65/IP67 (IEC60529)
Environmental resistance - Ambient light	Incandescent lamp: 3000 lux or less, sunlight: 20,000 lux or less
Environmental resistance - Operating ambient temperature	-30 to +55°C -22 to +131°F (no freezing) *6
Environmental resistance - Operating relative humidity	Up to 95%RH (no condensation)
Environmental resistance - Storage temperature	-30 to +70°C -22 to +158°F (no freezing)
Environmental resistance - Storage relative humidity	Up to 95% RH
Environmental resistance - Overvoltage category	ll
Environmental resistance - Vibration resistance	5 to 150 Hz 1G 10 cycles each in X, Y, and Z axes
Environmental resistance - Shock resistance	15 G 6 ms pulses 100 times each in X, Y, and Z axes
Material - Main unit case	Aluminum alloy
Material - Upper case/lower case	PPS (GF40%)
Material - Front cover	Polycarbonate, SUS304
Weight - Transmitter	1140 g 40.24 oz
Weight - Receiver	1160 g 40.94 oz
Weight - Total	2300 g 81.19 oz
