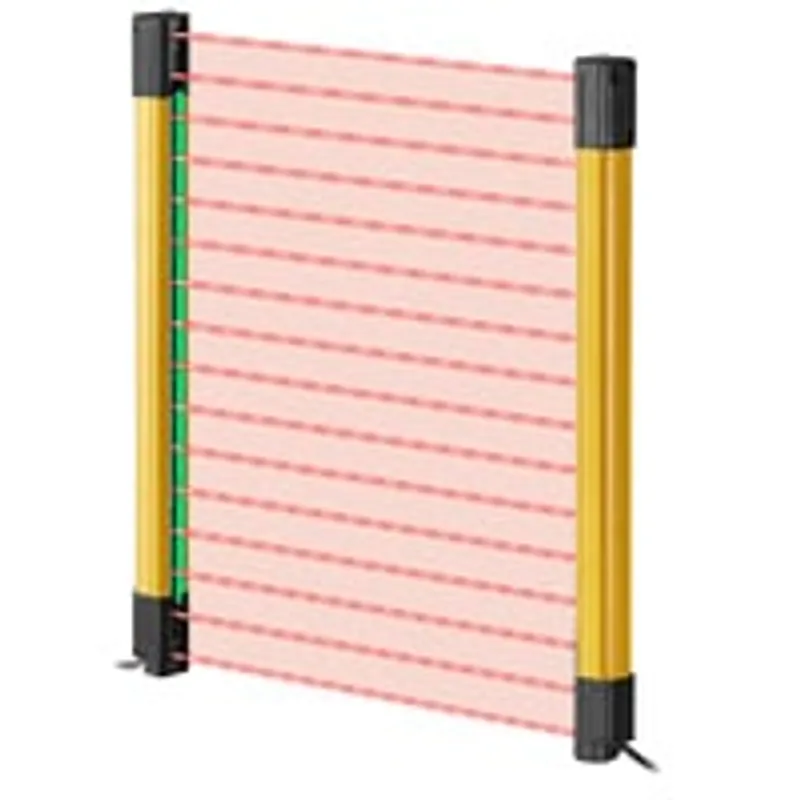

Keyence GL-VM104HP
MPN: GL-VM104HP · Brand: Keyence
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Safety Light Curtain |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can GL-VM104HP be shipped?
GL-VM104HP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up GL-VM104HP in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for GL-VM104HP and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GL-VM104HP, subject to availability and destination.
Main Unit, Hand-protection Type, 104 Optical Axes PNP. GL-VM104HP. Series: Safety Light Curtain. Series code: GL-V series
Specifications
Specifications
| Model Name | Main Unit, Hand-protection Type, 104 Optical Axes PNP |
| Model Code | GL-VM104HP |
| Series Title | Safety Light Curtain |
| Series Code | GL-V series |
| Data Sheet URL | https://www.keyence.com/download/download/confirmation/?dlSeriesId=WS_157173&dlModelId=PM_24M04HP&dlSiteId=1&dlLanguageId=en-US&dlLangType=en-US |
| CAD URL | https://www.keyence.com/products/safety/light-curtain/gl-v/downloads/?mode=cd&modelId=PM_24M04HP |
| Manuals URL | https://www.keyence.com/products/safety/light-curtain/gl-v/downloads/?mode=ma&modelId=PM_24M04HP |
| Model | GL-VM104HP |
| Beam axis spacing/Lens diameter | 20 mm 0.79": ø5 ø0.197" |
| Number of beam axes | 104 |
| Total length | 2080 mm 81.89" |
| Detection height | 2060 mm 81.10" |
| Protection height | 2105 mm 82.87" |
| Minimum detectable object size | ø25 mm ø0.98" *1 |
| Detecting distance | 0.3 to 15 m 1.0' to 49.2' *2 |
| Effective angular aperture | Up to ±2.5° (3 m 9.8' or above) |
| Light source | Infrared LED (850 nm)Exempt Group (IEC62471) |
| Detection mode | ON when all beam axes received |
| Synchronization method | Optical synchronization |
| Interference prevention function | Interference prevention up to 2 units by series connection and switch setting |
| Control output (OSSD output) - Output type | Transistor output ×2 (PNP/NPN) |
| Control output (OSSD output) - Maximum load current | 150 mA or less |
| Control output (OSSD output) - Residual voltage (when ON) | Up to 2.5 V (with 5 m 16.4' cable) |
| Control output (OSSD output) - OFF voltage | Up to 2.0 V (with 5 m 16.4' cable) |
| Control output (OSSD output) - Leakage current | Up to 0.8 mA |
| Control output (OSSD output) - Maximum load capacity | 0.8 μF |
| Control output (OSSD output) - Load wiring resistance | Up to 2.5Ω |
| Protection circuit | Power supply reverse connection protection, short circuit protection for each output, surge protection for each output |
| Approved standards - EMC | IEC/EN61496-1, UL61496-1 |
| Approved standards | EN55011 Class A, FCC Part15B Class A, ICES-003 Class A |
| Approved standards - Safety | IEC61496-1/EN61496-1, UL61496-1 (Type 4 ESPE)IEC61496-2/EN61496-2, UL61496-2 (Type 4 AOPD)EN ISO13849-1 (Category 4, PL e)IEC61508/EN61508 (SIL3)UL60947-1 / CSA C22.2 No. 60947-1UL1998 |
| Response time (OSSD) - With channel 0 | 8.2 |
| Response time (OSSD) | 52.1 *3 |
| Response time (OSSD) - With channel A or B | 26.5 |
| Inputs | Short circuit current: Approx. 3 mA |
| Power supply - Power voltage | 24 VDC -20/+25% 10% ripple (P-P) or less, class 2 |
| Power supply - Current consumption (at maximum) (mA) Indicator : Standard / Eco/ External control | 185 *5 |
| Power supply | 201 *5 |
| Power supply - Current consumption (at maximum) (mA) Indicator : OFF | 61 *5 |
| Environmental resistance - Enclosure rating | IP65/IP67 (IEC60529) |
| Environmental resistance - Ambient light | Incandescent lamp: 3000 lux or less, sunlight: 20,000 lux or less |
| Environmental resistance - Operating ambient temperature | -30 to +55°C -22 to +131°F (no freezing) *6 |
| Environmental resistance - Operating relative humidity | Up to 95%RH (no condensation) |
| Environmental resistance - Storage temperature | -30 to +70°C -22 to +158°F (no freezing) |
| Environmental resistance - Storage relative humidity | Up to 95% RH |
| Environmental resistance - Overvoltage category | ll |
| Environmental resistance - Vibration resistance | 5 to 150 Hz 1G 10 cycles each in X, Y, and Z axes |
| Environmental resistance - Shock resistance | 15 G 6 ms pulses 100 times each in X, Y, and Z axes |
| Material - Main unit case | Aluminum alloy |
| Material - Upper case/lower case | PPS (GF40%) |
| Material - Front cover | Polycarbonate, SUS304 |
| Weight - Transmitter | 1350 g 47.65 oz |
| Weight - Receiver | 1370 g 48.36 oz |
| Weight - Total | 2720 g 96.01 oz |
