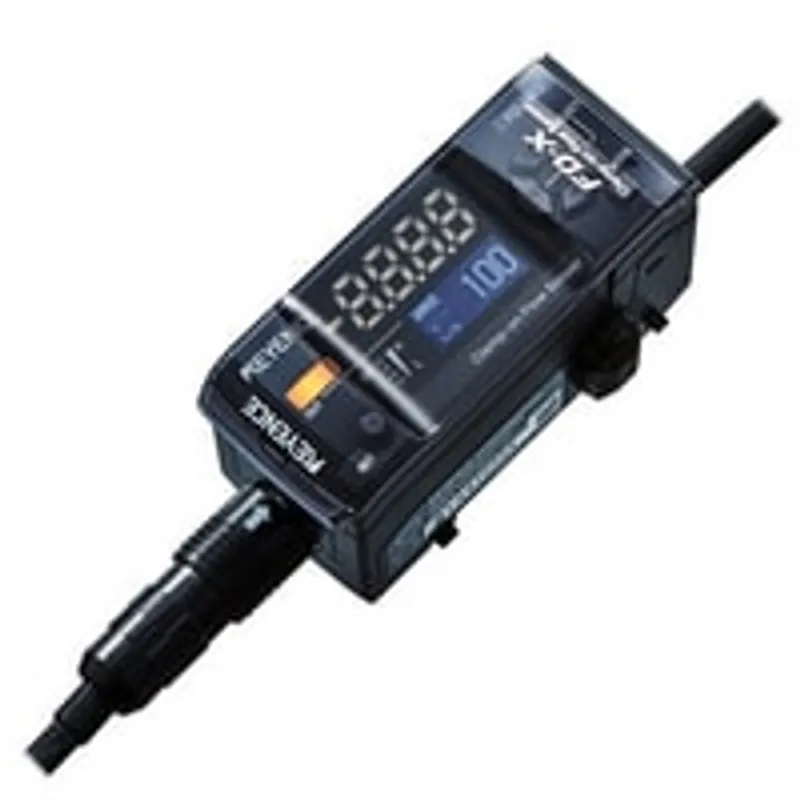

Keyence FD-XA2

Controller DIN rail type, expansion unit. . Series: Clamp-on Micro Flow Sensor. Series code: FD-X series

MPN: FD-XA2
Category: Clamp-on Micro Flow Sensor

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Keyence FD-XA2?

Controller DIN rail type, expansion unit. FD-XA2. Series: Clamp-on Micro Flow Sensor. Series code: FD-X series

Specifications

Model Name	Controller DIN rail type, expansion unit
Model Code	FD-XA2
Series Title	Clamp-on Micro Flow Sensor
Series Code	FD-X series
Data Sheet URL	https://www.keyence.com/download/download/confirmation/?dlSeriesId=WS_SR57334&dlModelId=PM_160XA2&dlSiteId=1&dlLanguageId=en-US&dlLangType=en-US
CAD URL	https://www.keyence.com/products/process/flow/fd-x/downloads/?mode=cd&modelId=PM_160XA2
Manuals URL	https://www.keyence.com/products/process/flow/fd-x/downloads/?mode=ma&modelId=PM_160XA2
Model	FD-XA2
Type	DIN rail type, expansion unit
Display method	Output indicator, 4-digit 7 segment display, OLED, Stability level display
Display refresh frequency	Instantaneous flow: approx. 5 times/second, Discharge amount/Accumulated flow approx. 30 times/second
Response time	50 ms/100 ms/500 ms/1 s/2.5 s/5 s/10 s/30 s/60 s (selectable, default: 500 ms)
Integration data storage interval	Written to the memory every 10 seconds
Memory back up	EEPROM (data storage period: more than 10 years, number of data rewritable times: 1 million times or more) *1
Detection mode - ch.1	Instantaneous flow rate mode/Area mode/Pulse output (+) mode/Integrated flow mode/Shot mode (selectable)
Detection mode - ch.2	Instantaneous flow rate mode/Area mode/Pulse output (-) mode/Shot mode/Error output mode/Bubble alert mode/Error + bubble alert mode (selectable)
Input/output - Output	NPN/PNP setting switchOpen collector output: 30 V or lower, main unit: 50 mA or lower/ch.*2/expansion unit: 20 mA or lower/ch., residual voltage: 2 V or lower
Input/output - Analog output	-
Input/output - External input	Flow rate zero input/shot sampling input/integrated flow reset input/zero shift input (selectable)Short circuit current: NPN 1 mA or lower/PNP 2 mA or lower, input time: 20 ms or longer
Network support	Supports NU series
Unit expansion	Up to 7*3 per main unit
Protection circuit	Power supply reverse connection protection, power surge protection, output short circuit protection, output surge protection
Power supply - Power voltage	20 to 30 VDC including 10 % ripple (P-P) , Class 2
Power supply - Power consumption	185 mA or lower (including the sensor head, excluding the load current)
Environmental resistance - Ambient temperature	-10 to +50 °C (No freezing) 14 to 122 °F
Environmental resistance - Relative humidity	35 % to 85 %RH (No condensation)
Environmental resistance - Vibration resistance	10 - 55 Hz, double amplitude 1.5 mm 0.06 ", 2 hours each for X,Y,Z direction
Environmental resistance - Shock resistance	100 m/s2 (approx. 10 G) 16 ms pulse, 1000 times each for X,Y,Z direction
Material	Main body case/front sheet: PC, Key top: POM, Cable: PVC
Weight	Approx. 180 g
