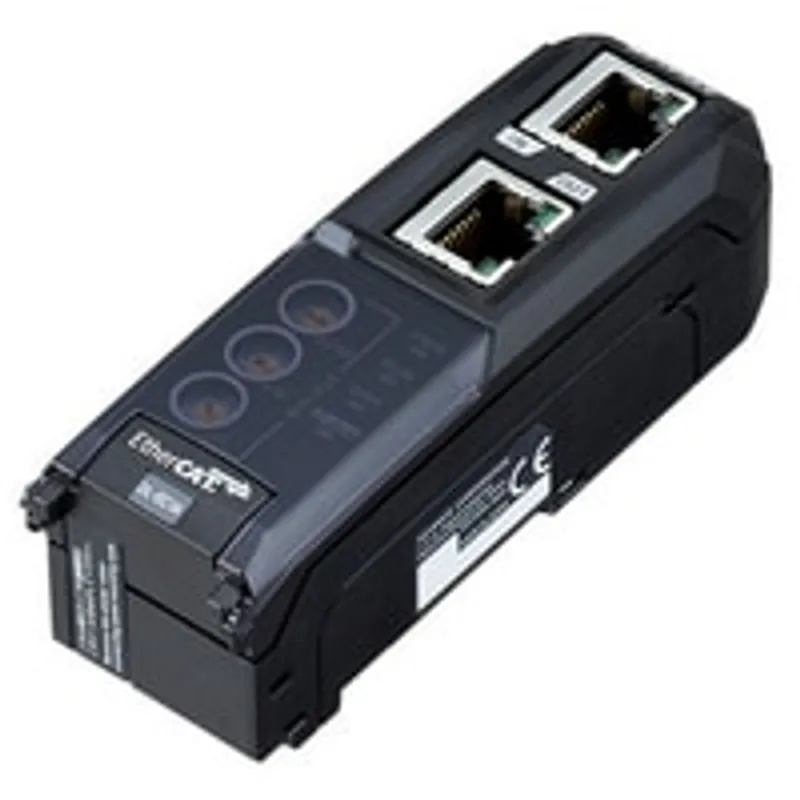

Keyence DL-EC1A

Ethercat supporting communication unit. . Series: Network communication unit. Series code: DL series

MPN: DL-EC1A
Category: Network communication unit

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Keyence DL-EC1A?

Ethercat supporting communication unit. DL-EC1A. Series: Network communication unit. Series code: DL series

Specifications

Model Name	Ethercat supporting communication unit
Model Code	DL-EC1A
Series Title	Network communication unit
Series Code	DL series
Data Sheet URL	https://www.keyence.com/download/download/confirmation/?dlSeriesId=WS_SR48239&dlModelId=PM_195EC1A&dlSiteId=1&dlLanguageId=en-US&dlLangType=en-US
CAD URL	https://www.keyence.com/products/sensor/network-communication/dl/downloads/?mode=cd&modelId=PM_195EC1A
Manuals URL	https://www.keyence.com/products/sensor/network-communication/dl/downloads/?mode=ma&modelId=PM_195EC1A
Model	DL-EC1A
Ethernetspecifications - Compliant standards	IEEE802.3u (100BASE-TX)
Ethernetspecifications - Transmission speed	100 Mbps (100BASE-TX)
Ethernetspecifications - Transmission interface	Category 5e or higher STP cable
Ethernetspecifications - Distance betweennodes	100 m 3937.01'
Ethernetspecifications - Communication port	RJ-45 x 2
EtherCATcommunicationspecifications - Compatible functions	Process data object communication (cyclic communication)Mailbox communication (message communication) CoE compatibleExplicit Device Identification
EtherCATcommunicationspecifications - Conformance testversion	Complies with V2.0.42
Sensorconnectionspecifications - Connectablesensors	Sensor amplifiers with D-bus support*1
Sensorconnectionspecifications - Number ofconnectablesensor units	15 units max.*2
Indicator lamps	Power indicator (PWR): Green LEDRUN indicator (RUN): Green LEDERR indicator (ERR): Red LEDSensor communication indicator (D-bus): 2-color (green/red) LEDLink/activity indicator: Green LED
Power voltage	20 to 30 VDC, including ripple (p-p) of 10 %supplied from the connected sensor amplifiers
Power consumption	2,100 mW or less (at 30 V, 70 mA max.)
Environmental resistance - Pollution degree	2
Environmental resistance - Ambient temperature	-20 to +55 °C -4 to 131 °F (No freezing)
Environmental resistance - Relative humidity	35 to 85 % RH (No condensation)
Environmental resistance - Vibration resistance	10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions
Material	Main unit: Polycarbonate
Weight	Approx. 70 g (including connectors)
