Infineon TZ810N22KOF

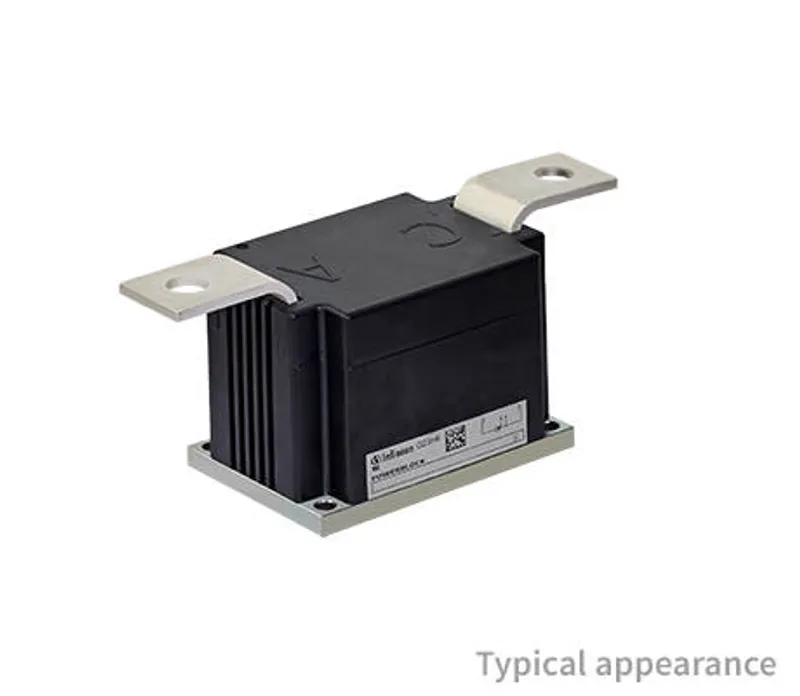

70 mm Single Thyristor Module with 2200 V in pressure contact technology

MPN: TZ810N22KOF
Category: Thyristor & Diode Modules

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Infineon parts? We buy surplus →

What is the Infineon TZ810N22KOF?

Infineon TZ810N22KOF: 70 mm Single Thyristor Module with 2200 V in pressure contact technology. Current Infineon product. PartnerPLC supplies new and surplus Infineon power semiconductors for drive, inverter and power-supply repair — request a quote for price, condition and lead time.

Specifications

(diT/dt)cr [A/µs] (@DIN IEC 747- 6)	200
Configuration	Single SCR Phase Control
Housing	70 mm
IFAVM/TC / ITAVM/TC [A/°C] (@180° el sin)	819/85
IFSM / ITSM [A] (@10ms, Tvj max)	35000
Product Line	Power Block
rT [mΩ] (@Tvj max)	0.17
RthJC [K/W] (@180° el sin)	0.042
Tvj [°C]	125
VDRM / VRRM [V]	2200
VT0 [V] (@Tvj max)	0.82
∫I2dt [A²s · 103] (@10ms, Tvj max)	6125

Ordering codes (OPN)

TZ810N22KOFHPSA2

active and preferred, package BG-PB70AT-1, RoHS

TZ810N22KOF: frequently asked questions

When can TZ810N22KOF be shipped?

TZ810N22KOF is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up TZ810N22KOF in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for TZ810N22KOF and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TZ810N22KOF, subject to availability and destination.
